1SBL171024R8010

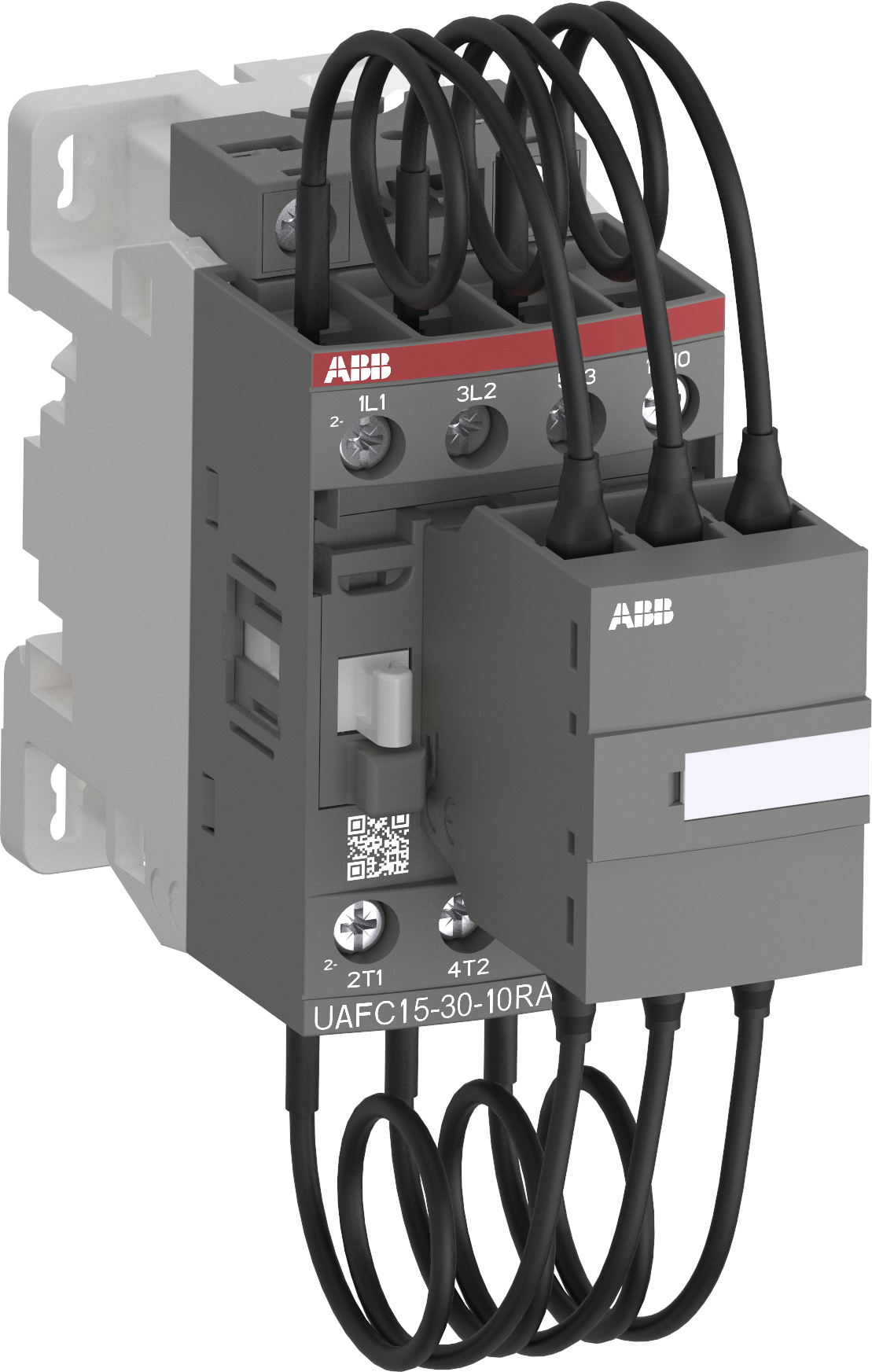

ABB UAFC15-30-10RA-80 (1SBL171024R8010) — The UAFC15-30-10RA-80 is a 3 pole - 690 V IEC or 600 V UL capacitor switching contactor with 1 auxilieary contacts, controlling capacitors up to 15 KVR /400V AC-6b. The contactor can be used for installations in which the peak current up to 200 times…

The UAFC15-30-10RA-80 is a 3 pole - 690 V IEC or 600 V UL capacitor switching contactor with 1 auxilieary contacts, controlling capacitors up to 15 KVR /400V AC-6b. The contactor can be used for installations in which the peak current up to 200 times nominal rms current,with their damping resistors and must be used without additional inductances. The contactor are AC - 220 ... 230 VLT 50Hz and 230 ... 240 VLT 60Hz controlled and can be easily extended with add-on auxiliary contact blocks and an additional wide range of accessories.
