1SBL397060R1111

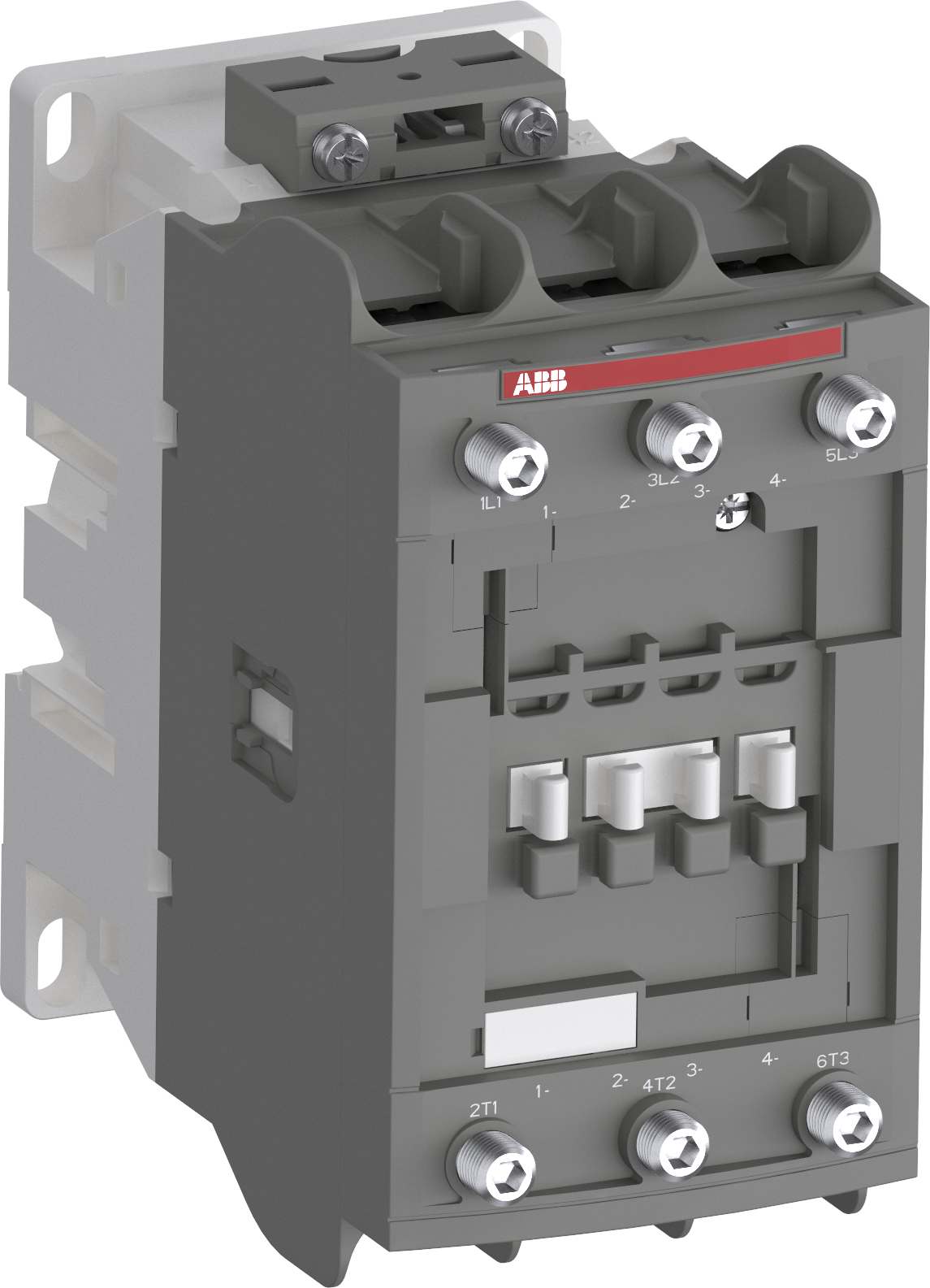

ABB AF80B-30-11RT-11 (1SBL397060R1111) — The AF80B-30-11RT-11 is a 3 pole - 1000 V IEC or 600 UL contactor with pre-mounted auxiliary contacts and RT terminals, controlling motors up to 37 kW / 400 V AC (AC-3) or 60 hp / 480 V UL and switching power circuits up to 125 A (AC-1) or 105 A UL…

The AF80B-30-11RT-11 is a 3 pole - 1000 V IEC or 600 UL contactor with pre-mounted auxiliary contacts and RT terminals, controlling motors up to 37 kW / 400 V AC (AC-3) or 60 hp / 480 V UL and switching power circuits up to 125 A (AC-1) or 105 A UL general use. Thanks to the AF technology, the contactor has a wide control voltage range (24-60 V 50/60 Hz and 20-60 V DC), managing large control voltage variations, reducing panel energy consumptions and ensuring distinct operations in unstable networks. Furthermore, surge protection is built-in, offering a compact solution. AF contactors have a block type design, can be easily extended with add-on auxiliary contact blocks and an additional wide range of accessories.
