1SFL597001N7111

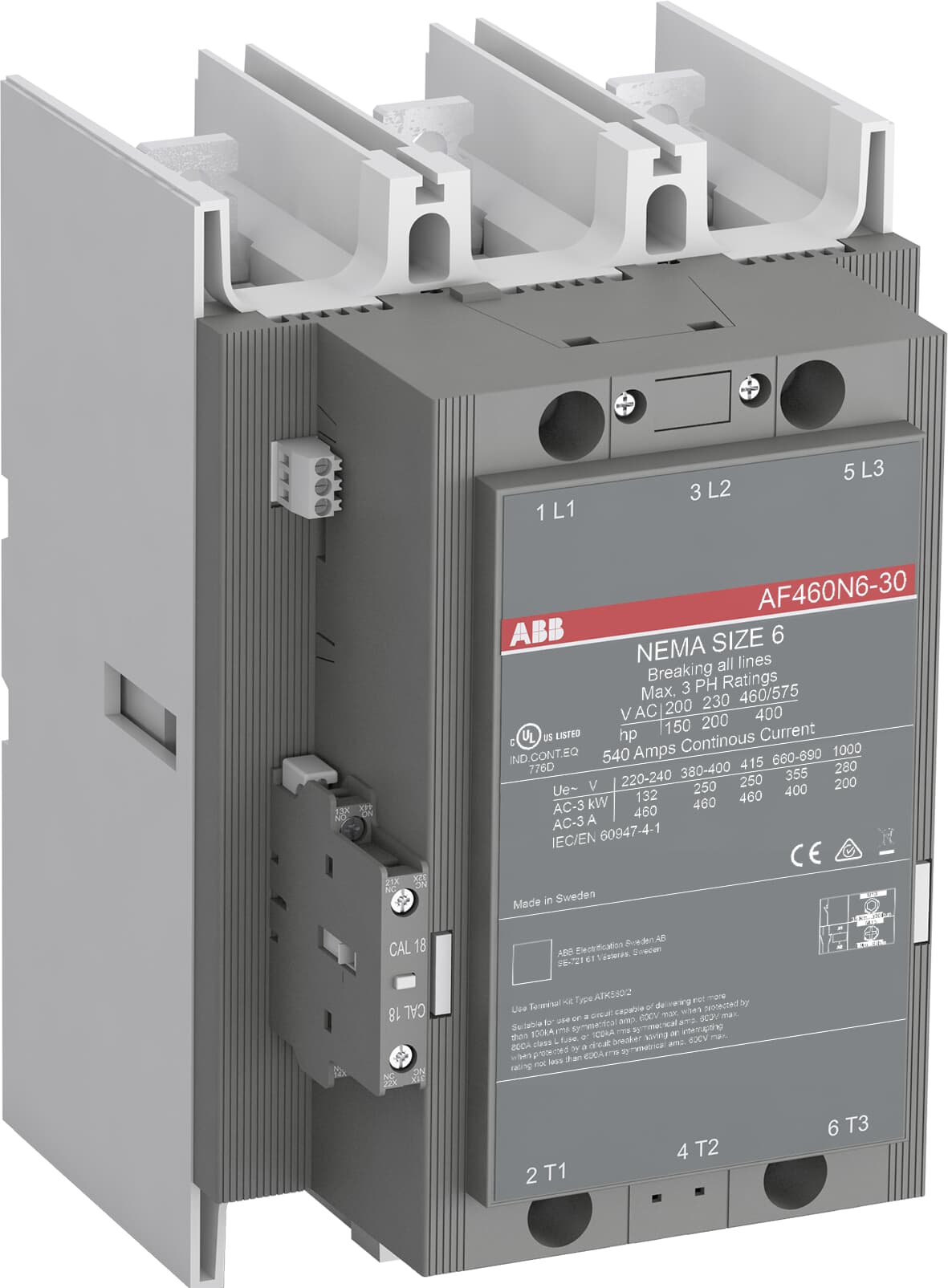

ABB AF460N6-30-11-71 (1SFL597001N7111) — The AF460N6-30-11-71 NEMA Contactor is a 3 pole - 1000 V IEC or 600 V UL contactor with Main Circuit: Bars, controlling motors up to 250 kW / 400 V AC (AC-3) or 400 hp / 480 V UL 700 A (AC-1) or 650 A UL general use. Thanks to the AF technology, the…

The AF460N6-30-11-71 NEMA Contactor is a 3 pole - 1000 V IEC or 600 V UL contactor with Main Circuit: Bars, controlling motors up to 250 kW / 400 V AC (AC-3) or 400 hp / 480 V UL 700 A (AC-1) or 650 A UL general use. Thanks to the AF technology, the contactor has a wide control voltage range (250-500 V, 50/60 Hz and DC), managing large control voltage variations, reducing panel energy consumptions and ensuring distinct operations in unstable networks. Furthermore, surge protection is built-in, offering a compact solution. AF contactors have a block type design, can be easily extended with add-on auxiliary contact blocks and an additional wide range of accessories.

Brand	ABB
Lifecycle status	active
Weight	10.6 kg
GTIN	7320500543672
