1SFL677001N7011

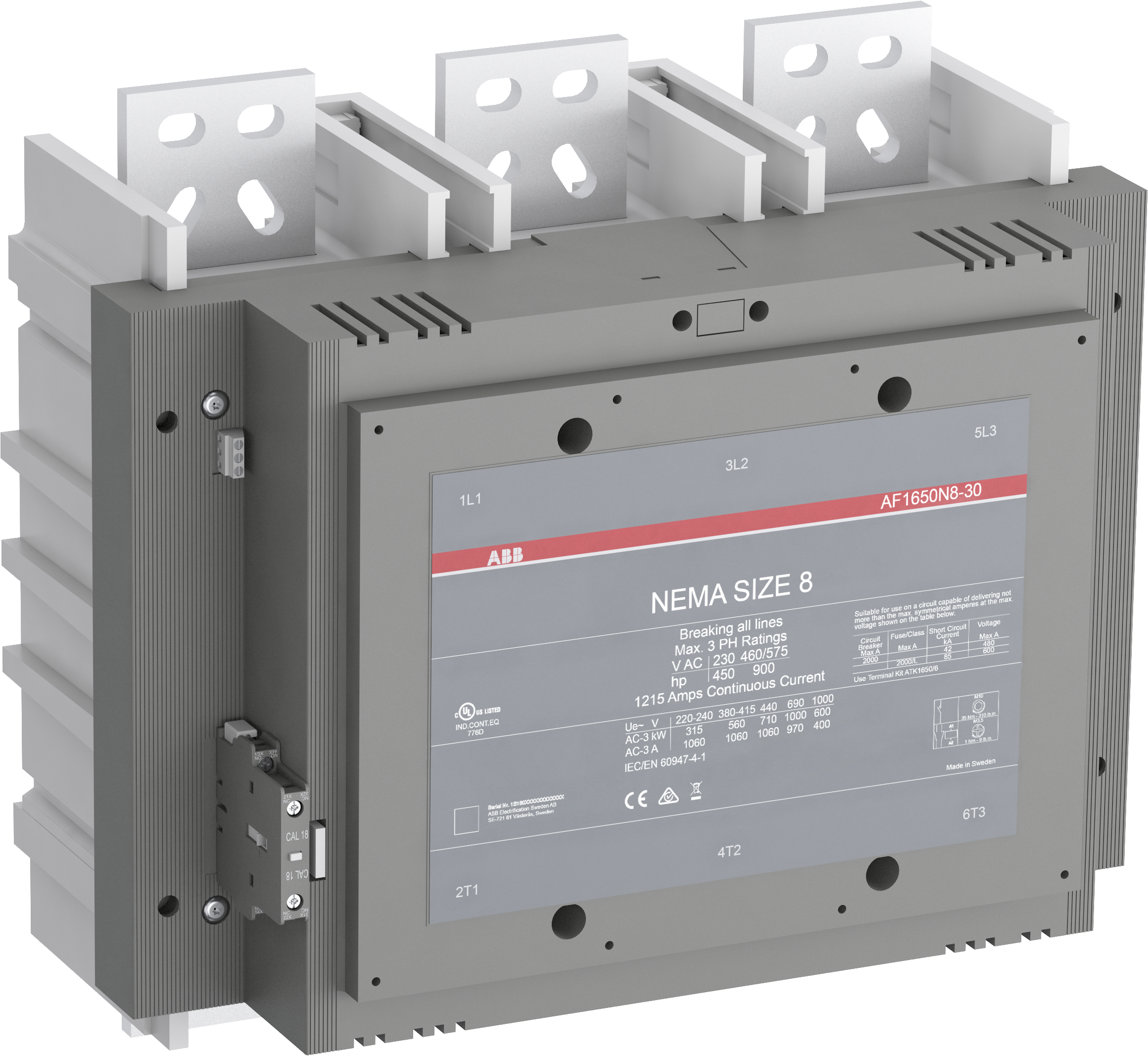

ABB AF1650N8-30-11-70 (1SFL677001N7011) — The AF1650N8-30-11-70 NEMA Contactor is a 3 pole - 1000 V IEC or 1000 V UL contactor with Main Circuit: Bars, controlling motors up to 560 kW / 400 V AC (AC-3) or 900 hp / 480 V UL 1650 A (AC-1) or 1650 A UL general use. Thanks to the AF technology, the…

The AF1650N8-30-11-70 NEMA Contactor is a 3 pole - 1000 V IEC or 1000 V UL contactor with Main Circuit: Bars, controlling motors up to 560 kW / 400 V AC (AC-3) or 900 hp / 480 V UL 1650 A (AC-1) or 1650 A UL general use. Thanks to the AF technology, the contactor has a wide control voltage range (100-250 V, 50/60 Hz and DC), managing large control voltage variations, reducing panel energy consumptions and ensuring distinct operations in unstable networks. Furthermore, surge protection is built-in, offering a compact solution. AF contactors have a block type design, can be easily extended with add-on auxiliary contact blocks and an additional wide range of accessories.

Brand	ABB
Lifecycle status	active
Weight	33 kg
GTIN	7320500543726
