ABB

1SVM310010R0000

SC10-40 Currentsensor 40 A
1SVM310010R0000

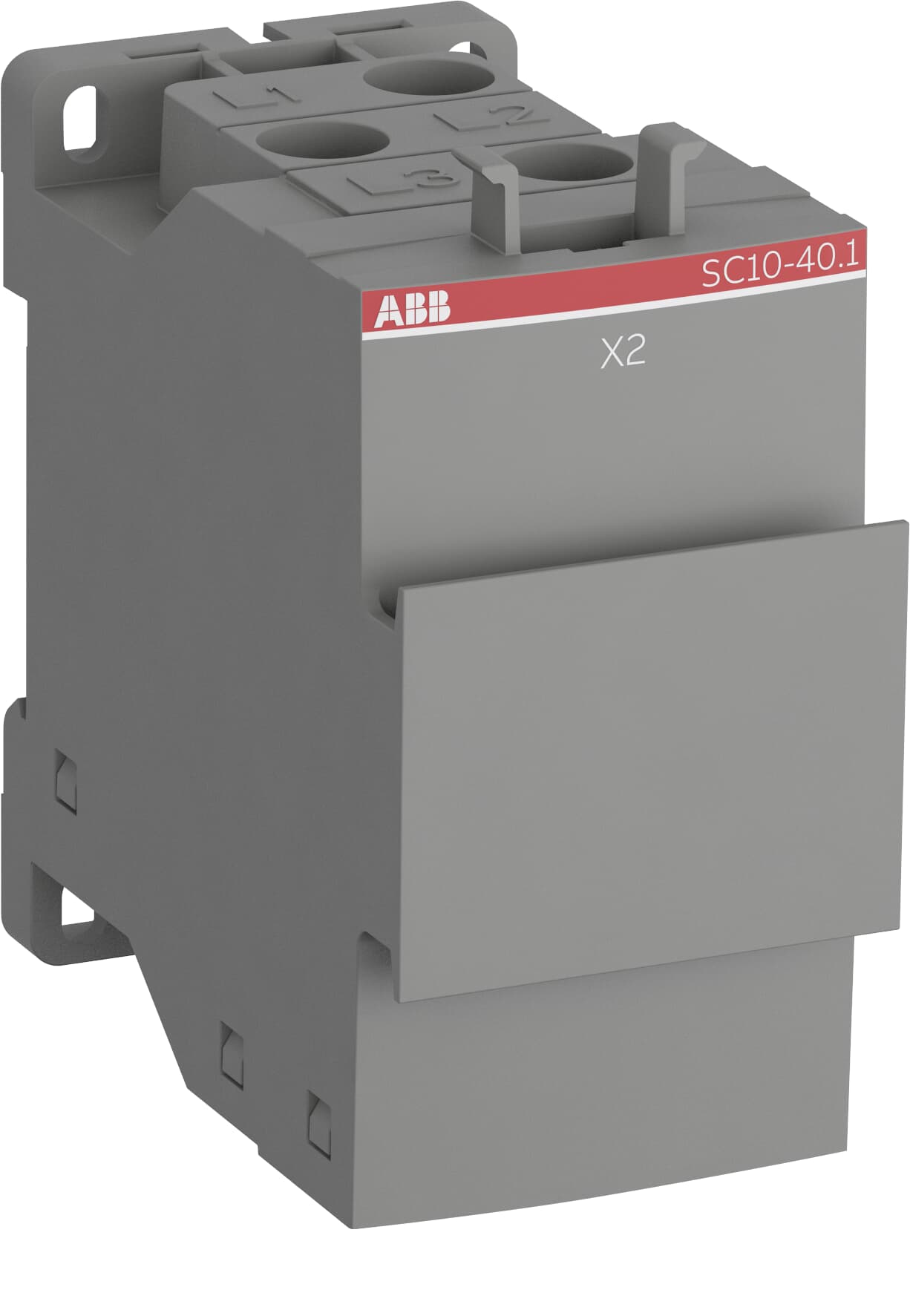

ABB SC10-40.1 (1SVM310010R0000) — The SC10-40 is an intelligent sensor unit for measuring current, frequency and further valuesIt is equipped with feed through current sensors to measure the current in all three phases of the connected load. A ribbon cable connects the SC10 with the SFM1 module…

The SC10-40 is an intelligent sensor unit for measuring current, frequency and further valuesIt is equipped with feed through current sensors to measure the current in all three phases of the connected load. A ribbon cable connects the SC10 with the SFM1 module and is also supplied from there. The SC10-40 offers thermal overload protection according to IEC/EN 60947 for 1/3 phase induction motors. Relevant parameters like the trip class and nominal current can be configured from within the PLC.

BrandABB
Lifecycle statusactive
Weight0.195 kg
GTIN4053546050011

Not currently in stock

Price on request
Request sourcing Ask a question
