3842564181

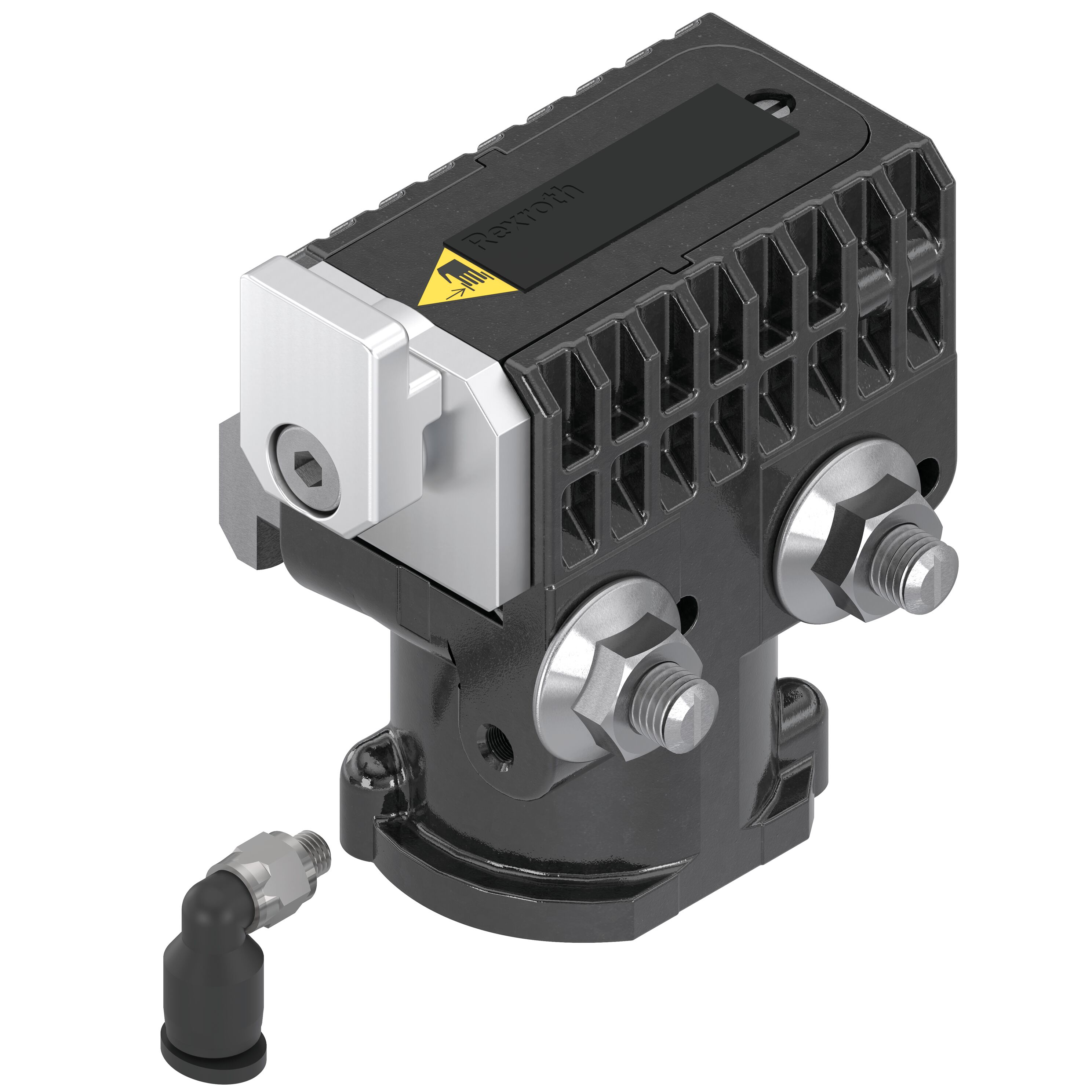

VE 2/D-80 stop gate

Dampened stopping of the first accumulating workpiece pallet Pneumatic stop gate Optimal damping for workpiece pallet total weights up to 80 kg Infinitely adjustable damping Can be combined with WT 2/E, WT 2 and WT 2/F The stop gate stops one or more accumulating workpiece pallets at the defined workpiece pallet stop surface When the pressure is released, the stop gate is held in the lock position by a spring and the workpiece pallet is stopped Mounted inside the tracks, directly on the conveyor section In case of installation of the stop gate VE 2/D-80 inside the HP 2/L positioning plate, the mounting option is to be checked by means of CAD (MTpro)

Brand	Bosch Rexroth
Lifecycle status	active
