3842571207

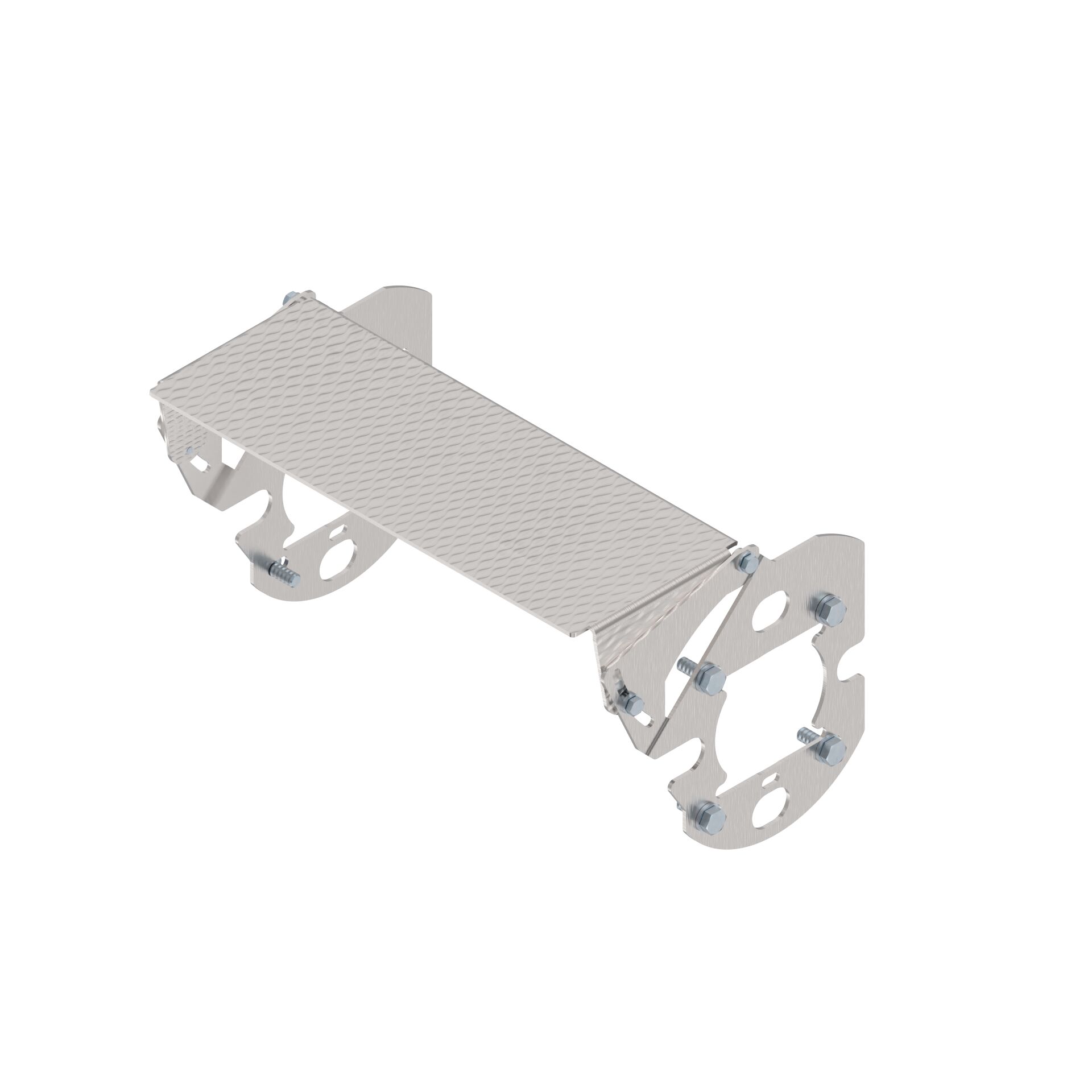

The short sliding bridge is used as a favorably priced, linear transfer unit between the basic unit or return unit and a third-party conveyor to bridge the conveyor trench.

The sliding bridge is suitable for conveyed materials from approx. 80 mm in length (depending on the angle of inclination, speed, position of the center of gravity, product friction, etc.) The material to be conveyed is transferred via a corrugated metal sheet with an inclination adjustment of ±15° (gradient only) The maximum loading capacity is 6 kg at even load distribution over the entire bridge width. At products with a low bridge width, the maximum loading capacity is reduced due to potential deflection. Subject to consultation, testing required.

Brand	Bosch Rexroth
Lifecycle status	active
