3842572099

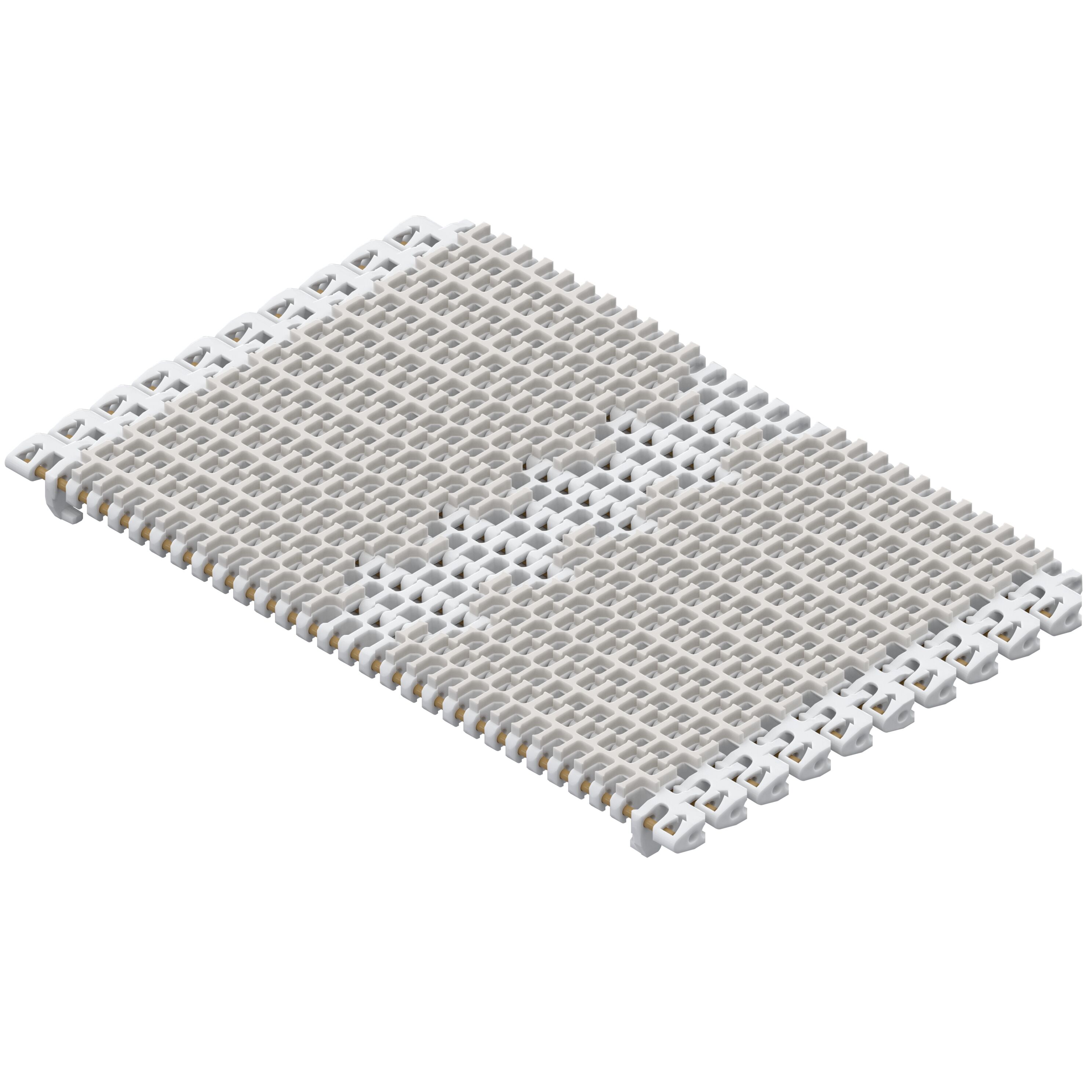

The static friction modular belt is used for transporting products on ascending or descending sections in track width 420.

All module members are provided with a static friction lining, the grip of which is maintained by regular cleaning. The lining-free edge and central zone of the surface serves to guide the modular belt. The lining is not suitable for transporting sharp-edged objects. The modular belts are assembled in a brick bond, in which the modules interlock to give the belt special lateral strength. <br>The use of the complete modular belt surface is possible, since on the underside, the belt is equipped with integrated holding-down clamps. As a result, even overwide products can be transported on a horizontal section path. Accumulation operation not permitted Only suitable for dry operation Curving on both sides Maximum permissible belt tensile force: 1250 N Transport on ascending or descending sections up to about 15° possible. The maximum gradient depends on the properties of the material conveyed, section length, velocity and ambient conditions (test required) Materials meet the requirements of EU 10/2011 and FDA CFR 21 (limitation static friction lining: Do not use in direct contact with fatty food.)

Brand	Bosch Rexroth
Lifecycle status	active
