3842572103

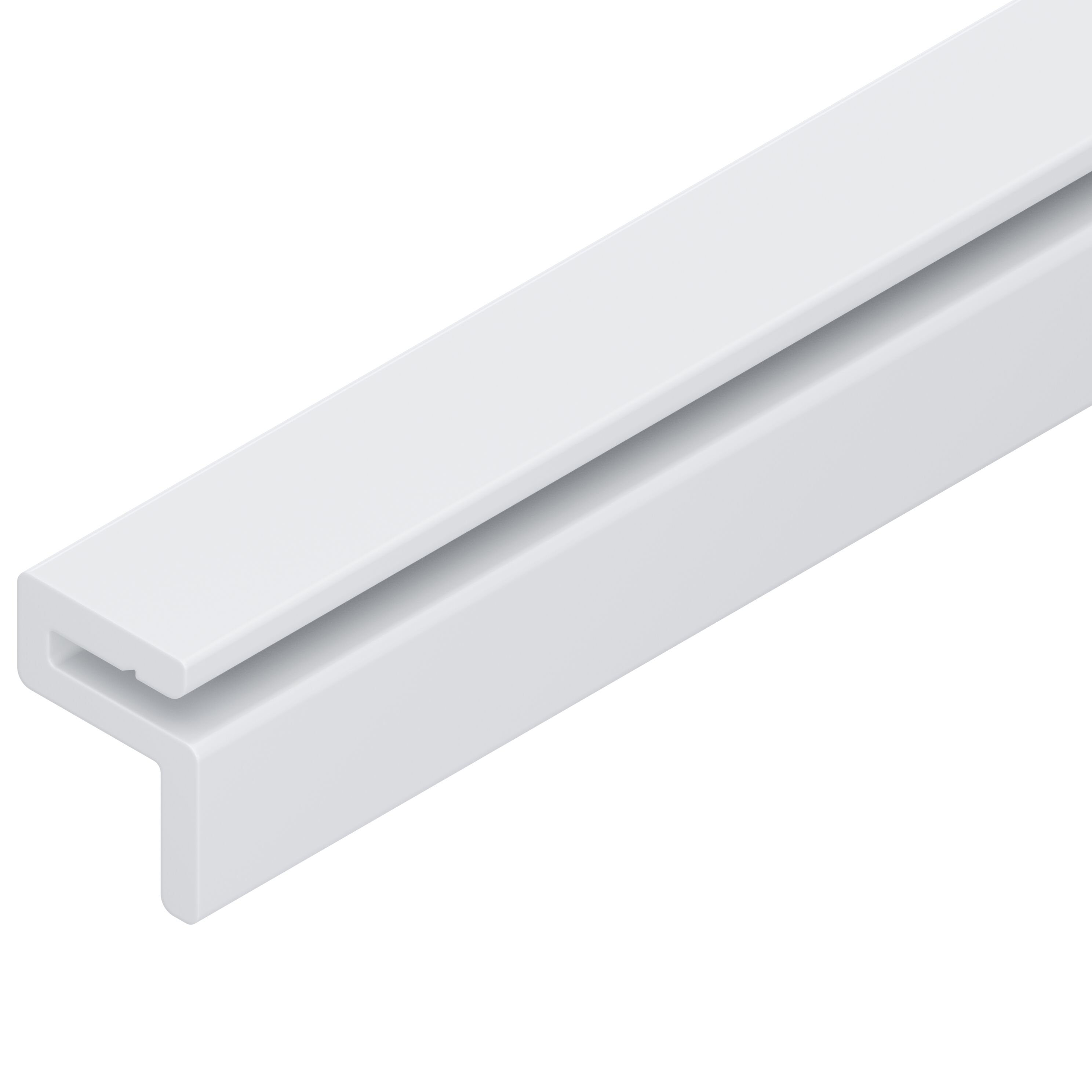

The L-shaped sliding rail is clipped onto the section and support profile. It guides and supports the modular belt

Extend the sliding rail over the component interfaces to ensure minimum wear and noise emissions. Interruptions to the profile or component connection must be avoided. If an interruption is necessary after 10 m, the sliding rail must be attached laterally with a sheet metal screw. Notice: After the sliding curves, an interruption is provided as an expansion joint in the inner curve area Secured against axial shifting due to lateral bolting Materials meet the requirements of EU 10/2011 and FDA CFR 21 Easy assembly by clipping onto the section/support profile Lateral securing means the sliding surface does not need to be machined and abrasion and noise level are reduced.

Brand	Bosch Rexroth
Lifecycle status	active
