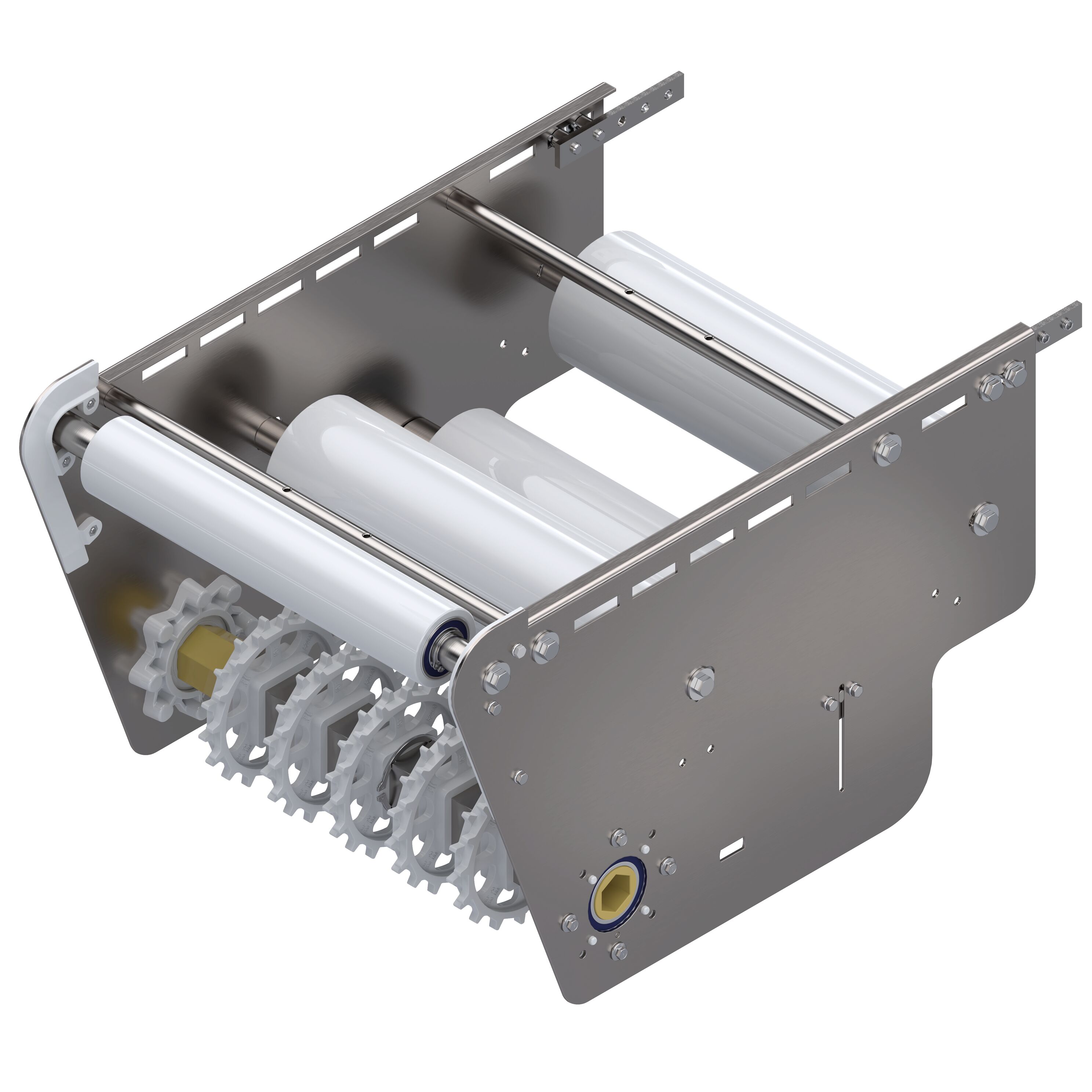

3842572108

The basic unit is completed by supplementing it with the drive kit to form a head drive with track width 420.

The small diameter of the return rollers at the front also enables linear transfer of shorter products without the need for additional components to bridge the conveyor trench. The tensioning roller is used to compensate for chain lengthening during the service life. After the basic unit, a straight section of at least 406 mm length must be installed. Free choice of the motor mounting position on site Configurable drive kit (standard gear motor or round shaft) Side elements with mounting option for attaching holders for lateral guides, or similar Maximum permissible belt tensile force: 1250 N Section length: L ≤ 30 m Conveyor speed: vN up to 40 m/min Not suitable for reversible operation Ball bearing made of non-rusting steel, with seal on both sides and FDA-compliant grease filling Return roller suitable for conveyed materials from approx. 130 mm in length (minimum, depending on speed, position of the center of gravity, geometry, product friction)

Brand	Bosch Rexroth
Lifecycle status	active
