3842572118

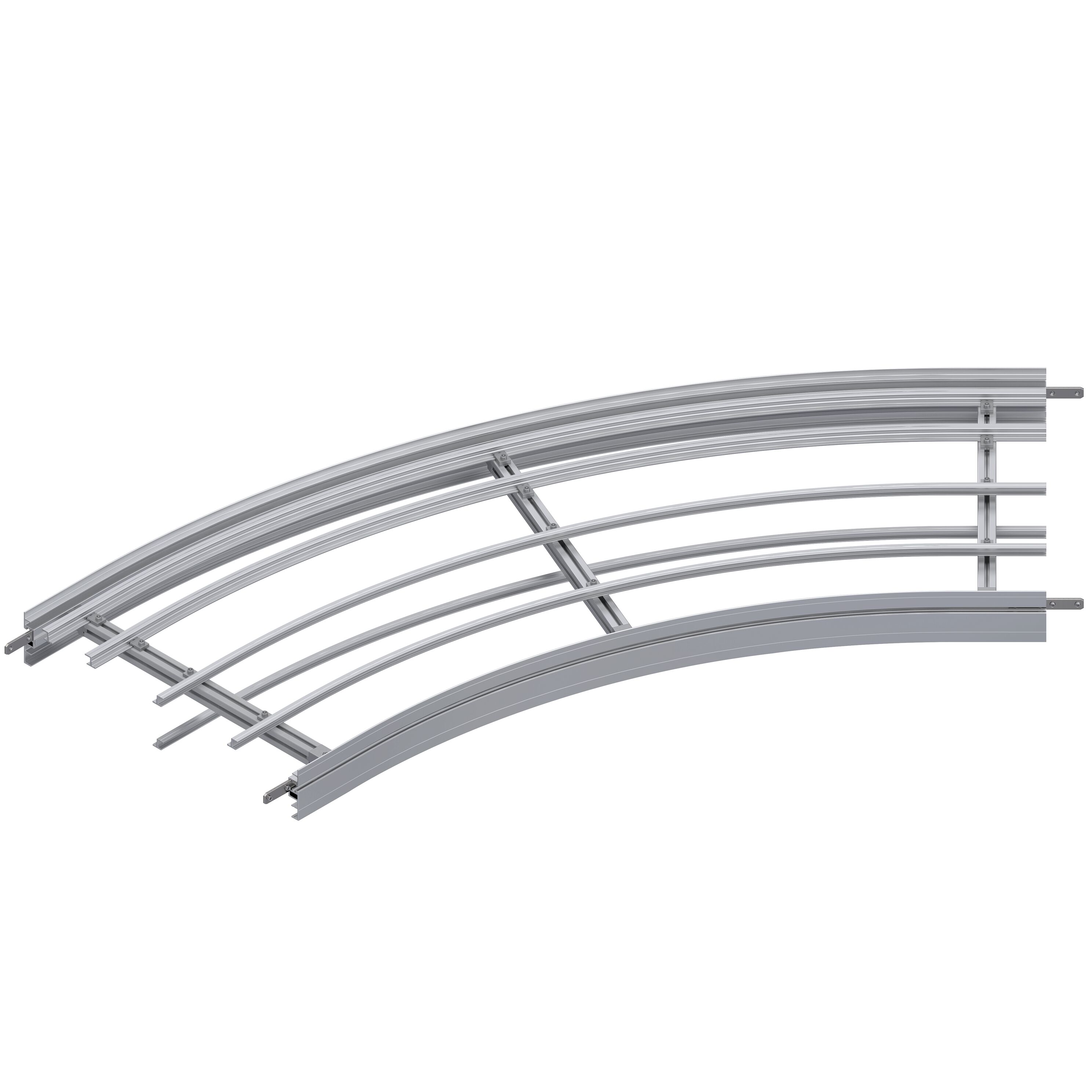

The 45° sliding curve is used to change the direction of the chain horizontally in the track width 622.

The use of the complete modular belt surface is possible, since on the underside, the belt is equipped with integrated holding-down clamps. As a result, even overwide products can be transported on a horizontal section path.<br>In front of and/or behind a horizontal curve, a straight section in belt width (additional section profile with a minimum length of 458 mm) must be provided. Between two horizontal curves in opposite direction (S curve), a straight section with twice the belt width (additional section profile with a minimum length of 916 mm) must be provided. Use in abrasive environments is not permissible

Brand	Bosch Rexroth
Lifecycle status	active
