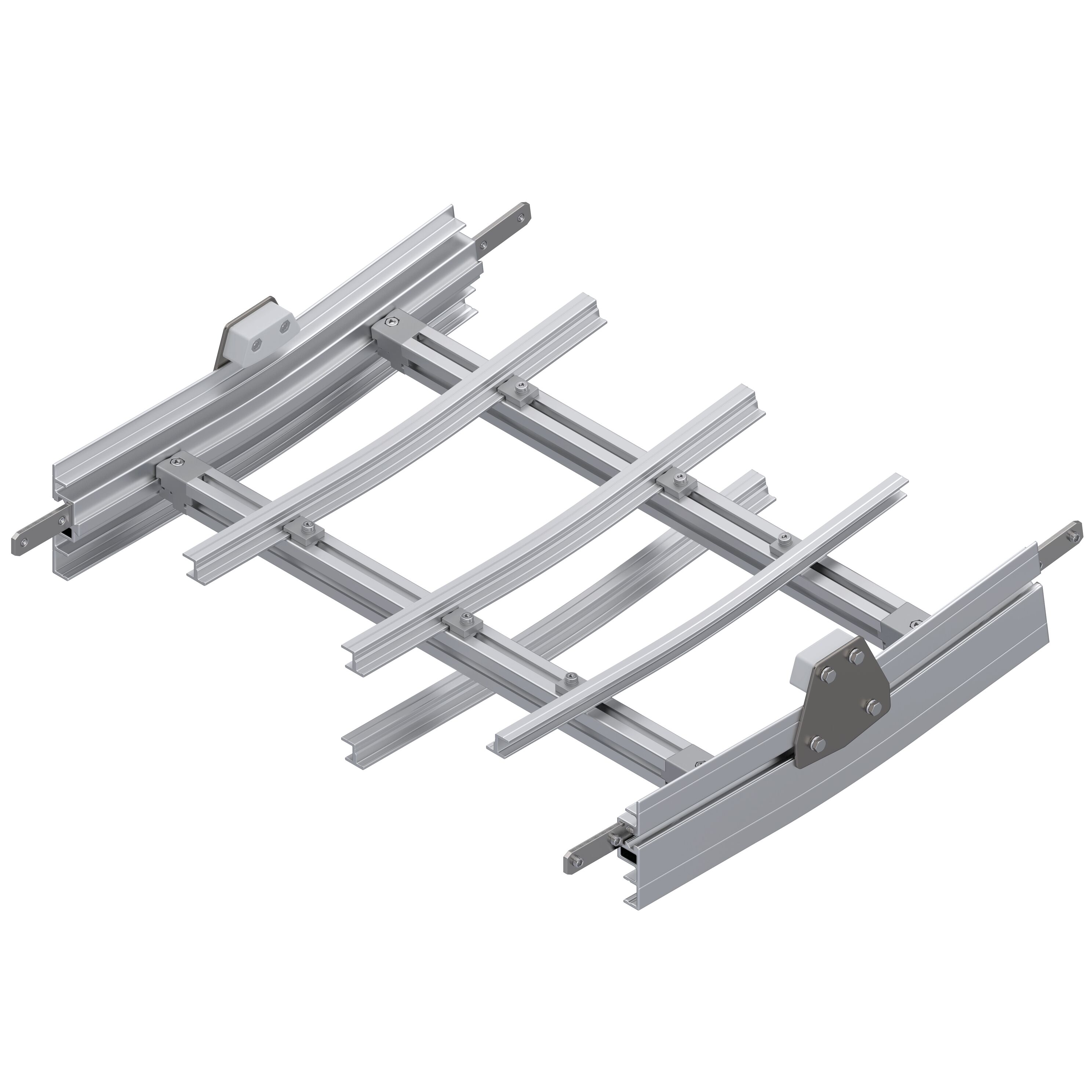

3842572124

The lower 7.5° vertical curve serves for the transition from a horizontal section profile of track width 622 to an ascending section or from a descending section to the horizontal one

Before and after a vertical curve, a straight section with belt width (additional section profile with a minimum length of 458 mm) must be provided. Two additional support struts are required for the assembly of the attached support profile.<br>The usable track width is reduced by the use of lateral holding-down clamps for guiding the modular belt close to the profile in the vertical curve. Despite the use of the holding-down clamps, the modular belt may bulge in the vertical curves. The maximum bulging can be up to 35 mm in the center of the belt, depending on curve angle, chain tensile force and speed. Use in abrasive environments is not permissible Maximum permissible belt tensile force: 450 N

Brand	Bosch Rexroth
Lifecycle status	active
