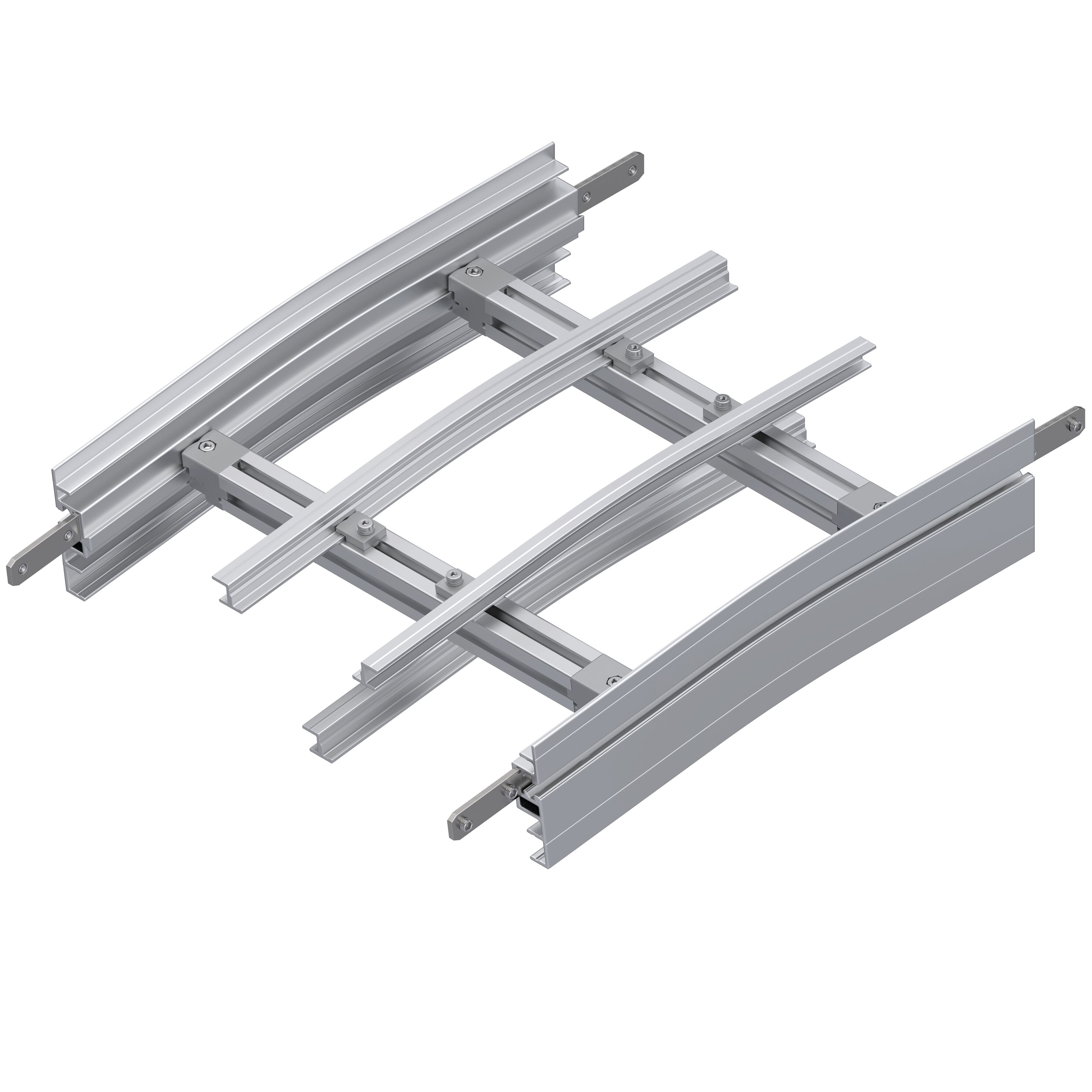

The upper 7.5° vertical curve serves for the transition from an ascending section of track width 420 to a horizontal section profile or from a horizontal to a descending section

Before and after a vertical curve, a straight section with belt width (additional section profile with a minimum length of 256 mm) must be provided. Two additional support struts are required for the assembly of the attached support profile. Use in abrasive environments is not permissible Maximum permissible belt tensile force: 450 N

Brand	Bosch Rexroth
Lifecycle status	active
