3842997023

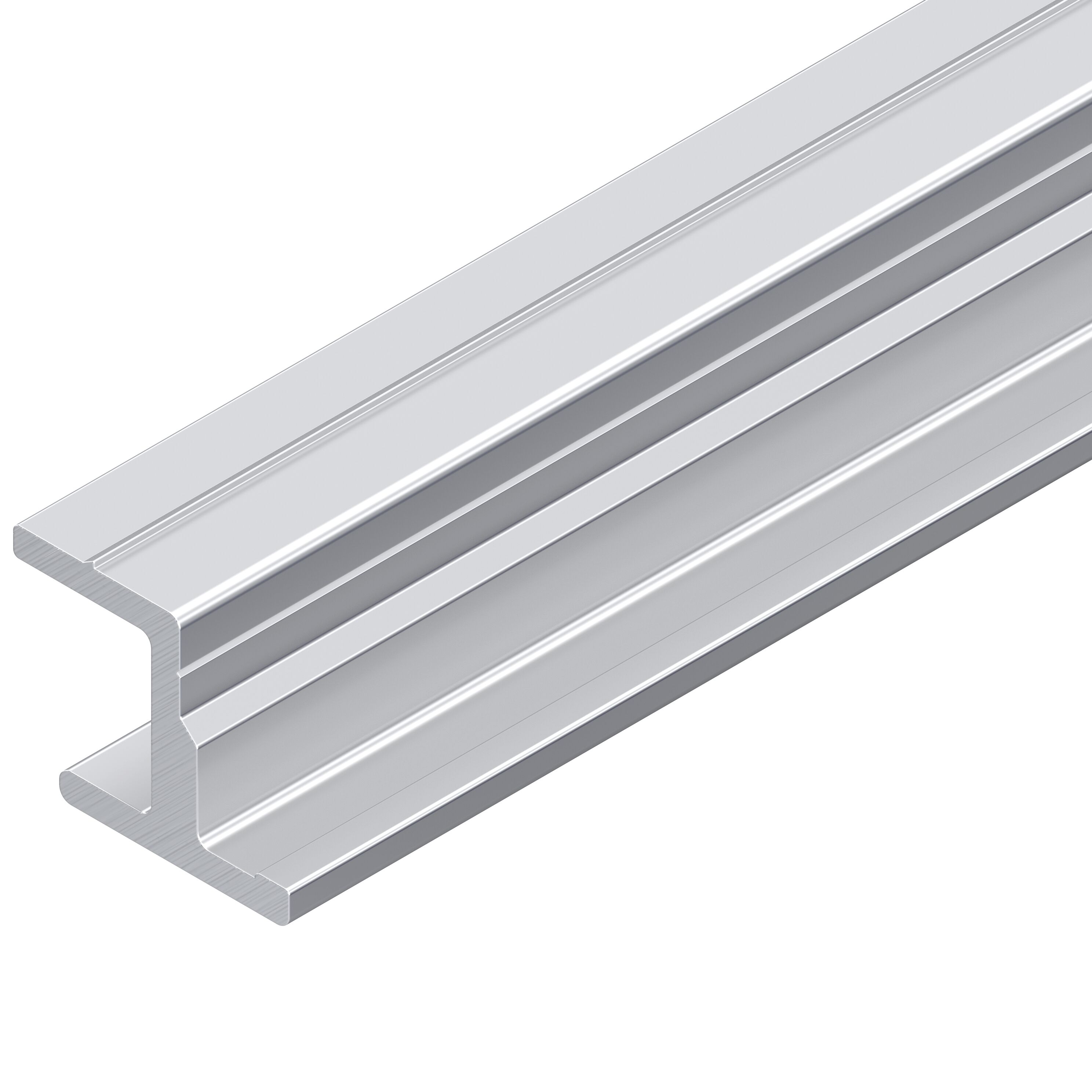

The support profile is used to support the modular belt in the upper and lower run

The main task of the support profile onto which the L-shaped sliding rail is clipped is to provide a running surface with the lowest possible friction and to reduce the wear of the modular belt. The system width determines the necessary number of support profiles. In the upper run, the support profile projects by 490 mm into the drive and by 197 mm into the return unit and must be designed accordingly longer. In the lower run, the support profile should be about 10 – 20 mm shorter than the section profile. If necessary, the slide rail can be attached laterally using the centering groove as a drilling aid The support profile is fastened to the cross connectors with the clamping piece

Brand	Bosch Rexroth
Lifecycle status	active
