3842998934

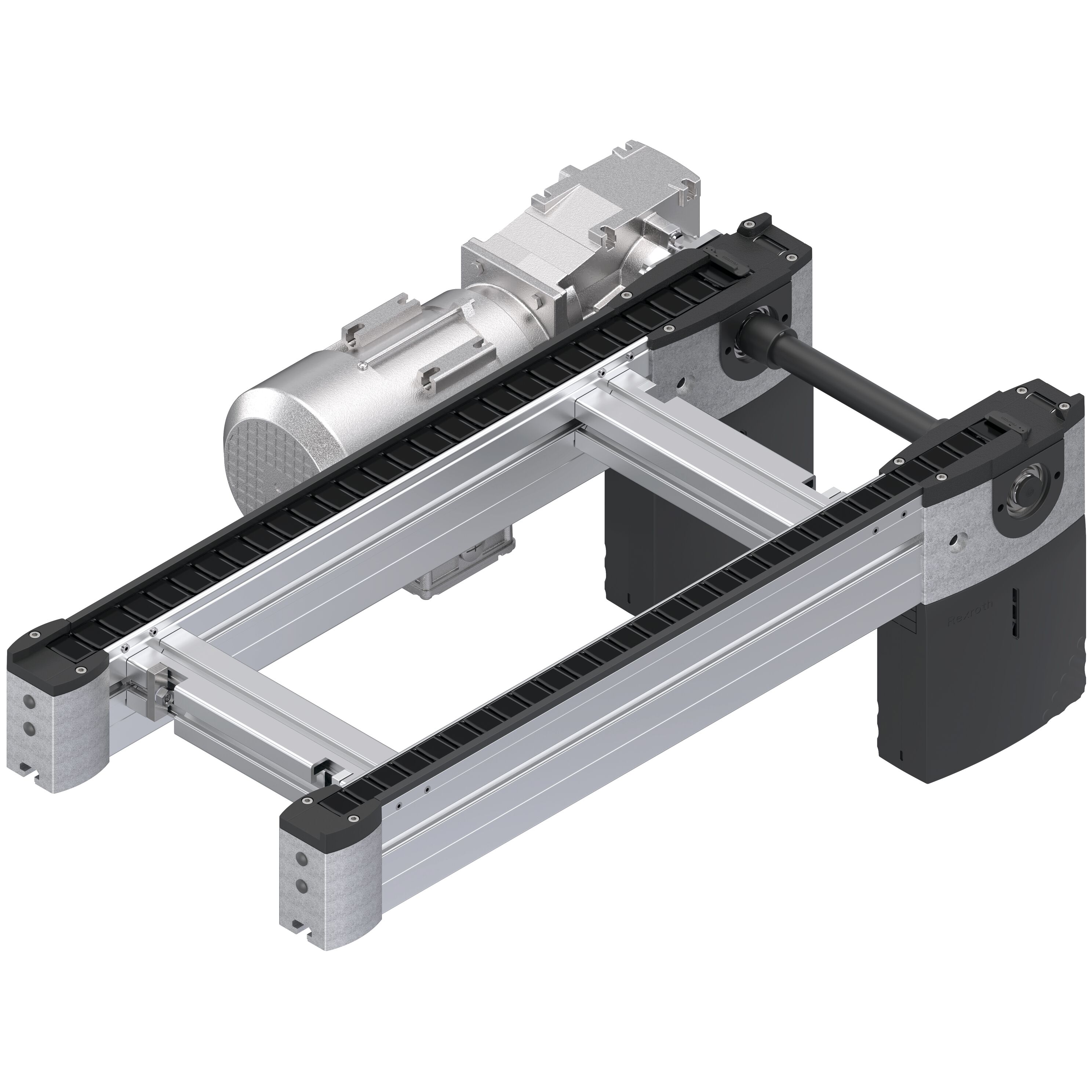

Belt section BS 2/C-250

Functional operation conveyor section complete with drive The belt section is a ready-to-use conveyor section with built-in drive for the transportation of workpiece pallets in the longitudinal direction or for the transverse conveying of the workpiece pallet between parallel conveyor sections in conjunction with two HQ 2 lift transverse units. Longitudinal conveying of the workpiece pallet on conveyor sections of up to 6000 mm Transverse conveying between parallel conveyor sections in conjunction with lift transverse units Can be combined with WT 2, WT 2/E, WT 2/LS and WT 2/F with wear pad PA Special models on request Use with medium accumulation loads The WT 2/LS can be used for longitudinal conveyors with this component Positioning of WTs in the area of the drive heads/return heads is not permitted.

Brand	Bosch Rexroth
Lifecycle status	active
