R158010000

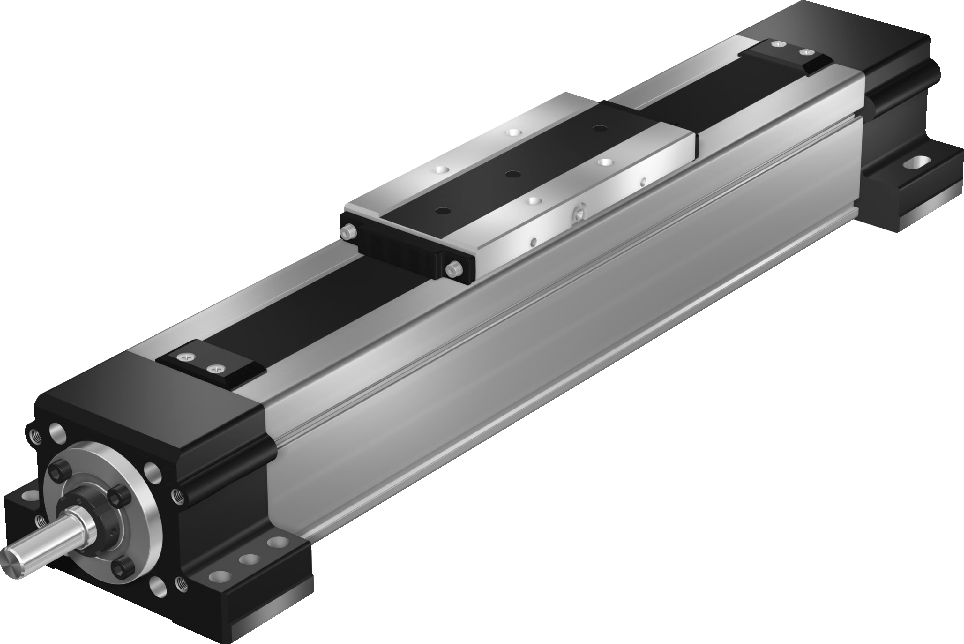

Closed-type drive units with ball screw drive AGK, size 20
AGK drive units in closed format are ready-to-install drive axes consisting of ball screw drive, nut housings and pillow blocks, as well as a protective aluminum profile with cover strip as an enclosure Three coordinated sizes available in any length up to L<sub>max</sub> The BASA is optimally protected by the protective profile with steel or polyurethane sealing strip Driven by zero-backlash, preloaded, precision ball screw drive in rolled version, in accordance with DIN 69051 in tolerance grade T5 or T7 High travel speeds thanks to large leads with high precision over long lengths Rapid mounting and easy alignment of the drive unit due to the machined reference edge on the pillow block housing Optional traveling screw supports to use in horizontal installation positions for max. speeds over longer lengths Flexible thanks to selectable options Easy motor attachment via locating feature and threads Clearly structured technical data for the complete unit as a "linear motion system without guideway" Name plate with parameters for easy commissioning
| Brand | Bosch Rexroth |
| Lifecycle status | active |
