R161964020

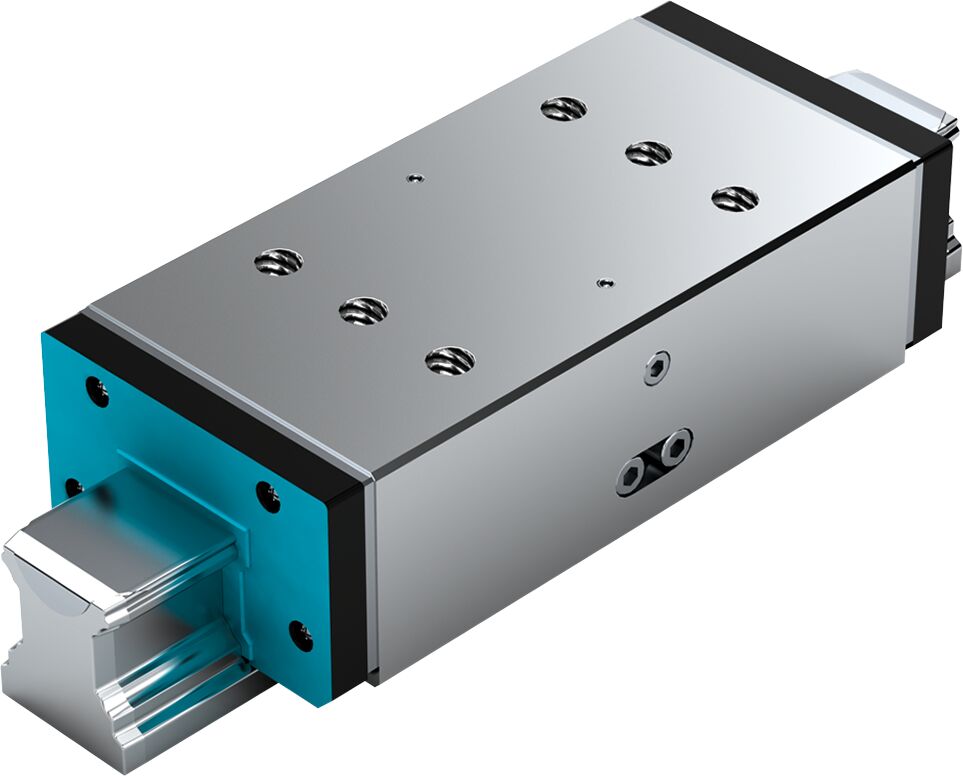

Hydraulic braking unit KBH, 65
Hydraulic braking unit KBH (hydraulic clamping and braking units)<sup>*)</sup>, SLS for ball rail systems<br>Size = 65<br>Can be used on all SNS ball guide rails<br><sup>*)</sup>Zimmer GmbH Very high axial holding forces Dynamic and static stabilization in the axial direction Heavy-duty brake Compact design, compatible with DIN 645 Clamps and brakes with pressure Can be used on all SNS ball guide rails Up to 1 million clamping cycles Up to 2,000 emergency braking operations Threaded on both sides for the hydraulic connection Solid, rigid steel housing, chemically nickel-plated High positioning accuracy Release pressure 150 bar Integrated all-round sealing Special pressure diaphragm technology for maximum functional reliability without pressure losses or leakage Integrated positive-locking, large-surface contact profiles for maximum axial rigidity Super heavy-duty model Low displacement 10 million clamping cycles (B10d value)
| Brand | Bosch Rexroth |
| Lifecycle status | active |
