R911406117

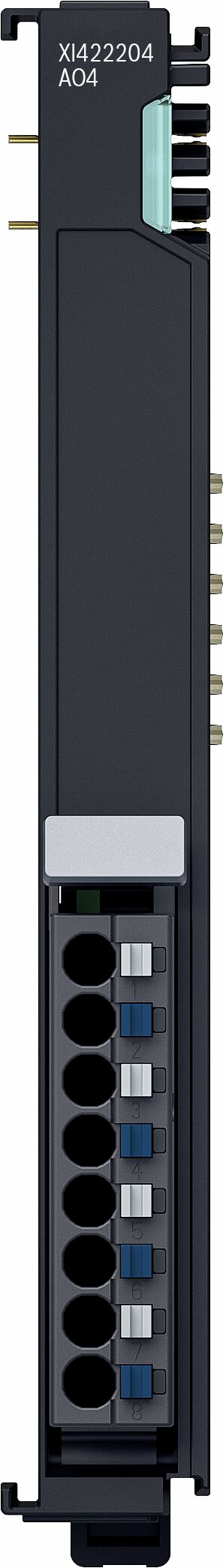

ctrlX I/O 4-channel analog output module (-10 to +10 V, 16 bit)

The analog output module XI422204 creates output signals in the range from -10 to +10 V in a ctrlX I/O station. The output signal is output galvanically isolated from the system level with a resolution of 16 bits. The four output channels have a common mass potential. The output stages are fed via the 24 V supply from UP. <br><br>The logic and peripheral voltage supply as well as the EtherCAT-based module communication are routed through the module.

Brand	Bosch Rexroth
Lifecycle status	active
