R911421644

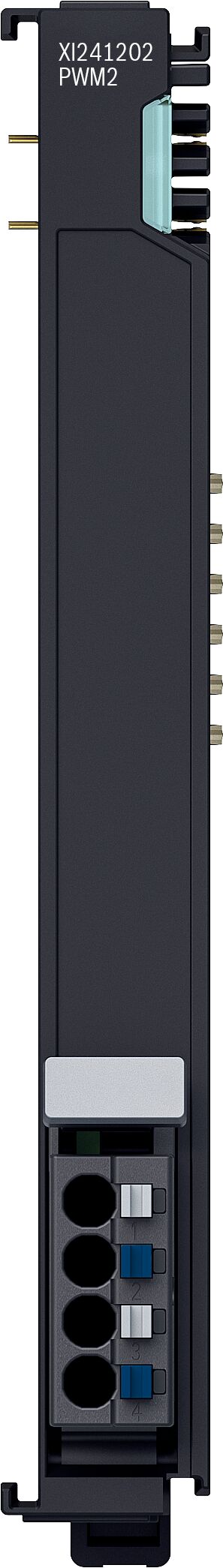

ctrlX I/O 2-channel pulse width modulation (PWM) output module (DC 24 V, 0.5 A), 2-wire

The digital output module XI241202 is used to output pulse-width-modulated binary 24 V control signals in a ctrlX I/O station. It has two channels in a 2-wire technique. The signal state is shown at the channel LED on the removable peripheral connector. The parent control specifies the clock and pulse/pause ratio. The digital outputs are fed via the 24 V supply from UP. <br><br>The logic and peripheral voltage supply as well as the EtherCAT-based module communication are routed through the module.

Brand	Bosch Rexroth
Lifecycle status	active
