R911430123

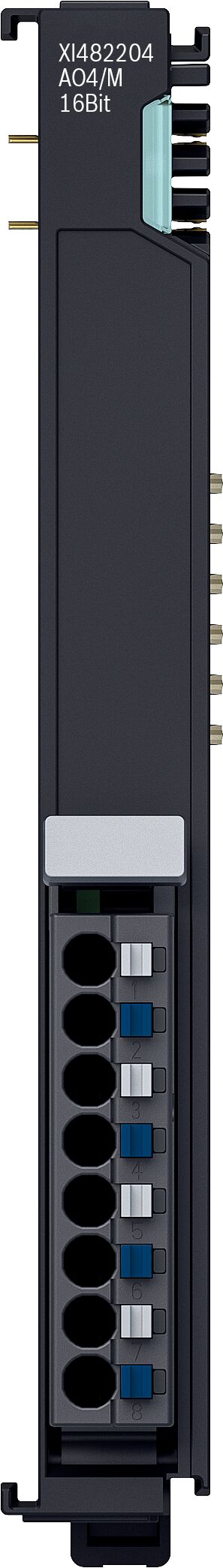

ctrlX I/O 4-channel analog output module (multi range, 0 V to +10 V, -10 V to +10 V, 0 to 20 mA, 4 to 20 mA, 16 bit, diff. outputs)

The analog output module XI482204 creates output signals in the adjustable ranges of 0 V to +10 V, -10 V to +10 V, 0 to 20 mA and 4 to 20 mA in a ctrlX I/O station. The value range can be set on a channel-by-channel basis. The output signal is galvanically isolated from the system level with a resolution of 16 bits. The 4 output channels have a common mass potential. The output stages are powered by the 24 V supply from UP.<br><br>The logic and peripheral supply as well as the EtherCAT-based module communication are routed through the module.

Brand	Bosch Rexroth
Lifecycle status	active
