060-J612-01

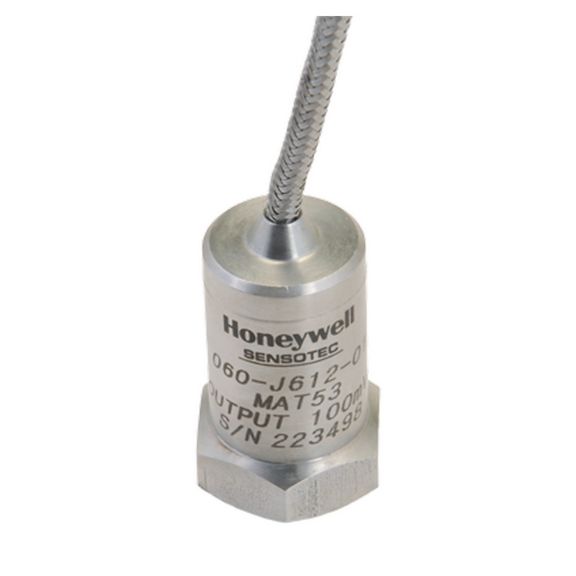

Honeywell 060-J612-01 — Model MAT53 temperature and vibration accelerometer, 100 mVG, top cable exit, 16 ft stainless steel overbraided PTFE cable, useable frequency range 2 Hz to 10 KHz (Model MAT53 Accelerometer). PartnerPLC sources new, surplus and discontinued Honeywell parts — request a quote for price, condition and lead time.
Part of Honeywell's Model MAT53 Accelerometer range. The Model MAT53 series amplified piezoelectric accelerometers combined with integrated temperature sensors are designed to be used in industrial test and automation environments: including laboratory test, modal studies and testing cells where there is a need to simultaneously measure temperature and velocity vibration. The constant current low output impedance for the velocity vibration combined with the current output for the temperature output provide the ability to drive high load capacitance allows long runs of low cost cable without degradation of data. The seismic element is mechanically isolated from the mounting base, resulting in a low base strain sensitivity. Sensors are constructed of non-magnetic stainless steel with very low magnetic field susceptibility and a sealed data, to provide highly accurate and reliable data. Available in a number of configurations and options that includes connector or integral stainless steel armored cable , and different dynamic ranges to suit expected temperature and vibration levels. Features Temperature and vibration dual output 2 Hz to 10 kHz usable frequency range IEPE output Low base strain sensitivity Current O/P for temperature Stainless steel overbraided PTFE cable Stainless steel armored cable or three-pin connector electrical options Honeywell 060-J612-01 — Model MAT53 temperature and vibration accelerometer, 100 mVG, top cable exit, 16 ft stainless steel overbraided PTFE cable, useable frequency range 2 Hz to 10 KHz (Model MAT53 Accelerometer). PartnerPLC sources new, surplus and discontinued Honeywell parts — request a quote for price, condition and lead time.
| Brand | Honeywell |
| Lifecycle status | active |
