PUB1012S-ILC/U

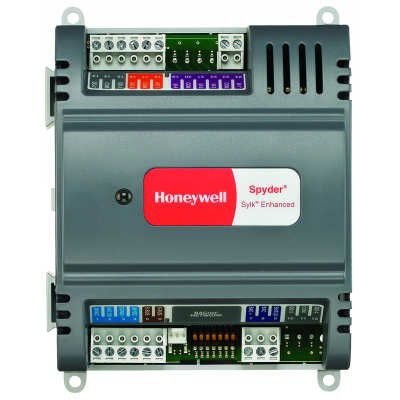

Honeywell PUB1012S-ILC/U — Spyder® BACnet® PUB programmable controllers are designed to control HVAC equipment. These controllers provide many options and advanced system features that allow state-of-the-art commercial building control. Discontinued by Honeywell — no longer in the current range. PartnerPLC sources new, surplus and discontinued Honeywell parts — request a quote for price, condition and lead time.

\Spyder® BACnet® PUB programmable controllers are designed to control HVAC equipment. These controllers provide many options and advanced system features that allow state-of-the-art commercial building control. Each controller is programmable and configurable through software. These controllers are for use in Variable Air Volume (VAV), Unitary, and advanced HVAC applications. Each controller has flexible, universal inputs for external sensors, digital inputs, and a combination of analog and digital Triac outputs. Features & Benefits: Each controller communicates via an EIA-485 BACnet MS/TP network communications network, capable of baud rates between 9.6 and 115.2 kilobits Controllers are field-mountable to either a panel or a DIN rail Rated Voltage: 20–30V AC; 50/60 Hz LED provides status for normal operation, controller download process, alarms, manual mode, and error conditionsCertifications: UL/cUL (E87741) listed under UL916 (Standard for Open Energy Management Equipment) with plenum rating. CSA (LR95329-3) listed. Meets FCC Part 15, Subpart B, Class B (radiated emissions) requirements. Meets Canadian standard C108.8 (radiated emissions). EMC Directive: 2014/30/EU: Standards Applied: — IEC 61000-4-8:2009 — IEC 61000-4-11:2004 — EN 61000-6-1: 2007; EN 61000-6-3:2007/A1:2011; EN 61000-6-3:2007/A1:2011/AC: 2012 — EN 60730-2-9: 2010, EN 60730-2-14: 1997 + EN60730-2-14/A1: 2001. — In conjunction with EN 60730-2-9:2010 and in conjunction with EN 60730-2-14:1997 and amendments: EN 60730-1: 2000 + A1: 2004 + A16: 2007 + A2: 2008 -Annex H.26. RoHS Directive: 2011/65/EU Standards Applied: — EN 50581: 2012 BTL B-ASC (BACnet Testing Laboratories, BACnet Application Specific Controller) Honeywell PUB1012S-ILC/U — Spyder® BACnet® PUB programmable controllers are designed to control HVAC equipment. These controllers provide many options and advanced system features that allow state-of-the-art commercial building control. Discontinued by Honeywell — no longer in the current range. PartnerPLC sources new, surplus and discontinued Honeywell parts — request a quote for price, condition and lead time.
