TBS056BO

Honeywell TBS056BO — TBS 2D IRON Multi-Spectral Fingerprint Terminals with Touchscreen. PartnerPLC sources new, surplus and discontinued Honeywell parts — request a quote for price, condition and lead time.

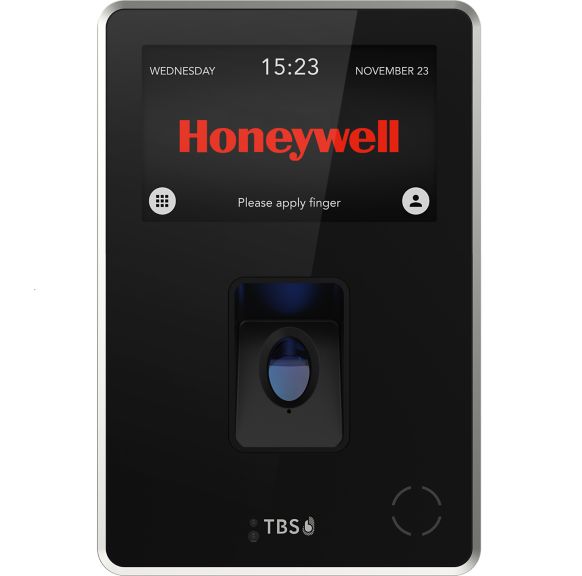

TBS 2D IRON combines a best-in-class multispectral fingerprint sensor with an IP65-Terminal for harsh environments. Designed and manufactured in Switzerland.• Multispectral fingerprint sensor with highest recognition performance• Robust Liveness Detection• Waterproof and dustproof (IP65)• Up to 50’000 users• 5-inch color touchscreen• Supports Power-over-Ethernet• PIN Code, Mobile ID• Various RFID options• Verification using combined ID factorsFingerprint enrollment:• On 2D IRON using touchscreen• On 2D IRON using remote control (via IQ MultiAccess and ProWatch interface)• On 2D ENROLL USB Enrollment stationOrdering information:• Specify the installation box option "BO" in artikel number:• FM - Flush mount• WM - Wall mount• Specify the reader RFID optio "RF" in artikel number:• LEM - LEGIC or MIFARE (DESFIRE)• ICL - HID iCLASS• PRO - 125kHx Prox technologies Features & Benefits:Standard features• Capacitive 5’’ color touchscreen• Connections: RJ45• Local interfaces: RS232, RS485 (Modulbus and OSDP), Wiegand Out• Relay: 1 internal relay• Tamper Switch includedInstallation• Indoor: Wall Mount, Flush Mount & Heavy Duty• Outdoor: Flush Mount & Heavy Duty• Dimensions (h x w x d): Wall Mount: 211 x 140 x 91 mm Flush Mount: 210 x 140 x 23 mm (depth installation box: 65mm) Heavy Duty: 211 x 140 x 92 mmPower Requirements• 12-24 VDC (max. draw 7W)• PoE compliant Honeywell TBS056BO — TBS 2D IRON Multi-Spectral Fingerprint Terminals with Touchscreen. PartnerPLC sources new, surplus and discontinued Honeywell parts — request a quote for price, condition and lead time.
