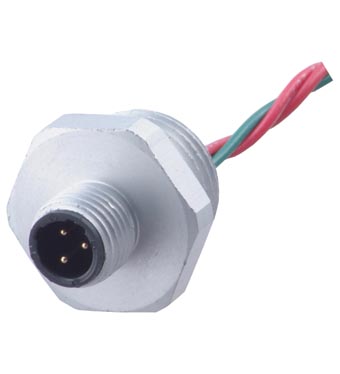

1/2" NPT-V12-G-S-.3M

Male receptacle. Male receptacle, 1/2" UNF / 1/2" NPT, 3-pin. Number of pins: 3. Construction type: straight. Connection 1: Male connector. Threading 1: 1/2". Connection 2: cable end. Threading 2: 1/2...

Male receptacle. Male receptacle, 1/2" UNF / 1/2" NPT, 3-pin. Number of pins: 3. Construction type: straight. Connection 1: Male connector. Threading 1: 1/2". Connection 2: cable end. Threading 2: 1/2". Operating voltage: max. 300 V AC/DC. Operating current: max. 4 A. UL approval: cULus Listed, General Purpose. Ambient temperature: -40 ... 105 °C (-40 ... 221 °F). Degree of protection: IP67. Connection: Single strand leads. Material: clear anodized aluminum. ContactsGold plated copper alloySleeve connectorPolyamide (PA): . Contacts: Gold plated copper alloy. Sleeve connector: Polyamide (PA). Cable: . Cores3 x 0.34 mm2 , 22 AWGLengthL0.3 m: . Cores: 3 x 0.34 mm2 , 22 AWG. Length: 0.3 m. Note: 1/2" - 14 NPT installation thread

Brand	Pepperl Fuchs
Lifecycle status	active
