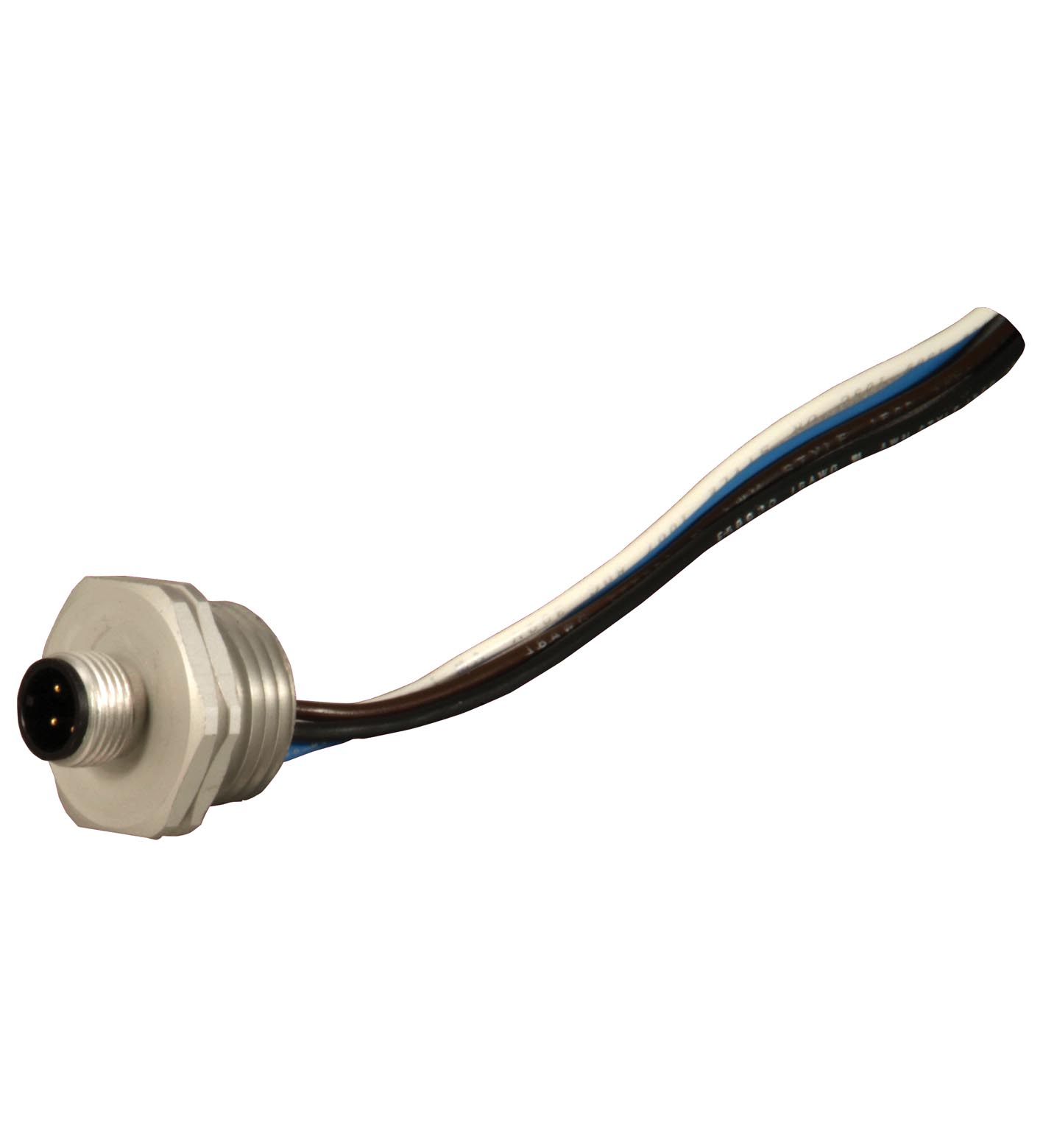

1/2" NPT-V15-G-S-.15M

Male receptacle. Male receptacle, M12/ 1/2" NPT, 5-pin. Number of pins: 5. Construction type: straight. Connection 1: Male connector. Threading 1: M12. Connection 2: cable end. Threading 2: 1/2". Oper...

Male receptacle. Male receptacle, M12/ 1/2" NPT, 5-pin. Number of pins: 5. Construction type: straight. Connection 1: Male connector. Threading 1: M12. Connection 2: cable end. Threading 2: 1/2". Operating voltage: max. 300 V AC/DC. Operating current: max. 4 A. UL approval: cULus Listed, General Purpose. Ambient temperature: -40 ... 105 °C (-40 ... 221 °F). Degree of protection: IP67. Connection: Single strand leads. Material: anodized aluminum. ContactsGold plated copper alloySleeve connectorPolyamide (PA): . Contacts: Gold plated copper alloy. Sleeve connector: Polyamide (PA). Cable: . Cores5 x 0.34 mm2 , 22 AWGLengthL0.15 m: . Cores: 5 x 0.34 mm2 , 22 AWG. Length: 0.15 m. Note: 1/2" - 14 NPT installation thread

Brand	Pepperl Fuchs
Lifecycle status	active
