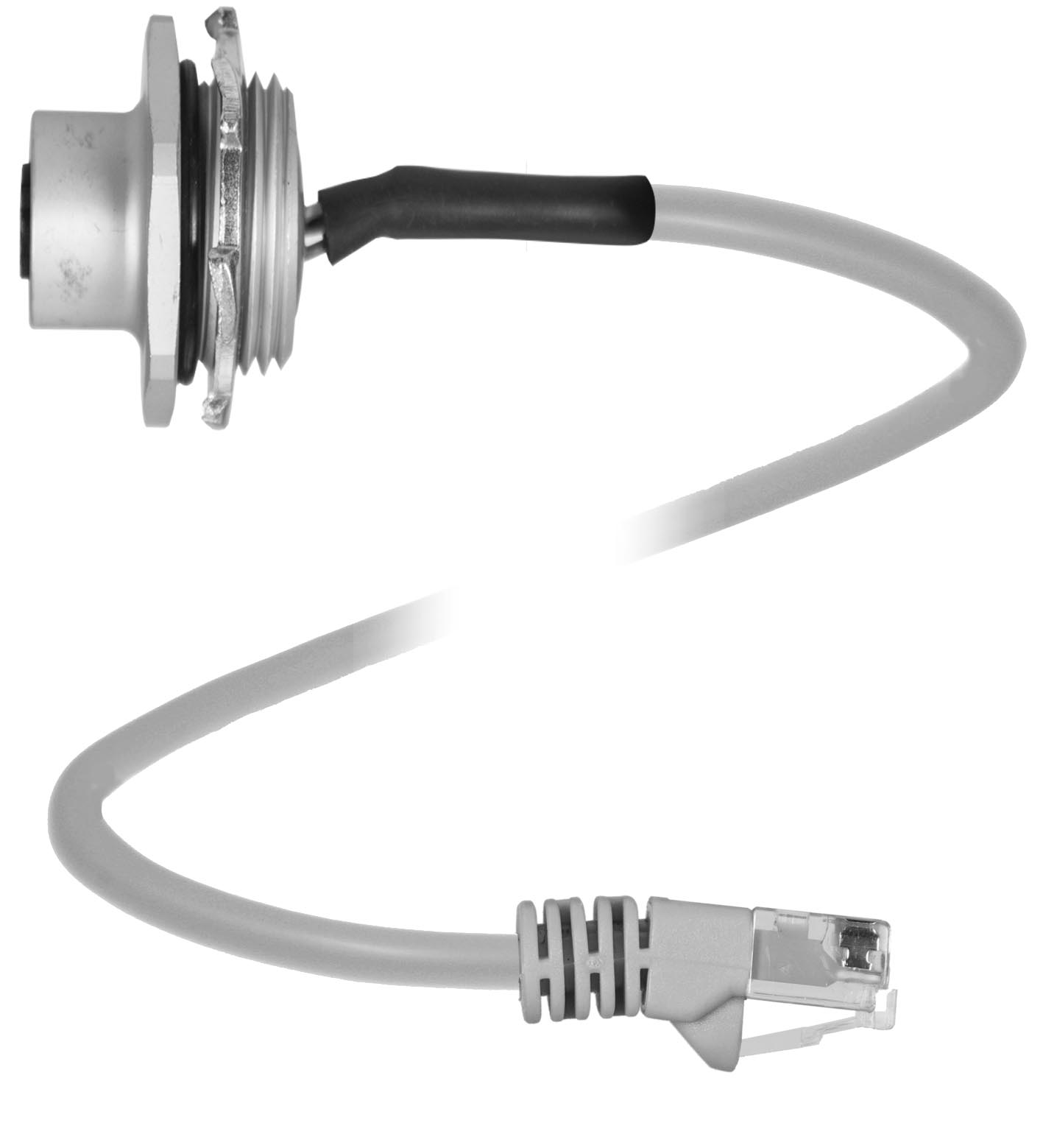

1/2"NPT-V1D-GN1M-PVC-V45-G

Connection cable. Ethernet bus cable, M12 D-coded to RJ45, PVC cable 4-pin, CAT5e, shielded. Number of pins: 4. Connection 1: socket. Construction type 1: straight. Threading 1: M12. Connection 2: plu...

Connection cable. Ethernet bus cable, M12 D-coded to RJ45, PVC cable 4-pin, CAT5e, shielded. Number of pins: 4. Connection 1: socket. Construction type 1: straight. Threading 1: M12. Connection 2: plug. Construction type 2: straight. Threading 2: RJ-45. Operating voltage: max ... 60 V DC. Operating current: max 1.5 A. Standard conformity: . StandardsCAT5 (IEC 11801:2002) , CAT5e (TIA 568B:2001) IEC 61076-2-101:2008: . Standards: CAT5 (IEC 11801:2002) , CAT5e (TIA 568B:2001) IEC 61076-2-101:2008. Ambient temperature: -40 ... 80 °C (-40 ... 176 °F). Degree of protection: IP67. Material: . ContactsGold plated copper alloyConnectorclear anodized aluminumBodyCAT5e , tealCablePVCSlotted nutZinc plated steel: . Contacts: Gold plated copper alloy. Connector: clear anodized aluminum. Body: CAT5e , teal. Cable: PVC. Slotted nut: Zinc plated steel. Cable: 1 m cable length. Mass: 46.6 g

Brand	Pepperl Fuchs
Lifecycle status	active
