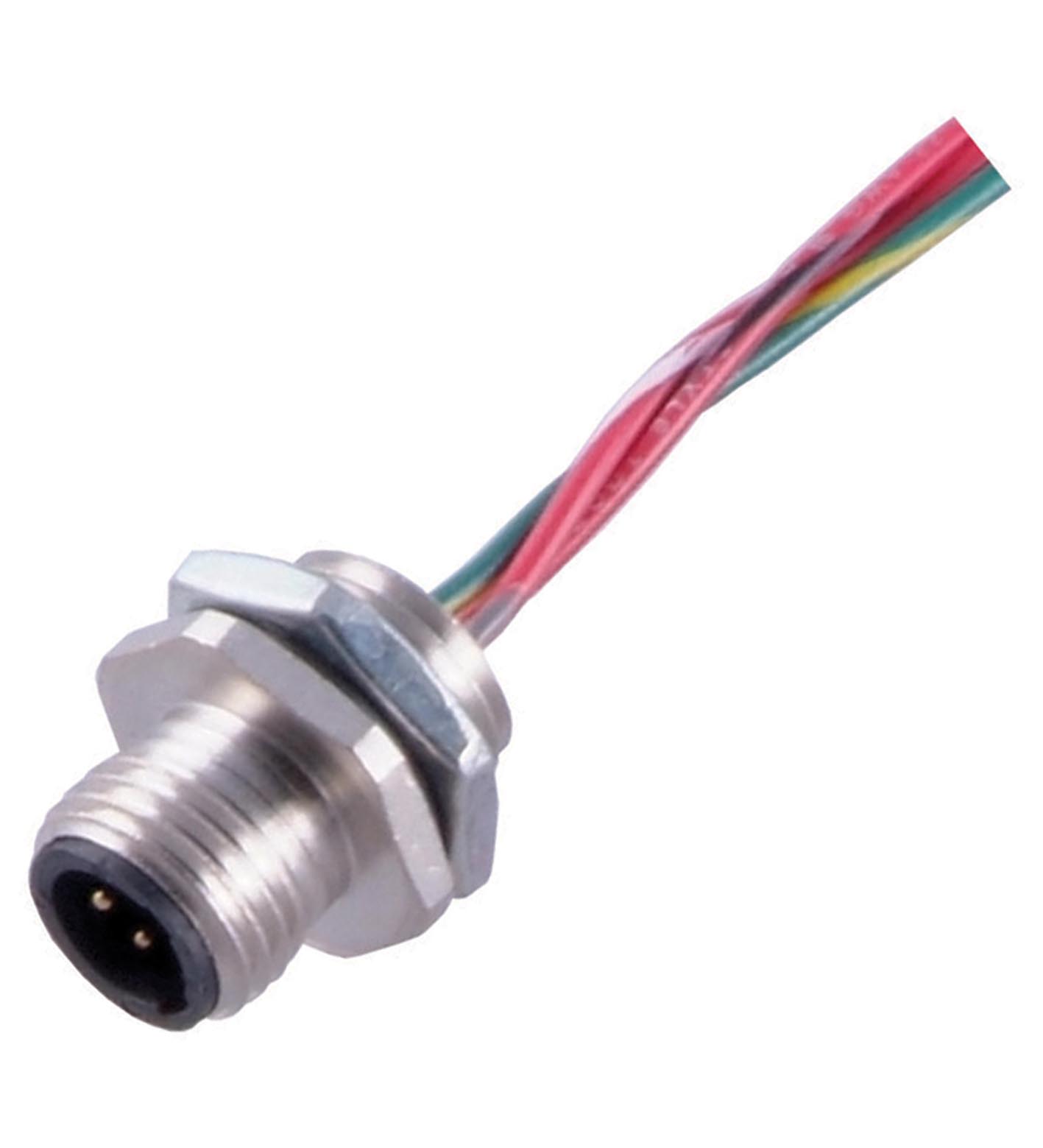

1/4" NPT-V124-G-S-.076M

Male receptacle. Male receptacle, 1/2" UNF / 1/4" NPT, 4-pin. Number of pins: 4. Construction type: straight. Connection 1: Male connector. Threading 1: 1/2". Connection 2: cable end. Threading 2: 1/4...

Male receptacle. Male receptacle, 1/2" UNF / 1/4" NPT, 4-pin. Number of pins: 4. Construction type: straight. Connection 1: Male connector. Threading 1: 1/2". Connection 2: cable end. Threading 2: 1/4". Operating voltage: max. 300 V AC / DC. Operating current: 4 A. UL approval: cULus Listed, General Purpose. Ambient temperature: -40 ... 105 °C (-40 ... 221 °F). Degree of protection: IP67. Connection: Single strand leads. Material: brass, nickel-plated. Contactsgold plated copper alloySleeve connectorPolyamide (PA): . Contacts: gold plated copper alloy. Sleeve connector: Polyamide (PA). Cable: . Cores4 x 0.34 mm2LengthL0.076 m: . Cores: 4 x 0.34 mm2. Length: 0.076 m. Note: 1/4" (6.250mm) - 18 NPT installation thread

Brand	Pepperl Fuchs
Lifecycle status	active
