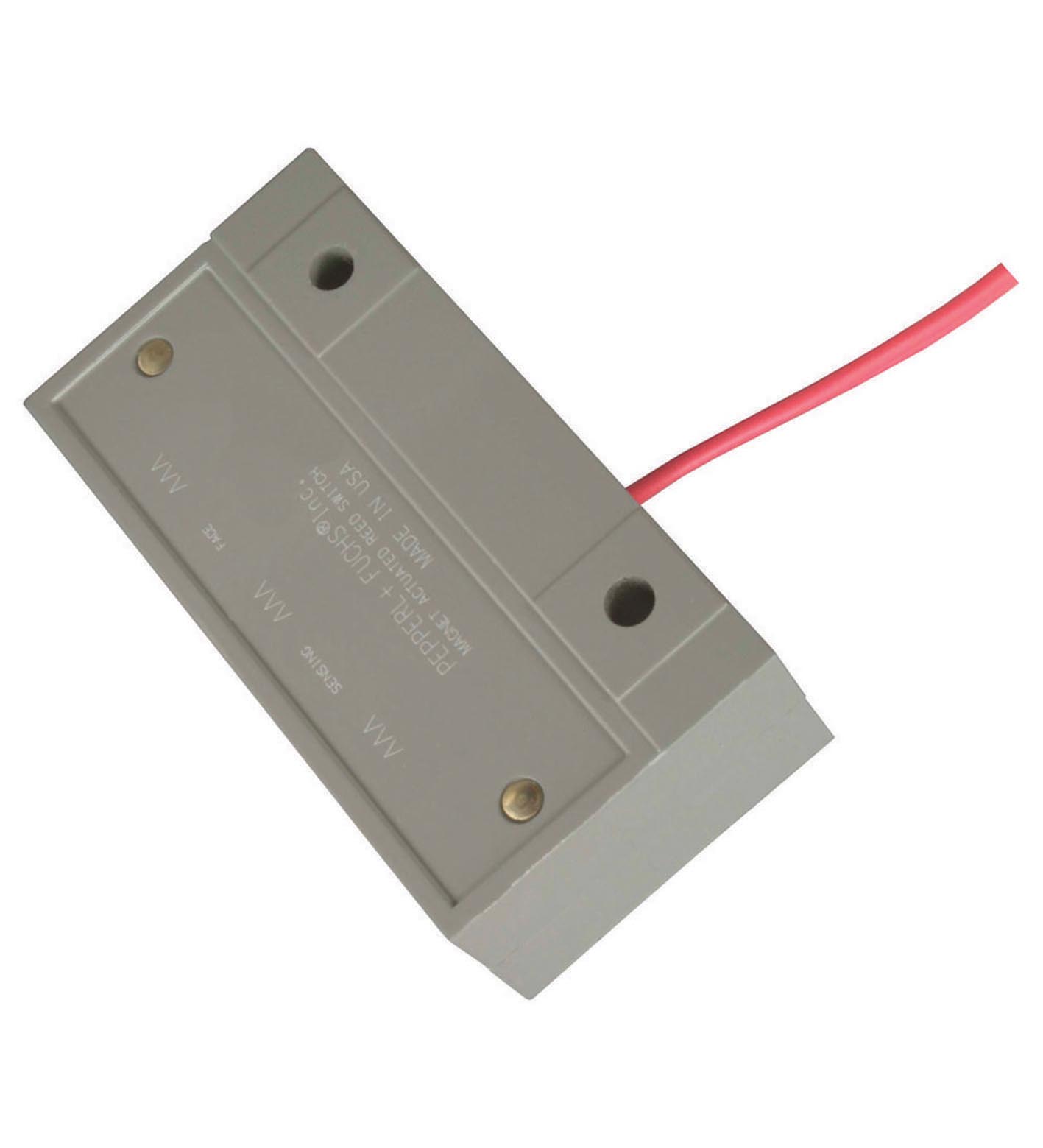

20FR1-6B

Magnetic field sensor. Switching function: Normally open (NO), Output type: Reed Contact, Installation: non-flush, Output type: Reed Contact Normally Open, Construction type: Rectangular, Series: Rect...

Magnetic field sensor. Switching function: Normally open (NO), Output type: Reed Contact, Installation: non-flush, Output type: Reed Contact Normally Open, Construction type: Rectangular, Series: Rectangular type, Threading: without, Operating voltage: 250 V DC, 1.0 A max, 15 W, Connection type: cable, Housing material: Aluminum, Degree of protection: IP68. Switching function: Normally open (NO). Output type: Reed Contact. Rated operating distance: 61 mm. Installation: non-flush. Output type: Reed Contact Normally Open. Mechanical life: 1 x 107 switching cycles. Operating voltage: 250 V DC, 1.0 A max, 15 W. Hysteresis: typ. 25 % ( 15.2 mm ). Release point: ≤ max. 76 mm. Ambient temperature: -25 ... 85 °C (-13 ... 185 °F). Connection type: cable. Core cross section: 16 AWG. Housing material: Aluminum. Sensing face: Aluminum. Degree of protection: IP68. Material: . Activation target21FR1-B: . Activation target: 21FR1-B. Cable: . MaterialPVCLengthL1.83 m: . Material: PVC. Length: 1.83 m. Dimensions: . Width107.9 mmLength55.6 mm: . Width: 107.9 mm. Length: 55.6 mm

Brand	Pepperl Fuchs
Lifecycle status	active
