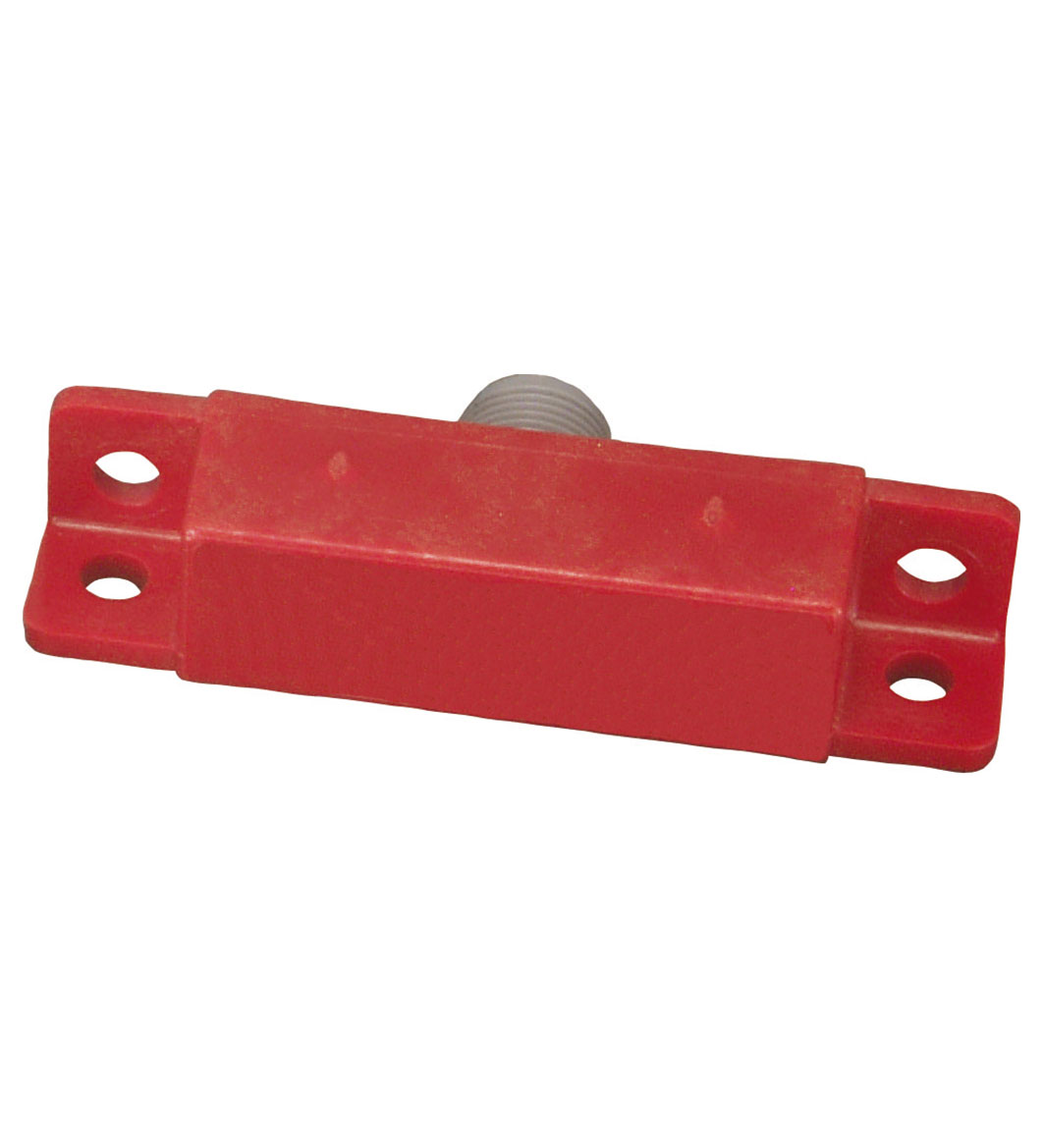

40FY26-33

Magnetic field sensor. Switching function: Normally open (NO), Output type: PNP, Rated operating distance: Use either 41FY1 - 6.4 - 15.2 mm or 41FY2 - 7.6 - 19 mm, Installation: non-flush, Output pola...

Magnetic field sensor. Switching function: Normally open (NO), Output type: PNP, Rated operating distance: Use either 41FY1 - 6.4 - 15.2 mm or 41FY2 - 7.6 - 19 mm, Installation: non-flush, Output polarity: DC, Output type: 3-wire, Construction type: Rectangular, Series: Rectangular -Magnetic Prox. Switches, Threading: without, Operating voltage: 10 ... 30 V DC, Connection type: Connector plug, Housing material: Polycarbonate, Degree of protection: IP67. Switching function: Normally open (NO). Output type: PNP. Rated operating distance: Use either 41FY1 - 6.4 - 15.2 mm or 41FY2 - 7.6 - 19 mm. Installation: non-flush. Output polarity: DC. Output type: 3-wire. Operating voltage: 10 ... 30 V DC. Hysteresis: 5 ... 25 %. Short-circuit protection: yes. Voltage drop: ≤ 2.5 V DC. Repeat accuracy: +/- 3 %. Operating current: ≤ 200 mA. Off-state current: ≤ 30 mA. No-load supply current: ≤ 40 mA. LED indication: switching state. Electrical rating: 10 - 30 V DC. Standard conformity: . StandardsEN IEC 60947-5-2: . Standards: EN IEC 60947-5-2. UL approval: cULus Listed Circuitry: Class 2 Power Source Enclosure Type Rating: Type 1 Supply/Switching Voltage: 30 V DC Output Switching Current: 200 mA. Ambient temperature: -30 ... 85 °C (-22 ... 185 °F). Connection type: Connector plug. Housing material: Polycarbonate. Sensing face: Polycarbonate. Degree of protection: IP67. Connector: . ThreadingM12 x 1Number of pins4: . Threading: M12 x 1. Number of pins: 4. Dimensions: . Width16 mmDepth16 mmLength74.2 mm: . Width: 16 mm. Depth: 16 mm. Length: 74.2 mm

Brand	Pepperl Fuchs
Lifecycle status	active
