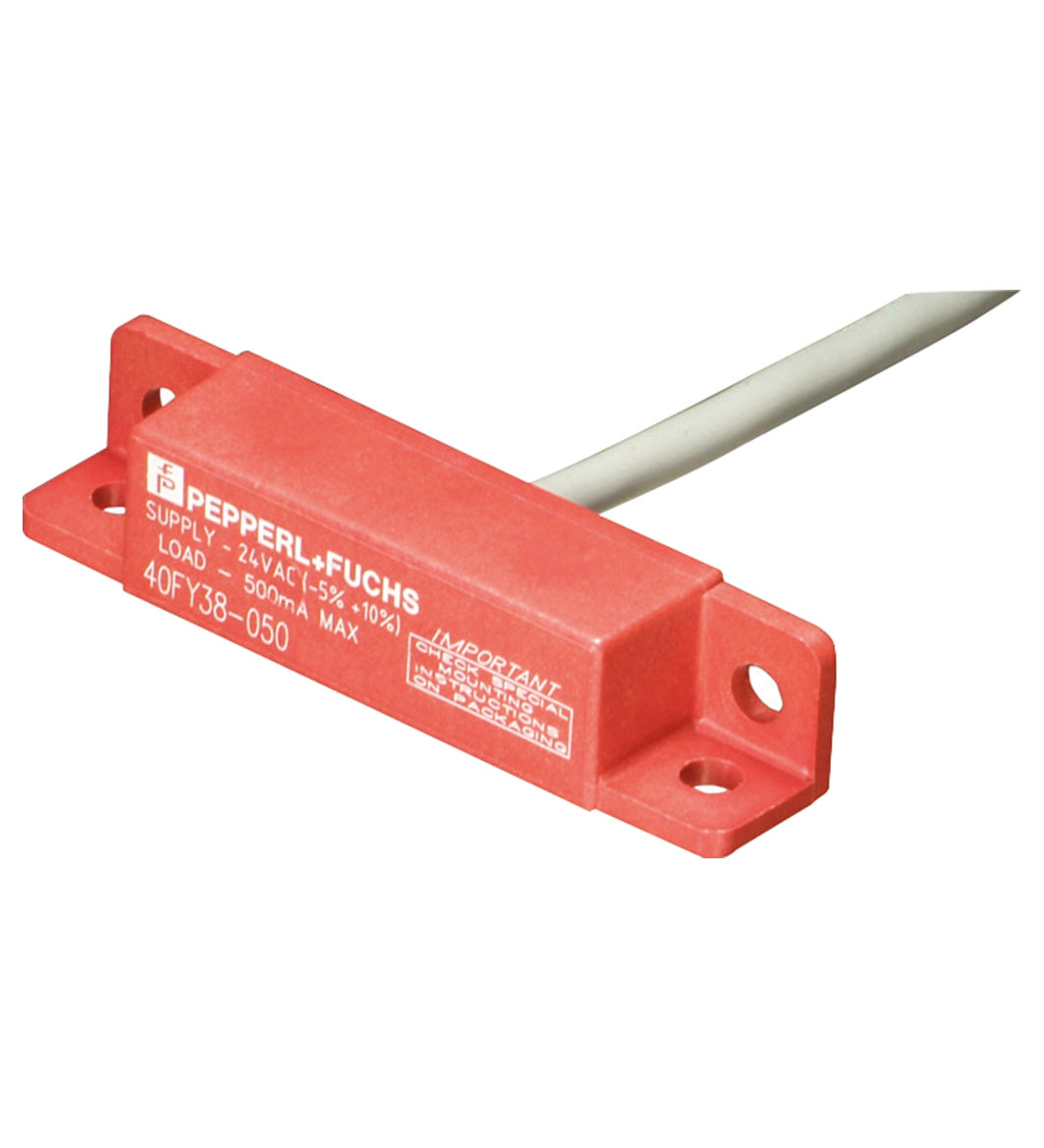

40FY38-50

Magnetic field sensor. Switching function: Normally open (NO), Output type: Two-wire, Rated operating distance: Use either 41FY1 - 6.4 - 15.2 mm or 41FY2 - 7.6 - 19 mm, Installation: non-flush, Output...

Magnetic field sensor. Switching function: Normally open (NO), Output type: Two-wire, Rated operating distance: Use either 41FY1 - 6.4 - 15.2 mm or 41FY2 - 7.6 - 19 mm, Installation: non-flush, Output polarity: AC, Output type: 2-wire AC, Construction type: Rectangular, Series: Rectangular -Magnetic Prox. Switches, Threading: without, Operating voltage: 24 V AC, Connection type: cable, Housing material: Polycarbonate, Degree of protection: IP67. Switching function: Normally open (NO). Output type: Two-wire. Rated operating distance: Use either 41FY1 - 6.4 - 15.2 mm or 41FY2 - 7.6 - 19 mm. Installation: non-flush. Output polarity: AC. Output type: 2-wire AC. Operating voltage: 24 V AC. Voltage drop: 8 V at 500 mA. Operating current: max. 500 mA. Off-state current: 1.5 mA. LED indication: switching state. Electrical rating: 24 V AC. Ambient temperature: -25 ... 70 °C (-13 ... 158 °F). Connection type: cable. Housing material: Polycarbonate. Sensing face: Polycarbonate. Degree of protection: IP67. Cable: . Cable diameter4.8 mm ± 0.3 mmBending radius> 10 x cable diameterMaterialPVCColorgreyNumber of cores2Core cross section0.34 mm2LengthL5 m: . Cable diameter: 4.8 mm ± 0.3 mm. Bending radius: > 10 x cable diameter. Material: PVC. Color: grey. Number of cores: 2. Core cross section: 0.34 mm2. Length: 5 m. Dimensions: . Width16 mmDepth16 mmLength74.2 mm: . Width: 16 mm. Depth: 16 mm. Length: 74.2 mm

Brand	Pepperl Fuchs
Lifecycle status	active
