42306A-15M-05P-RVI50/78

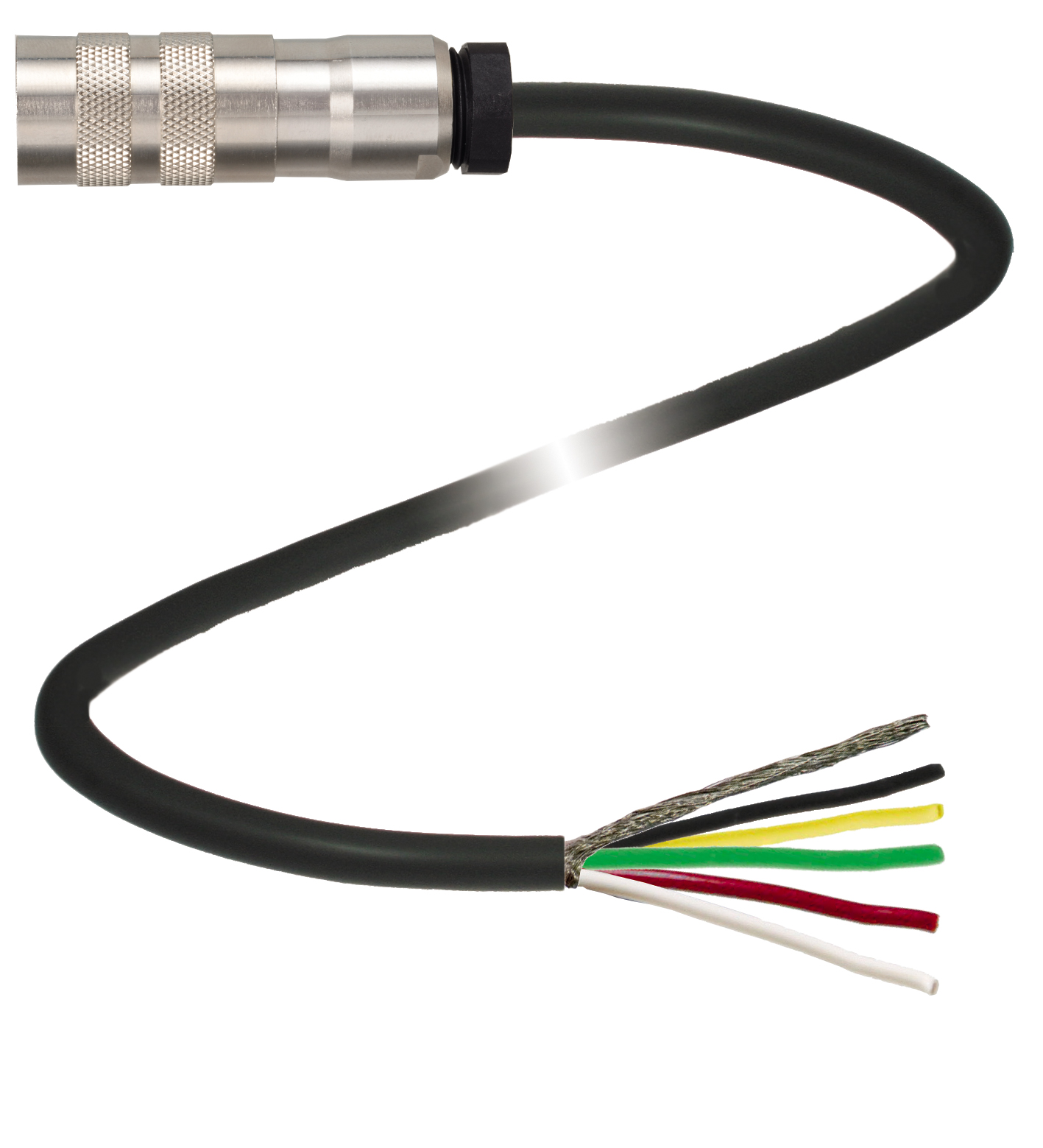

Female cordset. Female cordset single-ended M16 straight 6-pin, PVC cable 5-core, shielded. Connector 1: . ConnectionsocketConstruction typeM16StylestraightLockingscrew connectionNumber of pins6: . Co...

Female cordset. Female cordset single-ended M16 straight 6-pin, PVC cable 5-core, shielded. Connector 1: . ConnectionsocketConstruction typeM16StylestraightLockingscrew connectionNumber of pins6: . Connection: socket. Construction type: M16. Style: straight. Locking: screw connection. Number of pins: 6. Connector 2: . Connectioncable end: . Connection: cable end. Operating voltage: 250 V. Operating current: 5 A. Degree of protection: EN 60529. Ambient temperature: . Plug connector-30 ... 95 °C (-22 ... 203 °F)Cable, fixed installation-25 ... 80 °C (-13 ... 176 °F)Cable, flexing-5 ... 80 °C (23 ... 176 °F): . Plug connector: -30 ... 95 °C (-22 ... 203 °F). Cable, fixed installation: -25 ... 80 °C (-13 ... 176 °F). Cable, flexing: -5 ... 80 °C (23 ... 176 °F). Pollution degree: 1. Plug connector: . Tightening torque0.8 NmTool installationcross-hatched knurlingMating cyclesmin. 500Shieldingshield connected to connector: . Tightening torque: 0.8 Nm. Tool installation: cross-hatched knurling. Mating cycles: min. 500. Shielding: shield connected to connector. Degree of protection: IP67. Cable: according to IEC/EN 60228 (DIN VDE 0295) class 5. Sheath diameter5.6 mmBending radius≥ 35 mmSheath colorblack (similar to RAL 9005)Number of cores5Core cross section0.38 mm2Cores colorCore 1: green Core 2: white Core 3: yellow Core 4: red Core 5: blackShieldtinned copper braiding, 80 % coverageLengthL15 mCable codeLi Y 5 x 0,38: . Sheath diameter: 5.6 mm. Bending radius: ≥ 35 mm. Sheath color: black (similar to RAL 9005). Number of cores: 5. Core cross section: 0.38 mm2. Cores color: Core 1: green Core 2: white Core 3: yellow Core 4: red Core 5: black. Shield: tinned copper braiding, 80 % coverage. Length: 15 m. Cable code: Li Y 5 x 0,38. Plug connector: . BodyCuZn, nickel-platedContact surfaceAg: . Body: CuZn, nickel-plated. Contact surface: Ag. Cable: . SheathingPVCCore insulationPVC: . Sheathing: PVC. Core insulation: PVC

Brand	Pepperl Fuchs
Lifecycle status	active
