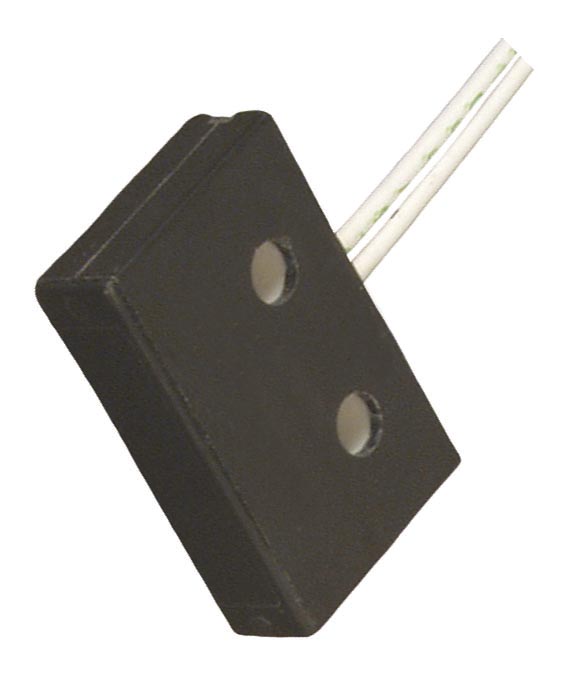

50FR2-3-1

Magnetic field sensor. Switching function: Normally open (NO), Output type: Reed Contact, Installation: non-flush, Output polarity: AC/DC, Output type: 2-wire AC/DC, Construction type: Rectangular, Se...

Magnetic field sensor. Switching function: Normally open (NO), Output type: Reed Contact, Installation: non-flush, Output polarity: AC/DC, Output type: 2-wire AC/DC, Construction type: Rectangular, Series: Rectangular -Magnetic Prox. Switches, Threading: without, Operating voltage: 100 V DC, 250 mA 115 V AC, 250 mA, Connection type: cable PVDF , 914 mm, Housing material: Phenolic, Degree of protection: IP68. Switching function: Normally open (NO). Output type: Reed Contact. Rated operating distance: 11.4 mm. Installation: non-flush. Output polarity: AC/DC. Output type: 2-wire AC/DC. Mechanical life: 3 x 107 operations. Operating voltage: 100 V DC, 250 mA 115 V AC, 250 mA. Hysteresis: 22 ... 145 %. Contact resistance: 0.2 Ω. Insulation resistance: min. 100 MΩ at 200 V DC. Dielectric strength: 200 V AC, 60 Hz. Release point: max. 17.8 mm. Electrical rating: AC supply: 10 VA, 132 V AC, 750 mA DC supply: 10 W, 100 V DC, 300 mA. Ambient temperature: -40 ... 125 °C (-40 ... 257 °F). Connection type: cable PVDF , 914 mm. Core cross section: 0.5 mm2. Housing material: Phenolic. Sensing face: Phenolic. Degree of protection: IP68. Dimensions: . Height8.9 mmWidth35.6 mmDepth22.9 mm: . Height: 8.9 mm. Width: 35.6 mm. Depth: 22.9 mm

Brand	Pepperl Fuchs
Lifecycle status	active
