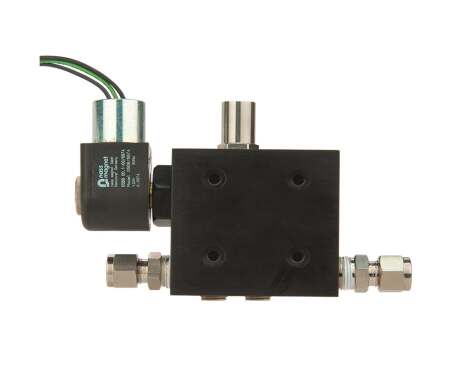

5500-MAN-CD01-*

5500 Series manifold, FM and CSA certified. Manifold valve used in FM and CSA certificated installation. Operating mode: automatic purging. Series: 5500. System: Type Z Purge ; Ex pzc Purge. Hazardous...

5500 Series manifold, FM and CSA certified. Manifold valve used in FM and CSA certificated installation. Operating mode: automatic purging. Series: 5500. System: Type Z Purge ; Ex pzc Purge. Hazardous environment: gas or dust. Rated power: 24 VDC: 4.6 W120 VAC: 6.8 VA, 60 Hz230 VAC: 6.8 VA, 60 HzVoltage tolerance: +/-10%. Fuse rating: DC: 500 mA AC: 80 mA (fuse rating on 5500 control unit). Protective gas supply: instrument grade air or inert gas. Pressure requirement: 1.4 bar (20 psi) to 8.2 bar (120 psi). Purge flow rate: solenoid valves : Cv (flow coefficient) = 1.4 needle valve : Cv (flow coefficient) = 0.25. Ambient temperature: -20 ... 60 °C (-4 ... 140 °F). Connection type: Pneumatic Input port: 3/8 inch Tube compression fitting Output port: 3/8" Tube compression fitting Electrical connection ½" NPTF thread connection w/ 24" (0.61m) flying leads. Degree of protection: type 7 & 9. Material: Housing: anodized aluminum3/8" compression fittings: 316 stainless steelPressure ports: 3/8" NPTFBulkhead fitting: 316 stainless steelMounting bolts: 1/4 - 20, 316 stainless steelSealing washers: UL recognized type 4X. Mass: 1250 g (2.8 lb). Dimensions: see dimensions. FM approval: FM3006713 Explosion proof: Class I, Divison 1, Group A-D, T4, Ta = 60CDIP: Class II, Division 1, Groups F+G, T4, Ta = 60C Nonincendive: Class I, Division 2, Groups A-D, T4, Ta = 60C Suitable for Class II, Division 2, Groups F+G, T4, Ta = 60C. CSA approval: CSA 202633 Class I, Division 1, Groups A-D: Class II, Groups E,F,GClass I, Division 2, Groups A-D

Brand	Pepperl Fuchs
Lifecycle status	active
