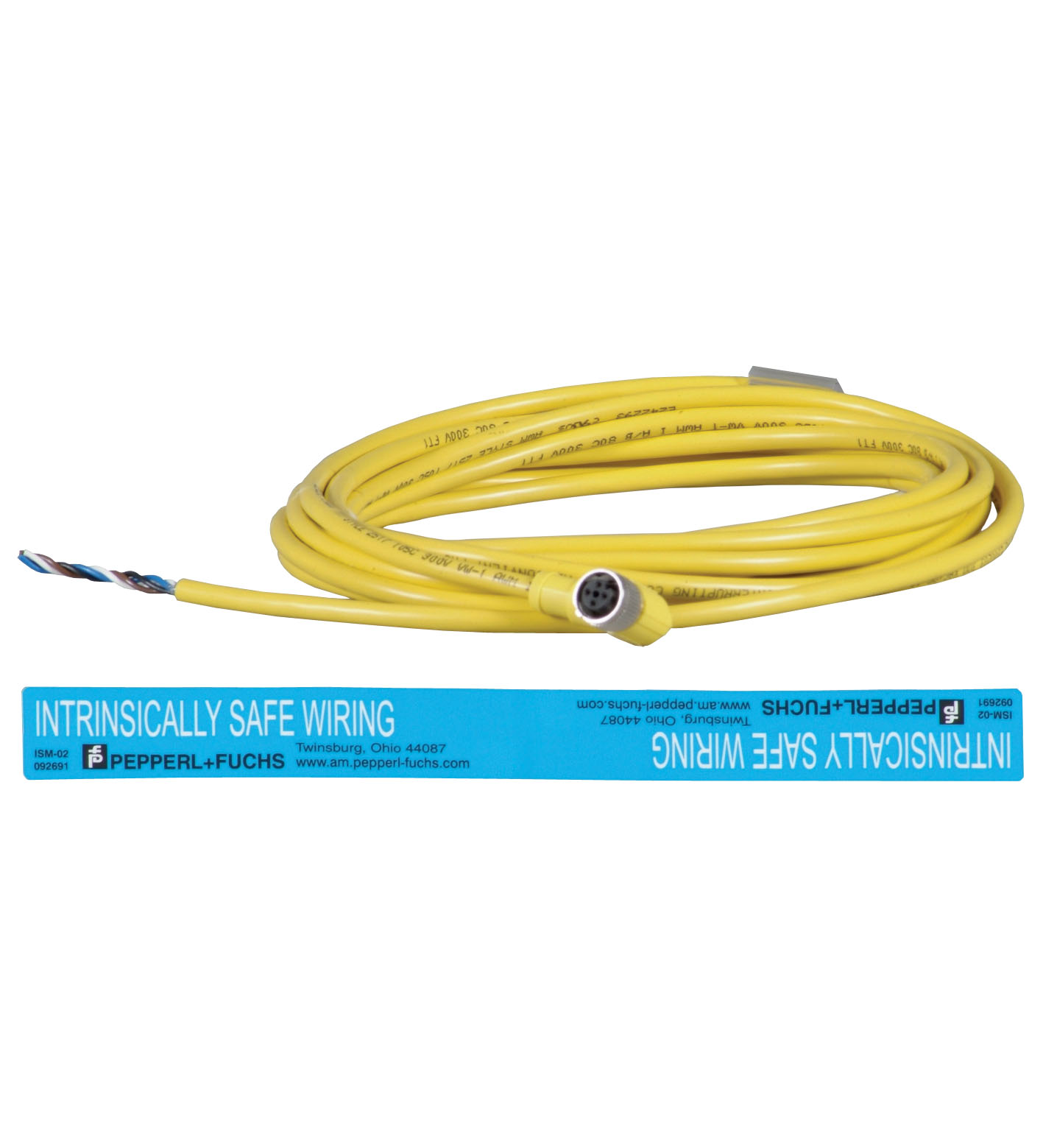

6000-ACC-514485

I.S. cordset and label for the 6000 series purge system. I.S. cordset and label for the 6000 series purge system. Number of pins: 4. Connection 1: socket. Construction type 1: right angle. Threading 1...

I.S. cordset and label for the 6000 series purge system. I.S. cordset and label for the 6000 series purge system. Number of pins: 4. Connection 1: socket. Construction type 1: right angle. Threading 1: M12. Connection 2: cable end. Operating voltage: max. 300 V DC. Test voltage: > 1500 V eff AC. Operating current: max. 4 A. Volume resistance: < 5 mΩ. Ambient temperature: -25 ... 105 °C (-13 ... 221 °F). Pollution degree: 3. Pin diameter: 1 mm. Degree of protection: IP69K. Material: . ContactsCuSnContact surfaceNi/AuBodyTPU , yellowCablePVCSlotted nutZinc die-casting, nickel-platedCore insolationPVC: . Contacts: CuSn. Contact surface: Ni/Au. Body: TPU , yellow. Cable: PVC. Slotted nut: Zinc die-casting, nickel-plated. Core insolation: PVC. Cable: fine-strand, flexible. Sheath diameter∅ 5.9 mmBending radius10 x cable diameterColoryellowCores4 x 0.34 mm2LengthL5 m: . Sheath diameter: ∅ 5.9 mm. Bending radius: 10 x cable diameter. Color: yellow. Cores: 4 x 0.34 mm2. Length: 5 m. Flammability: . Contact carrier94 V-2Housing94 V-2CableVW-1 flame rating from UL: . Contact carrier: 94 V-2. Housing: 94 V-2. Cable: VW-1 flame rating from UL. Supplementary information: Kit contains: 5 m, shielded M12 cable I.S. wire identification tags

Brand	Pepperl Fuchs
Lifecycle status	active
