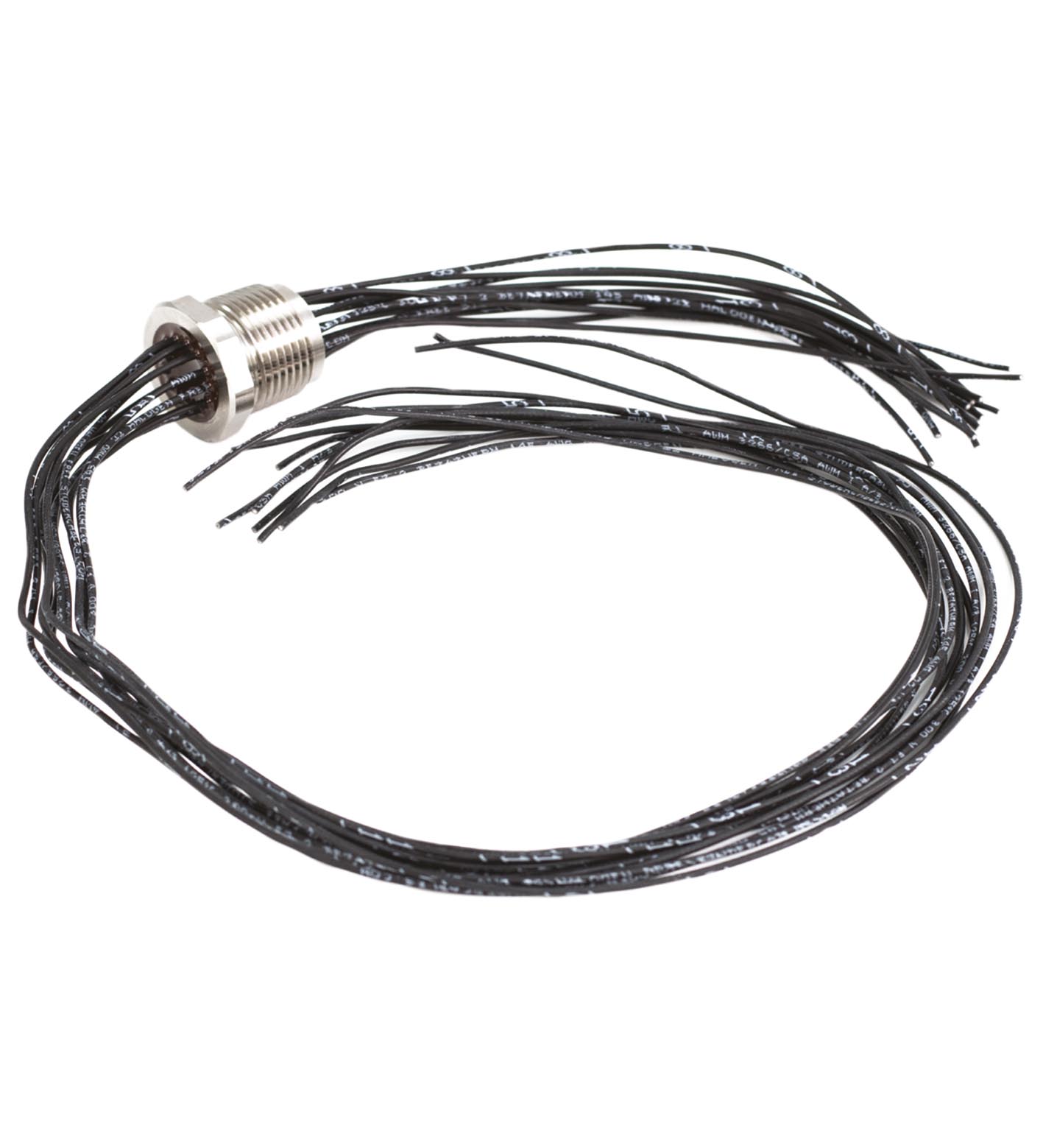

6000-CBLA-ISB-**

6000 Series intrinsically safe cable harness. 6000 Series intrinsically safe cable harness. Series: 6000 Series. System: Type X Purge ; Ex pxb Purge. Connection type: 3/4" NPT, Explosionproof seal. Ca...

6000 Series intrinsically safe cable harness. 6000 Series intrinsically safe cable harness. Series: 6000 Series. System: Type X Purge ; Ex pxb Purge. Connection type: 3/4" NPT, Explosionproof seal. Cable: Gauge: 22 AWG (0.33 mm²)Minimum Insulation Thickness: 0.25 mm (0.010")Outer diameter: 8.00 mm (0.315"). Mass: 800 g for 500 mm cable383 g for 4200 mm cable. Dimensions: 500 mm 4200 mm. System information: Must be used with 6000 series purge system to meet certification requirements.

Brand	Pepperl Fuchs
Lifecycle status	active
