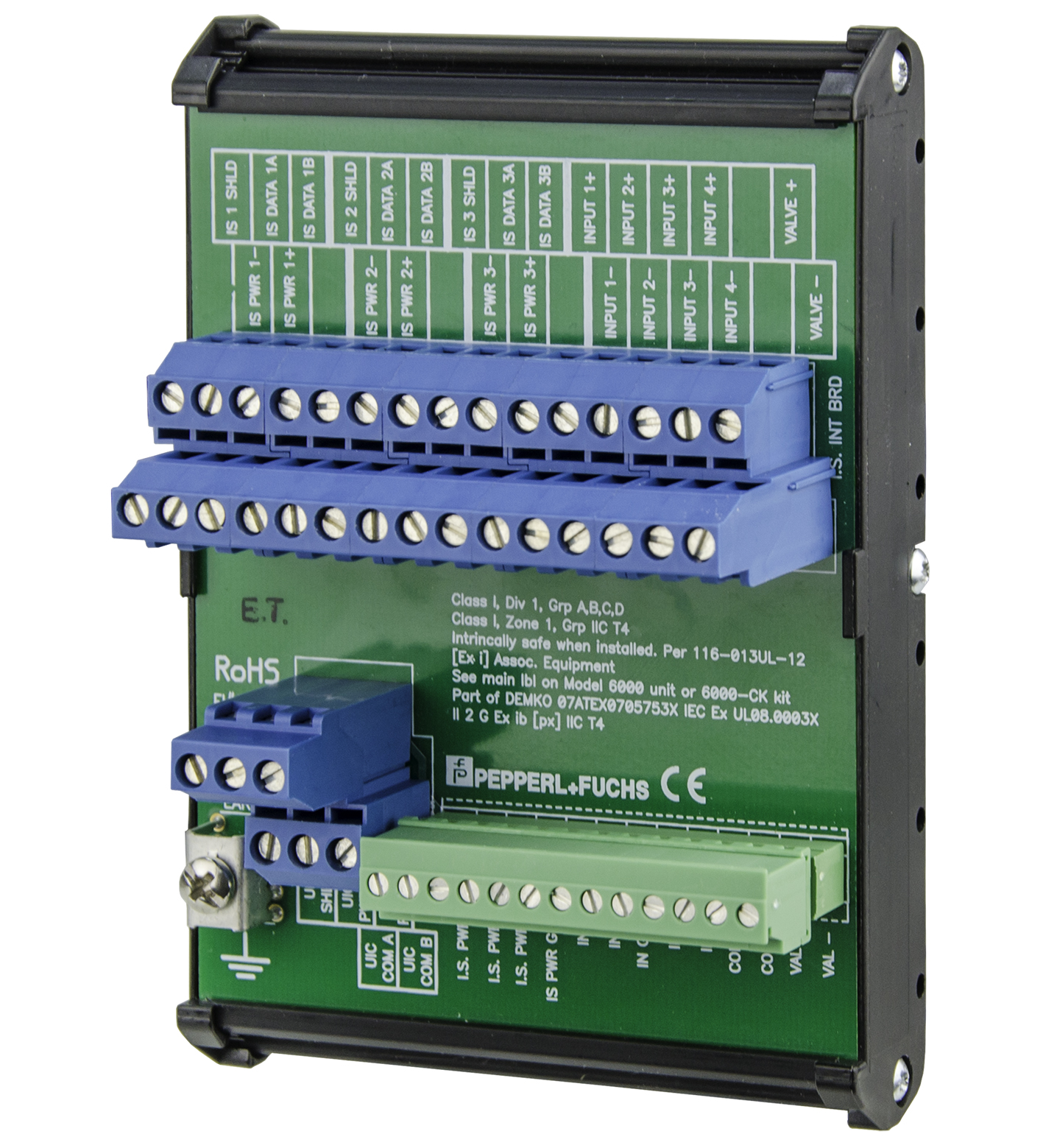

6000-ISB-01

6000 Series intrinsically safe termination board. Termination board for the 6000 Series Purge system. Series: 6000 Series. System: Type X Purge ; Ex pxb Purge. Connection: Shield / ground: capacitivel...

6000 Series intrinsically safe termination board. Termination board for the 6000 Series Purge system. Series: 6000 Series. System: Type X Purge ; Ex pxb Purge. Connection: Shield / ground: capacitively coupled to ground. Connection type: Screw Terminals Field devices: 0.13 - 2.08 mm² max (26 - 14 AWG) Torque 5-7 in-lb (0.6 to 0.8 Nm) Screw Terminals EPCU: 0.08 - 1.31 mm² (28 - 16 AWG) Torque 4 in-lb (0.5 Nm). Degree of protection: IP20. Terminal assembly: . Terminal typeField connectionTerminal capacityMin: 24 AWG (0.2 mm2)Max: 12 AWG (3.3 mm2): . Terminal type: Field connection. Terminal capacity: Min: 24 AWG (0.2 mm2)Max: 12 AWG (3.3 mm2). Mass: 800 g. Dimensions: 83 x 126 x 67 mm (3.3 inch x 5.0 inch x 2.6 inch). Mounting: DIN rail mounting , 2 mounting clips. System information: Must be used with 6000 series purge system to meet certification requirements.

Brand	Pepperl Fuchs
Lifecycle status	active
