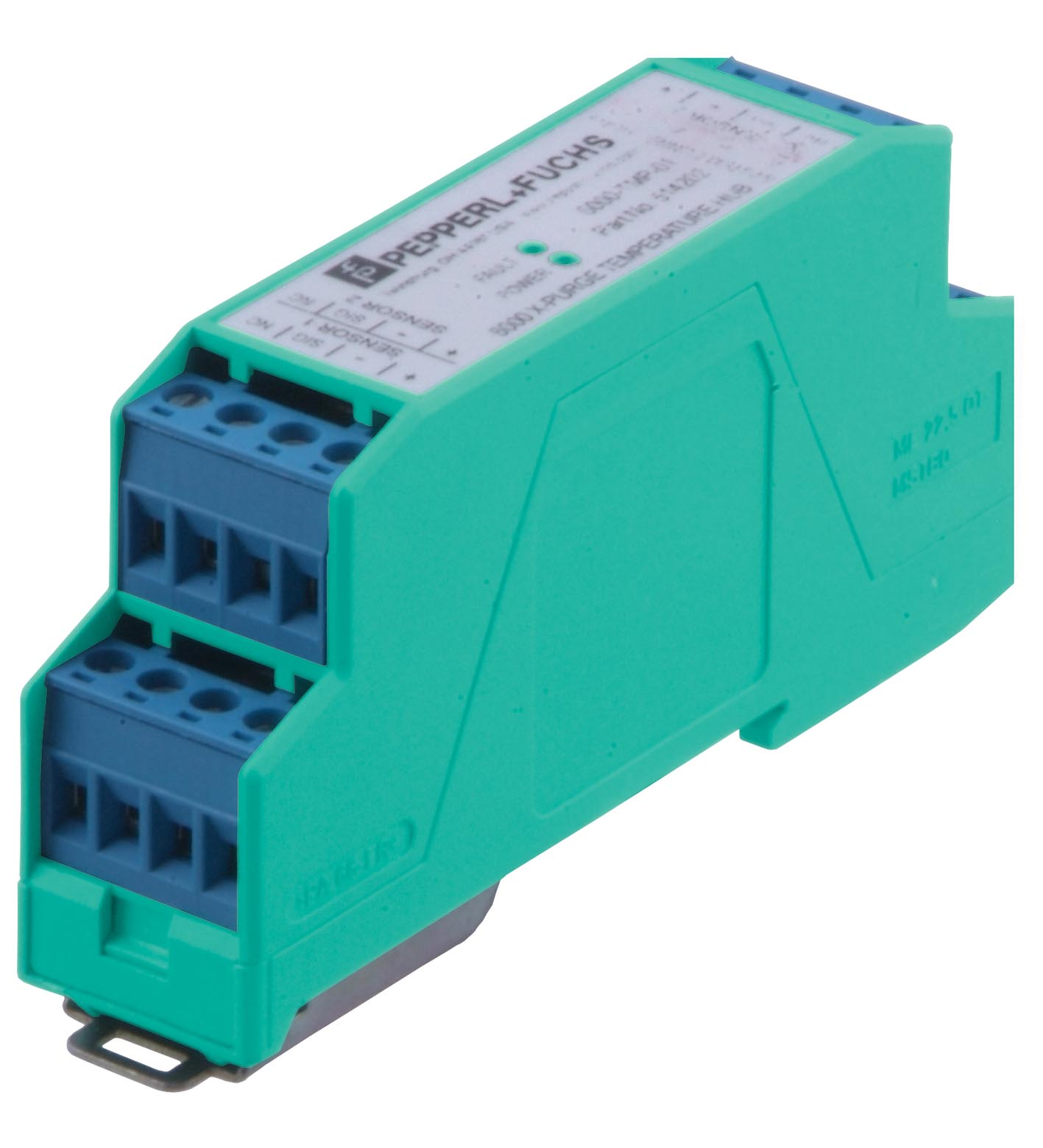

6000-TEMP-01

6000 Series temperature hub. Temperature Hub for 6000 Series Purge system. Series: 6000 Series. System: Type X Purge ; Ex pxb Purge. Connection: . PowerIntrinsically Safe back to 6000 control unitSign...

6000 Series temperature hub. Temperature Hub for 6000 Series Purge system. Series: 6000 Series. System: Type X Purge ; Ex pxb Purge. Connection: . PowerIntrinsically Safe back to 6000 control unitSignalBUS back to 6000 control unitConnectionIntrinsically Safe cabeling: . Power: Intrinsically Safe back to 6000 control unit. Signal: BUS back to 6000 control unit. Connection: Intrinsically Safe cabeling. Rated voltage: 13 V DC. Rated current: max. 10 mA. Distance: 20 m to 6000 Control Unit. Ambient temperature: -20 ... 85 °C (-4 ... 185 °F). Storage temperature: -40 ... 85 °C (-40 ... 185 °F). Relative humidity: < 95 % non-condensing. Vibration resistance: 1 g , 10 ... 100 Hz , all axes. Impact resistance: 30 g, 11 ms, all axes. Connection type: screw terminals. Core cross section: 12 ... 30 AWG. Housing material: Akulon S225-KS. Degree of protection: IP20. Mass: approx. 110 g. Dimensions: 99 mm x 52 mm x 23 mm. Mounting: panel or DIN rail mounting. EU-type examination certificate: UL/Demko 07 ATEX 0705753X. UL approval: File no: E184741. cULusFile no: E184741: . cULus: File no: E184741. IECEx approval: IECEx UL 08.0003X

Brand	Pepperl Fuchs
Lifecycle status	active
