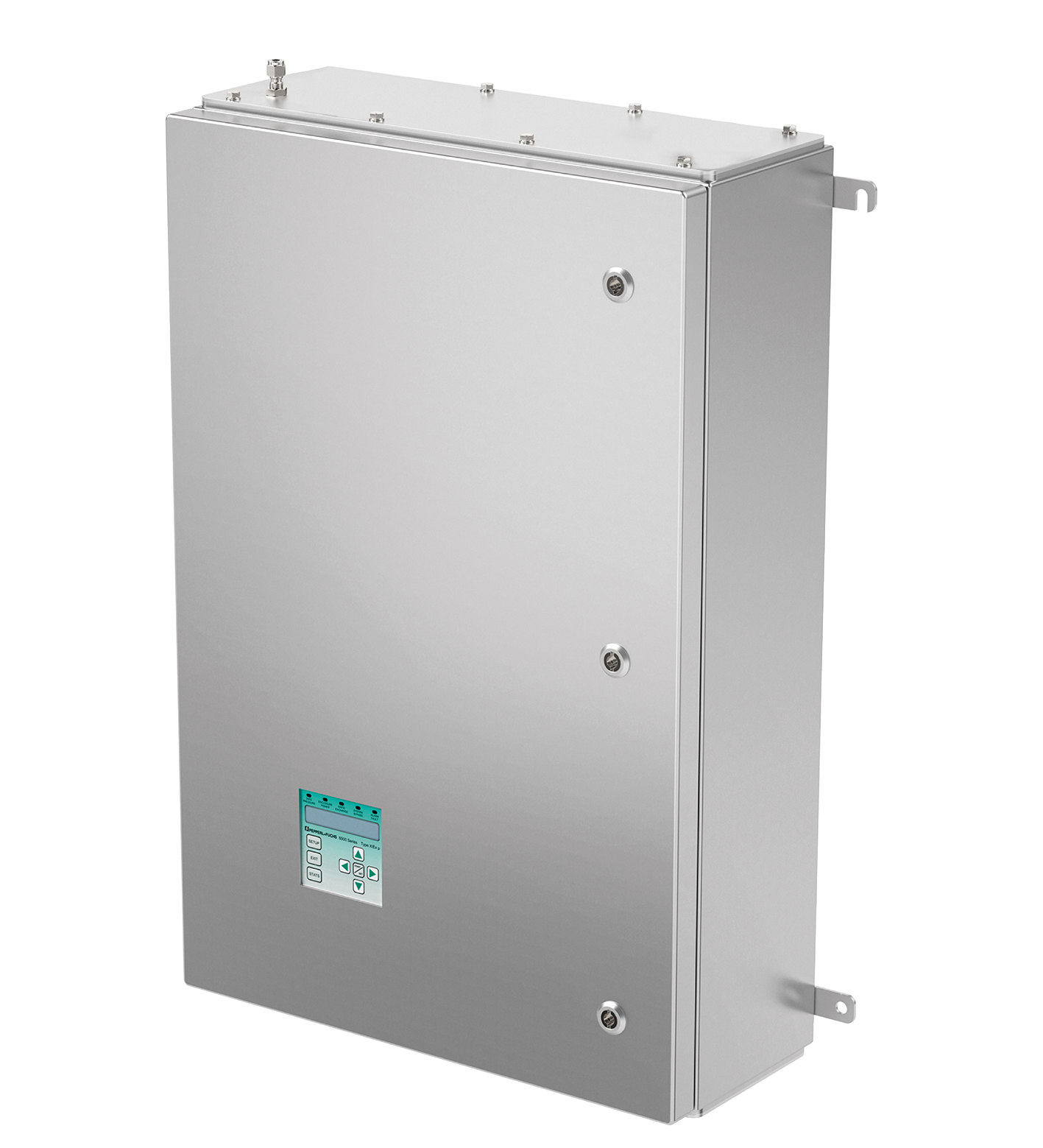

6100-MP-EX-*
Ex pxb motor purge and pressurization control unit. 6100 series Ex pxb motor purge and pressurization system control unit. Operating mode: manual, semi-automatic, or fully automatic - programmable. Se...
Ex pxb motor purge and pressurization control unit. 6100 series Ex pxb motor purge and pressurization system control unit. Operating mode: manual, semi-automatic, or fully automatic - programmable. Series: 6100 Series. System: Ex pxb Purge. Number of volume exchanges: 4 to 19. Hazardous environment: gas. Rated voltage: 100 ... 250 V AC, 50 ... 60 Hz / 0.2 A 20 ... 30 V DC / 0.6 A. Connection: . PowerEx e terminal blocksConnection6000-ISB DIN mounted terminal: . Power: Ex e terminal blocks. Connection: 6000-ISB DIN mounted terminal. Input type: IS 1: Dedicated for 6000-TEMP-01 (optional)IS 2: Dedicated for 6100-MP-LPPInput 1: SRM, discrete input, Intrinsically SafeInput 2: SRM, discrete input, Intrinsically SafeInput 3: Dedicated for EPV-6100-MP, Flow SignalInput 4: Dedicated high pressure switch, Max Pressure Signal (optional). Output I: AUX 1. Output typeDry contacts, SPDTInrush current5 AContact loading2 A at 240 V AC resistive load 2 A at 24 V DC: . Output type: Dry contacts, SPDT. Inrush current: 5 A. Contact loading: 2 A at 240 V AC resistive load 2 A at 24 V DC. Output II: AUX 2. Output typeDry contacts, SPDTInrush current5 AContact loading2 A at 240 V AC resistive load 2 A at 24 V DC: . Output type: Dry contacts, SPDT. Inrush current: 5 A. Contact loading: 2 A at 240 V AC resistive load 2 A at 24 V DC. Output III: enclosure 1 and 2. Output typeDry contacts (2) SPST, NOInrush current72 AContact loading8 A at 240 V AC / 120 V AC resistive load 8 A at 24 V DC: . Output type: Dry contacts (2) SPST, NO. Inrush current: 72 A. Contact loading: 8 A at 240 V AC / 120 V AC resistive load 8 A at 24 V DC. LED indication: Safe pressure: Blue - safe pressure is achieved Enclosure power: Green - power on; Red - power off Rapid exchange: Blue - purging is running System bypass: Yellow - bypass is activated Alarm fault: Red (blinking) - any alarm input detected; Red (solid) - fault. Protective gas supply: regulated and filtered air or inert gas. Pressure requirement: regulated side: 1.4 ... 8.3 bar [20 ... 120 psig) unregulated side: 4.1 ... 8.3 bar [65 ... 120 psig). Safe pressure: 0.62 mbar [0.25 in wc / 6.4 mm wc] minimum for 6100-MP-LPP-*. Purge flow and enclosure pressure rate: 2000 l/m ... 14000 l/m see EPV-6100 datasheet for flow rate steps. Valve flows: pressurization valve: manual gate valvepurging valve: pilot drive angle seat valvepilot valve: intrinsically safe solenoid valve. Electromagnetic compatibility: . Directive 2014/30/EUEN 61326-1:2013: . Directive 2014/30/EU: EN 61326-1:2013. RoHS: . Directive 2011/65/EU (RoHS)EN 50581:2012: . Directive 2011/65/EU (RoHS): EN 50581:2012. Ambient temperature: 0 ... 60 °C (32 ... 140 °F) Standard version-20 ... 60 °C (-4 ... 140 °F) Low temp version, no regulator version. Storage temperature: 0 ... 80 °C (32 ... 176 °F) Standard version -20 ... 80 °C (-4 ... 176 °F) Low temp version, no regulator version. Relative humidity: 5 ... 95 %, noncondensing. Vibration resistance: 1 g , 10 ... 150 Hz , all axes. Impact resistance: 15 g, 11 ms, all axes. Connection type: Terminals. Core cross section: see manual. Degree of protection: IP66. Cable entry: 3 x M16 holes, plugs that are included are not hazardous-location rated 4 x M20 holes, plugs that are included are not hazardous-location rated. Material: inlet and outlet: 1¼ inch NPTF, 316 stainless steelinternal piping: copper bulkhead fittings: 316 stainless steel (no regulator model) gate valve: bronze, Grafoil seals purging valve: 316 stainless steel, PTFE sealssolenoid valve: brasshousing: 316L stainless steelregulator: zinc (standard temp); aluminum (low temp); N/A (no regulator)filter (pneumatic): aluminumtubing (pneumatic): nylonfittings (pneumatic): nickel-plated brass. Mass: 47.2 kg (104 lb). Dimensions: 897 mm x 583 mm x 216 mm (35.3 in x 23.0 in x 8.5 in). Height897 mm (including lifting tabs at the top and the connection ports at the bottom)Width583 mm (including the mounting brackets)Depth216 mm: . Height: 897 mm (including lifting tabs at the top and the connection ports at the bottom). Width: 583 mm (including the mounting brackets). Depth: 216 mm. Certificate: CML 19 ATEX 1425X. Marking II 2G Ex db eb ib [ib Gb][pxb Gb] IIC T4 Gb: . Marking: II 2G Ex db eb ib [ib Gb][pxb Gb] IIC T4 Gb. Directive conformity: . Directive 2014/34/EUEN IEC 60079-0:2018 EN 60079-1:2014 EN 60079-2:2014 EN 60079-7:2015 EN 60079-11:2012: . Directive 2014/34/EU: EN IEC 60079-0:2018 EN 60079-1:2014 EN 60079-2:2014 EN 60079-7:2015 EN 60079-11:2012. IECEx approval: IECEx CML 19.0156X Ex db eb ib [ib Gb][pxb Gb] IIC T4 Gb. Supplementary information: EC-Type Examination Certificate, Statement of Conformity, Declaration of Conformity, Attestation of Conformity and instructions have to be observed where applicable. For information see www.pepperl-fuchs.com. Supplemental Standards : EN 61010-1:2010
| Brand | Pepperl Fuchs |
| Lifecycle status | active |
