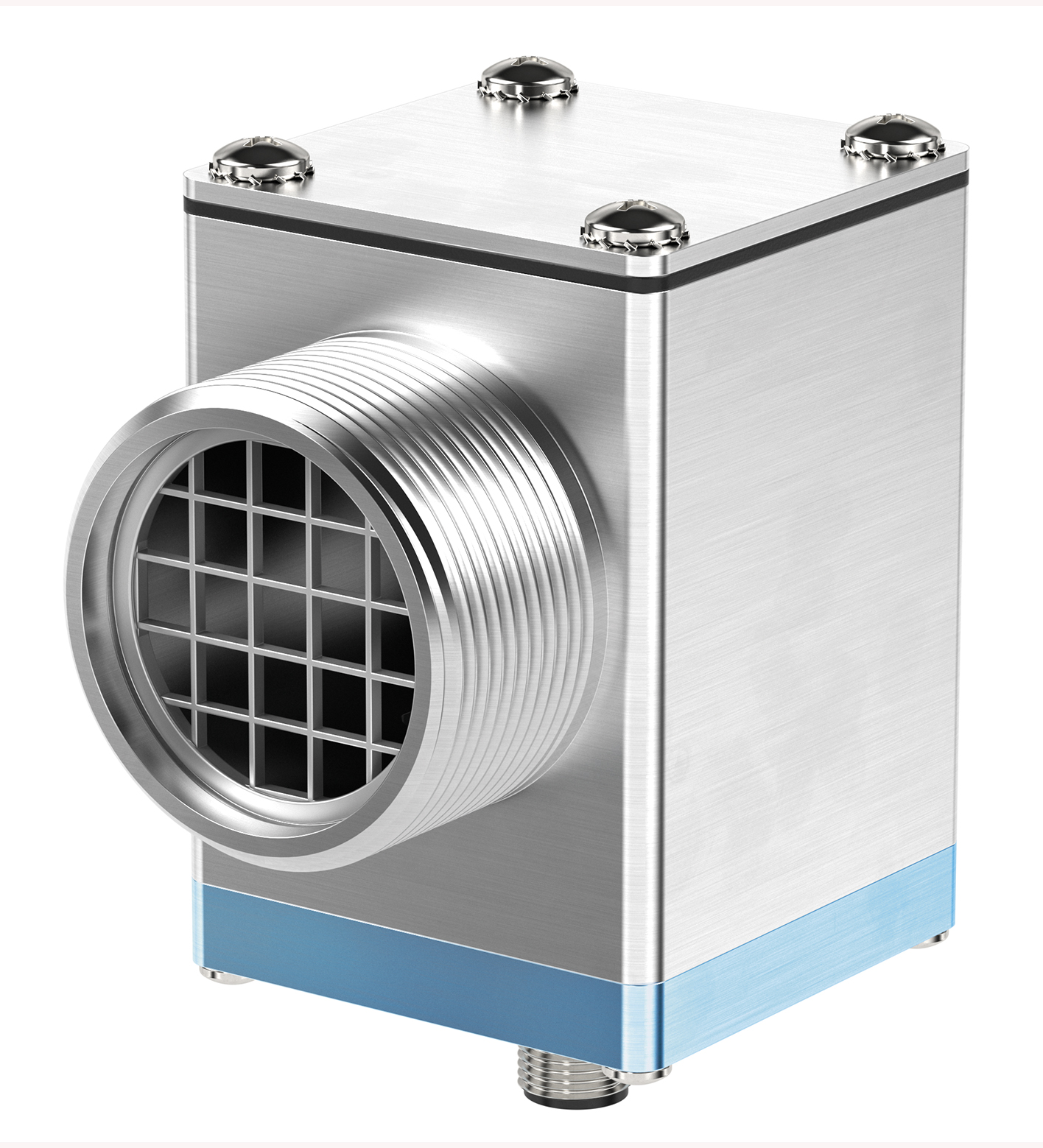

6100-MP-LPP-*
6100 series pressure sensor. 6100 series purge and pressurization system pressure sensor. Series: 6100 Series. System: Ex pxb Purge. Hazardous environment: gas. Connection: . PowerIntrinsically safe c...
6100 series pressure sensor. 6100 series purge and pressurization system pressure sensor. Series: 6100 Series. System: Ex pxb Purge. Hazardous environment: gas. Connection: . PowerIntrinsically safe connection to the 6100 control unitSignalBus connection to 6100 control unitConnectionM12 connector, 4-pin, max length 30 m: . Power: Intrinsically safe connection to the 6100 control unit. Signal: Bus connection to 6100 control unit. Connection: M12 connector, 4-pin, max length 30 m. LED indication: power: green. Maximum pressure: 0 ... 25 mbar (0 ... 10 in wc) pressure range. Electromagnetic compatibility: . Directive 2014/30/EUEN 61326-1:2013: . Directive 2014/30/EU: EN 61326-1:2013. RoHS: . Directive 2011/65/EU (RoHS)EN IEC 63000:2018: . Directive 2011/65/EU (RoHS): EN IEC 63000:2018. Ambient temperature: -20 ... 60 °C (-4 ... 140 °F). Storage temperature: -30 ... 80 °C (-22 ... 176 °F). Relative humidity: 5 ... 95 %, noncondensing. Vibration resistance: 10 ... 100 Hz , 1 g, all axes. Impact resistance: 30 g, 11 ms, all axes. Material: 5052 anodized aluminum, 6061T6 anodized aluminum. Installation: - any orientation to enclosure- not gravity dependent. Mass: approx. 0.5 kg (1.1 lb). Dimensions: 57.2 mm x 81.1 mm x 82.6 mm (2.3" x 3.2" x 3.3"). Height146 mmWidth127.5 mmDepth82.5 mm: . Height: 146 mm. Width: 127.5 mm. Depth: 82.5 mm. Mounting: 1 1/2" NPT knockout (50.8 mm (2") hole) with sealing washer and nut. Certificate: CML 19 ATEX 1425X. Marking II 2 G Ex ib [pxb Gb] IIC T4 Gb: . Marking: II 2 G Ex ib [pxb Gb] IIC T4 Gb. Directive conformity: . Directive 2014/34/EUEN IEC 60079-0:2018EN 60079-2:2014EN 60079-11:2012: . Directive 2014/34/EU: EN IEC 60079-0:2018EN 60079-2:2014EN 60079-11:2012. IECEx approval: IECEx CML 19.0156X Ex ib [pxb Gb] IIC T4 Gb. Supplementary information: EC-Type Examination Certificate, Statement of Conformity, Declaration of Conformity, Attestation of Conformity and instructions have to be observed where applicable. For information see www.pepperl-fuchs.com. Supplemental Standards : EN 61010-1:2010
| Brand | Pepperl Fuchs |
| Lifecycle status | active |
