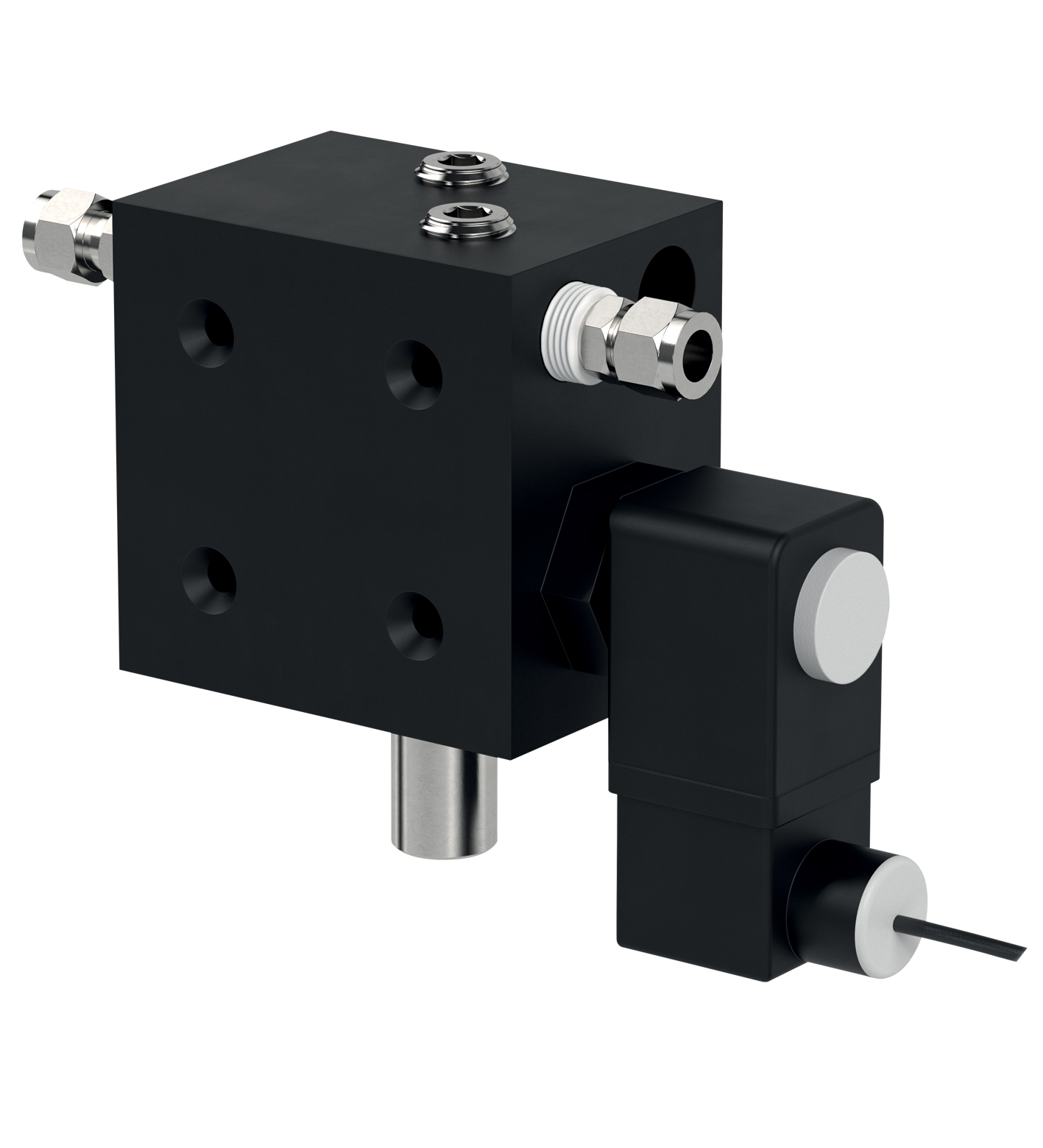

6500-MAN-DV

6500 Series digital valve. Type Ex px purge and pressurization system. Operating mode: automatic purging + pressurization. Series: 6500. System: Ex pxb Purge , Ex pyb Purge. Hazardous environment: gas...

6500 Series digital valve. Type Ex px purge and pressurization system. Operating mode: automatic purging + pressurization. Series: 6500. System: Ex pxb Purge , Ex pyb Purge. Hazardous environment: gas or dust. Rated power: Intrinsically safe supply from the 6500 control unit. Protective gas supply: instrument grade air or inert gas. Pressure requirement: 1.4 (20 psig) to 8.3 bar (120 psig). Safe pressure: Gas: 0.87 mbar (0.35'' wc) Dust: 0.87 mbar (0.35'' wc) Gas+Dust: 0.87 mbar (0.35'' wc). Purge flow rate: Digital valve : Cv (flow coefficient) = 1.4. Connections: Inlet and outlet of valves3/8"NPT, double ferrule 10mm compression fittings (included). Ambient temperature: -28 ... 50 °C (-18.4 ... 122 °F). Storage temperature: -28 ... 50 °C (-18.4 ... 122 °F). Connection type: 10 mm stainless steel ferrule tube fittings. Cable gland: I.S. connection type: PG9, DIN 43650-A connector. Degree of protection: IP65 (DIN connector). Material: Housing: marine-grade aluminum (6082-T6 or 6061-T6)3/8" compression fittings: 316L stainless steelPressure ports: 3/8" NPT to 10mmBulkhead fitting: 10 mm fitting, 316L stainless steelMounting bolts: 1/4 - 20 (-20 =Threads per Inch), 316 stainless steelSealing washers: silicone rubberInput/Output ports: 10 mm tube compression fittings. Mass: 907 g (2.0 lbs). Dimensions: 75.5 x 97.9 x 122.4 mm (2.97'' x 3.86'' x 4.82'')

Brand	Pepperl Fuchs
Lifecycle status	active
