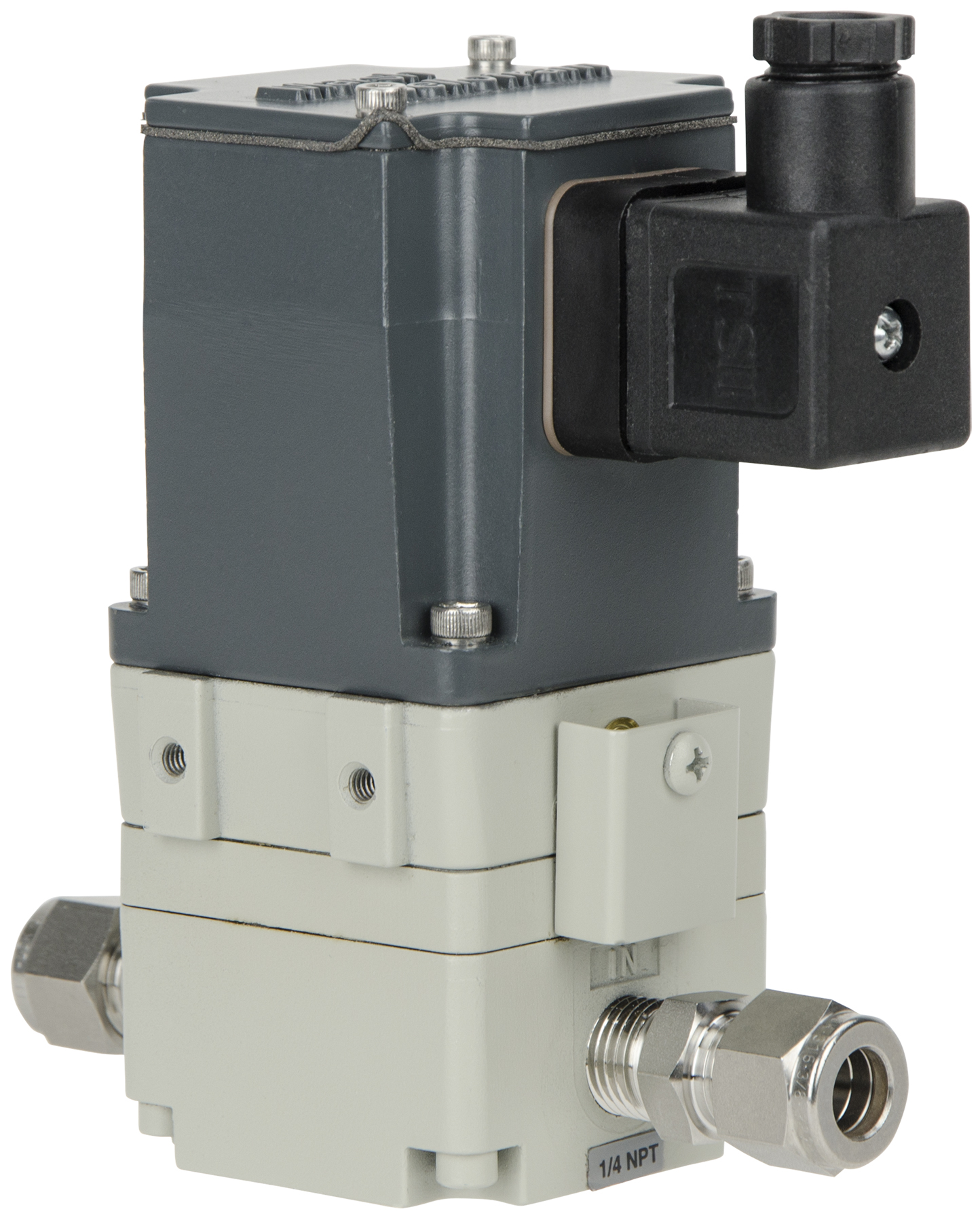

6500-MAN-PV-01

6500 Series proportional valve. Type Ex px purge and pressurization system. Operating mode: automatic purging + pressurization. Series: 6500. System: Ex pxb Purge , Ex pyb Purge. Supply: I.S. 4 to 20...

6500 Series proportional valve. Type Ex px purge and pressurization system. Operating mode: automatic purging + pressurization. Series: 6500. System: Ex pxb Purge , Ex pyb Purge. Supply: I.S. 4 to 20 mA loop poweredEntity Parameters:Ui = 30 VIi = 200 mAC = μSL = 0 μHP1 = 1 w total. Protective gas supply: instrument grade air or inert gas. Pressure requirement: 1.0 bar (15 psi) to 8.3 bar (120 psi). Safe pressure: Gas: 0.35'' wc (8,88 mm wc) (0.88 mbar/ 88 pa) Dust: 0.35'' wc (8,88 mm wc) (0.88 mbar/ 88 pa) Gas+Dust: 0.35'' wc (8,88 mm wc) (0.88 mbar/ 88 pa). Valve flows: 6500-MAN-PV: Proportional valvePurging/pressurization/dilution: 17 l/min to 226 l/min (0.6 to 8 scfm). Connections: Inlet and outlet of valves6500-MAN-PV-01: 3/8"NPT, double ferrule 10mm compression fittings (included). Ambient temperature: -20 ... 60 °C (-4 ... 140 °F). Storage temperature: -20 ... 60 °C (-4 ... 140 °F). Connection type: 10 mm stainless steel ferrule tube fittings. Cable gland: I.S. connection: Hirschmann DIN 43650-A connector. Degree of protection: IP65 (DIN connector). Material: painted aluminum body. Mass: 700 g (1.5 lbs). Dimensions: 134 x 57 x 80 mm (5.3" x 2.3" x 3.2"). EU-type examination certificate: ATEX II 1 G EEx ia IIC T4Tamb= -20 to 60 °C. Directive conformity: CE

Brand	Pepperl Fuchs
Lifecycle status	active
