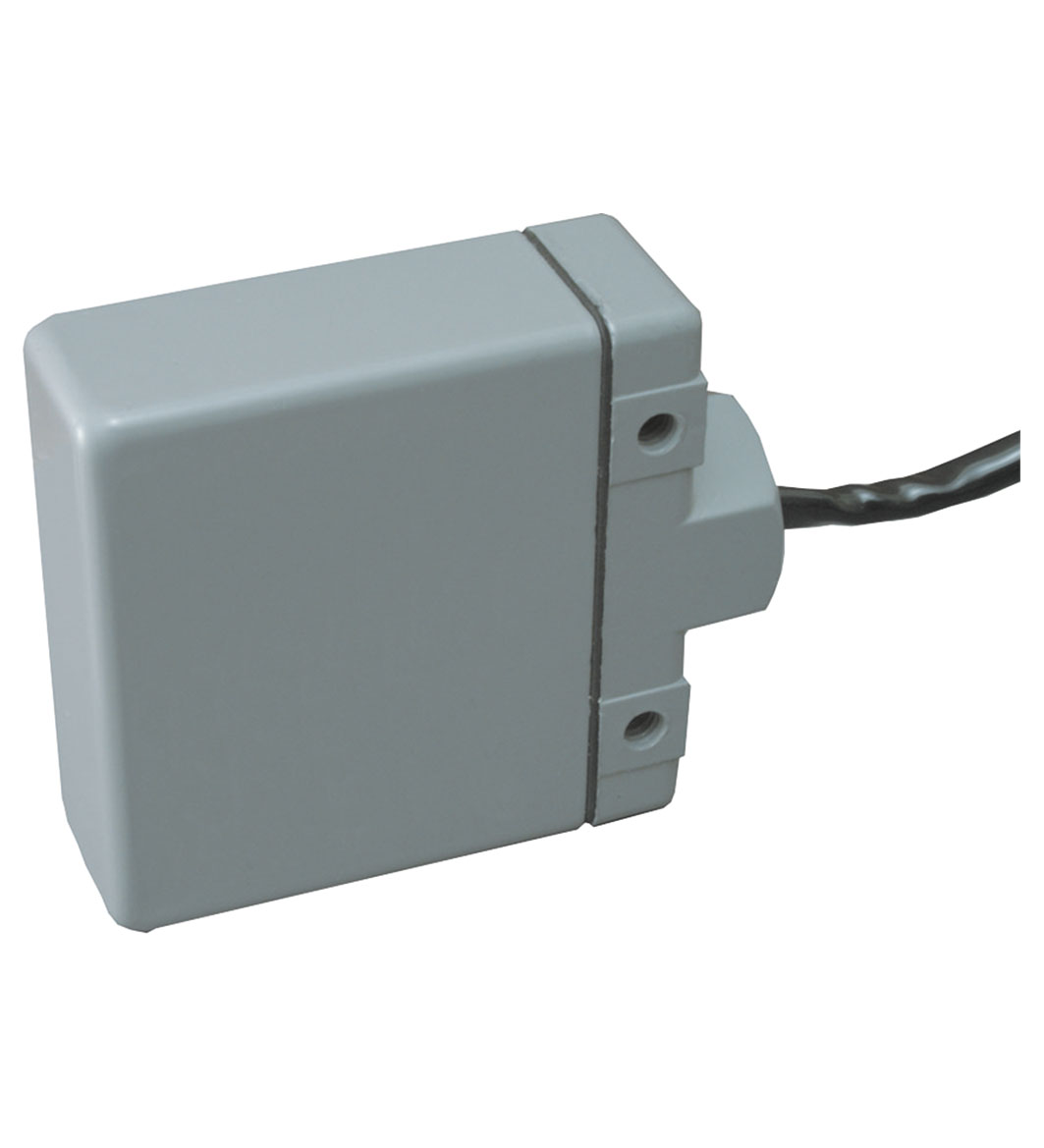

6FR1-6

Magnetic field sensor. Switching function: Normally open (NO), Output type: Reed Contact, Installation: non-flush, Construction type: Rectangular, Series: Rectangular type, Threading: without, Connect...

Magnetic field sensor. Switching function: Normally open (NO), Output type: Reed Contact, Installation: non-flush, Construction type: Rectangular, Series: Rectangular type, Threading: without, Connection type: cable, Housing material: Aluminum, Degree of protection: IP68. Switching function: Normally open (NO). Output type: Reed Contact. Rated operating distance: 19.1 mm. Installation: non-flush. Mechanical life: 5 x 107 switching cycles. Switching frequency: 100 Hz. Repeat accuracy: ≤ 0.13 mm. No-load supply current: ≤ 50 mA. Reed bounce time: max. 0.5 ms. Electrical rating: AC supply: 15 VA, 500 mA, 280 V RMS DC supply: 15 W, 500 mA, 400 V DC. Standards: EN 60947-5-2. Ambient temperature: -20 ... 83 °C (-4 ... 181.4 °F). Connection type: cable. Housing material: Aluminum. Sensing face: Aluminum. Degree of protection: IP68. Cable: . MaterialPVCCore cross section1.5 mm2LengthL1.83 m: . Material: PVC. Core cross section: 1.5 mm2. Length: 1.83 m. Dimensions: . Width81 mmDepth31 mmLength93 mm: . Width: 81 mm. Depth: 31 mm. Length: 93 mm. Note: Full sensing range available for low carbon steel 25.4 x 76.2 x 6.35mm

Brand	Pepperl Fuchs
Lifecycle status	active
