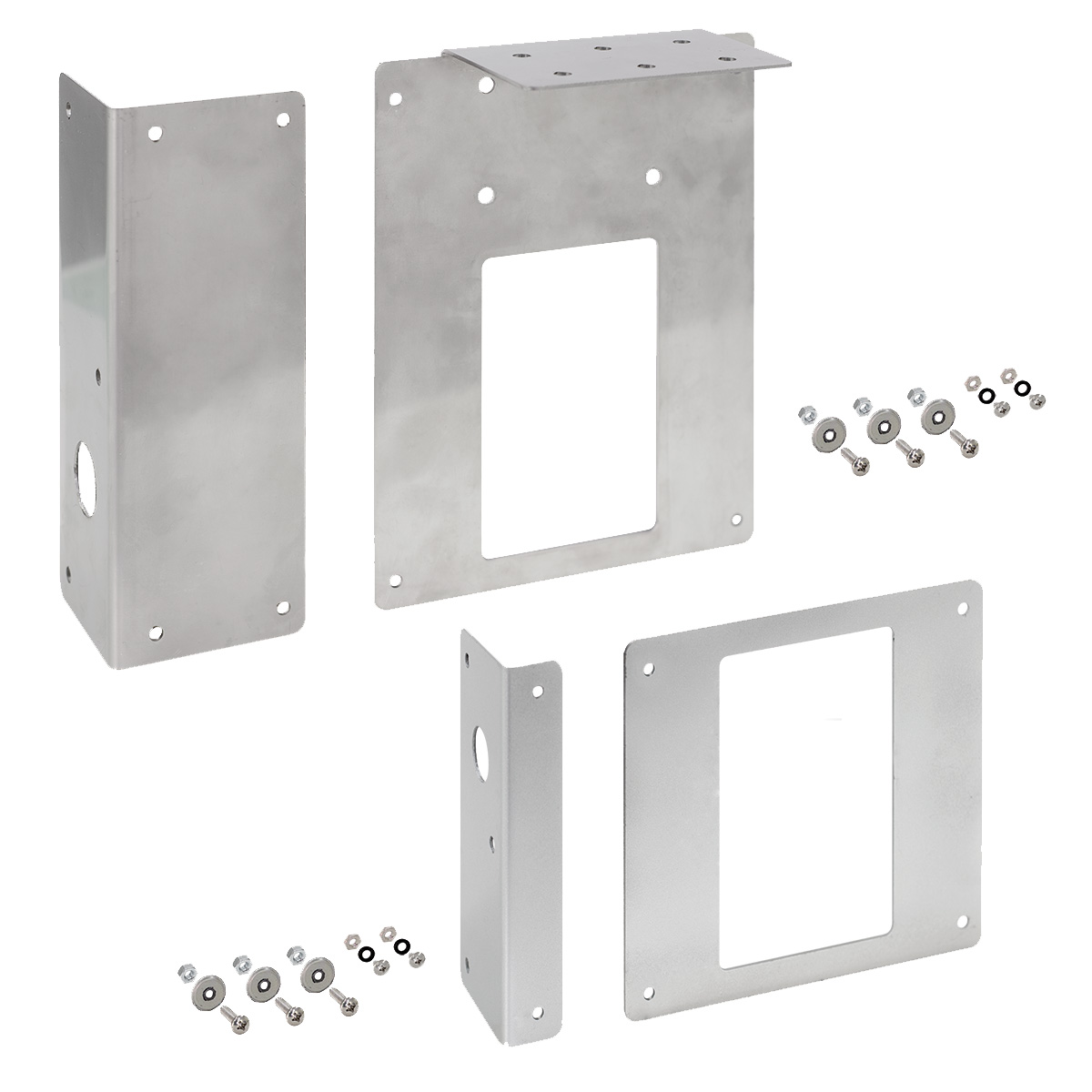

7500-ACC-BKT-*

7500 Series Control Unit mounting brackets. The 7500-ACC-BKT bracket provides easy installation of the 7500-01 control unit to an enclosure, with or without 5500-MAN manifold (not included).. Operatin...

7500 Series Control Unit mounting brackets. The 7500-ACC-BKT bracket provides easy installation of the 7500-01 control unit to an enclosure, with or without 5500-MAN manifold (not included).. Operating mode: For mounting 7500 control unit to enclosure or back panel. Series: 7500. System: Type Z Purge ; Ex pzc Purge. Hazardous environment: gas or dust. Degree of protection: Mounting type 4X / IP66 (Seeloc washers). Material: Bracket: 316 stainless steelPanel: 316 stainless steel Hardware, panel-to-enclosure (Bag 1)Bolts (3): 304 stainless steelWashers (3): Seeloc by APM Hexseal (P/N 75082 Buna-N)Nut: 304 stainless steelHardware, bracket-to-panel (Bag 2)Bolts (2): 304 stainless steelWashers (2): Hard fiberNuts (2): 304 stainless steel. Mass: 7500-ACC-BKT-NM 0.6 kg 7500-ACC-BKT-YM 1.3 kg. Dimensions: For bracket dimensions, see dimension drawing.Hardware, panel-to-enclosure (Bag 1)Bolts (3): ¼ x 20 x ¾"Washers (3): 1" (OD); 9.53mm (hole diameter)Nut: ¼" Hardware, bracket-to-panel (Bag 2)Bolts (2):5mm x 12mm button socketWashers (2): No 8Nut (2):5mm nyloc nut. Scope of delivery: One (1) each bracket and panel with mounting hardware included (Control unit and optional manifold are sold separately.)

Brand	Pepperl Fuchs
Lifecycle status	active
