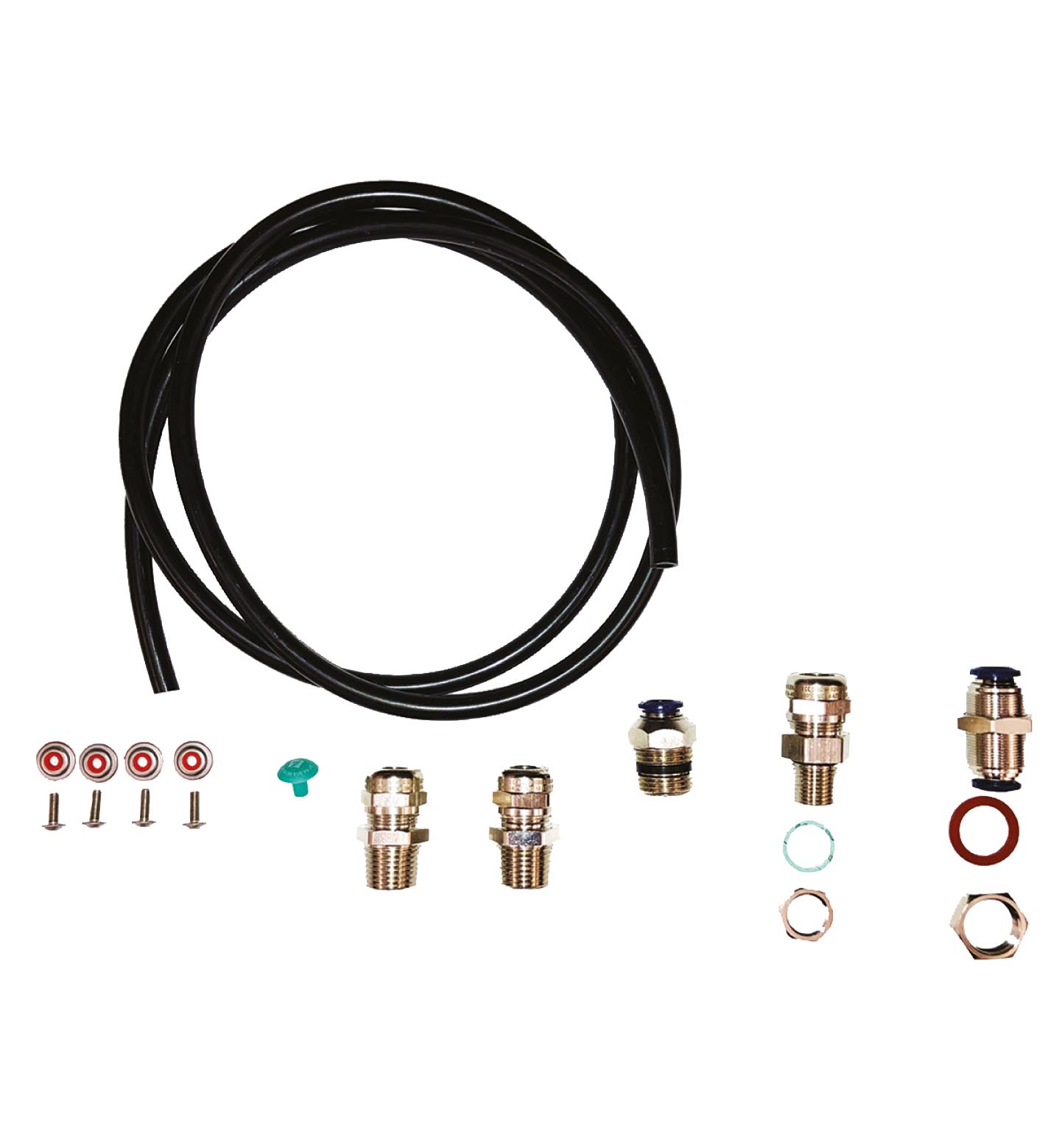

7500-ACC-KIT-01

7500 Series hardware fittings kit. Accessory kit for mounting, electrical, and pneumatic fittings for 7500-MTD control unit. Series: 7500. System: Type Z Purge ; Ex pzc Purge. Maximum pressure: Tube f...

7500 Series hardware fittings kit. Accessory kit for mounting, electrical, and pneumatic fittings for 7500-MTD control unit. Series: 7500. System: Type Z Purge ; Ex pzc Purge. Maximum pressure: Tube fitting: 0-120 psigBulkhead fitting:0-120 psig. Degree of protection: APM SEELOC 75041 washers: Type 4X and Type 6 enclosure protection. Material: Tube Fitting for Manifold (88000-06-08): Nickel-plated brassPoly Tubing: Polyester baseAPM SEELOC 75041 washers for mounting screws: 300 series stainless steel and silicone rubberBulkhead Fitting for Manifold Tubing (88050-06): Nickel-plated brassBulkhead fitting gasket (WA.FL.M20S): Aramid fibers bonded with NBR. Dimensions: Tube fitting for manifolds (88000-06-08):½" MNPT0.375" (9.5 mm)Poly TubingTube O.D: 0.375" (9.5 mm)Tube I.D.: 0.25" (6.4 mm)Length: 78" (2 m)APM SEELOC 75041 washersWasher O.D.: 12.7 mm (for M4 thread size)Max thru hole size: 6.35 mmBulkhead fittingHole size for enclosure: 20 mmTube size (for poly): 0.375" (9.5 mm)Bulkhead fitting washer (WA.FL.M20S)O.D.: 23.8 mmI.D.: 20.1 mmThickness: 1.5 mm. Scope of delivery: (2) Cable gland CG,NA.NPT1/2BN.C.16,BR.(1) Stopping plug BP.NA.M16-M20S.PA.GN(1) Cable bulkhead fitting CG.NA.M16.BN.C.16.K01(1) ½" to 3/8" Tube fitting for manifold (88000-06-08) 3/8" poly tubing (4 feet)(4) APM SEELOC 75041 mounting washers(4) M4 L=12 mm mounting screws for 7500-MTD(1) WA.FL.M205 washer for pneumatic bulkheadAssembly drawing 110-5128(x)

Brand	Pepperl Fuchs
Lifecycle status	active
