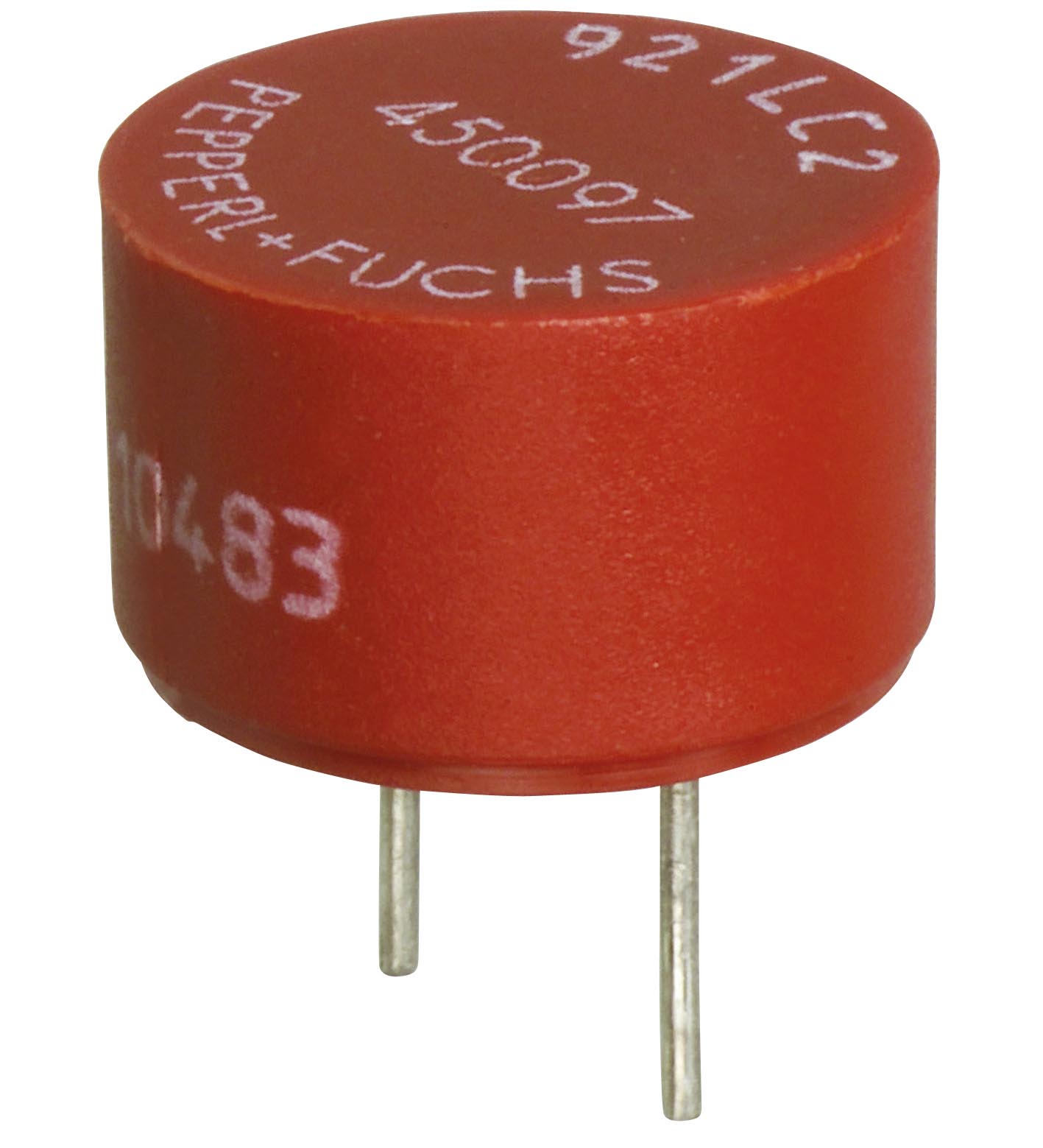

921LC2

Inductive sensor. Switching function: Normally closed (NC), Output type: NAMUR, Installation: flush, Output type: 2-wire, Construction type: Cylindrical, flat, Series: Cylindrical type, Type of voltag...

Inductive sensor. Switching function: Normally closed (NC), Output type: NAMUR, Installation: flush, Output type: 2-wire, Construction type: Cylindrical, flat, Series: Cylindrical type, Type of voltage: DC, Connection type: Solder connection, Housing material: PA, Degree of protection: IP67. Switching function: Normally closed (NC). Output type: NAMUR. Rated operating distance: 2 mm. Installation: flush. Assured operating distance: 0 ... 1.62 mm. Output type: 2-wire. Nominal voltage: 8.2 V. Operating voltage: 5 ... 15 V. Switching frequency: 0 ... 1000 Hz. Current consumption: . Measuring plate not detectedmin. 2.7 mAMeasuring plate detected≤ 1.8 mA: . Measuring plate not detected: min. 2.7 mA. Measuring plate detected: ≤ 1.8 mA. Standard conformity: . NAMUREN 60947-5-6:2000StandardsEN IEC 60947-5-2: . NAMUR: EN 60947-5-6:2000. Standards: EN IEC 60947-5-2. CCC approval: CCC approval / marking not required for products rated ≤36 V. Ambient temperature: -10 ... 65 °C (14 ... 149 °F). Connection type: Solder connection. Housing material: PA. Sensing face: PA. Degree of protection: IP67. Dimensions: . Length6.5 mmDiameter10 mm: . Length: 6.5 mm. Diameter: 10 mm

Brand	Pepperl Fuchs
Lifecycle status	active
