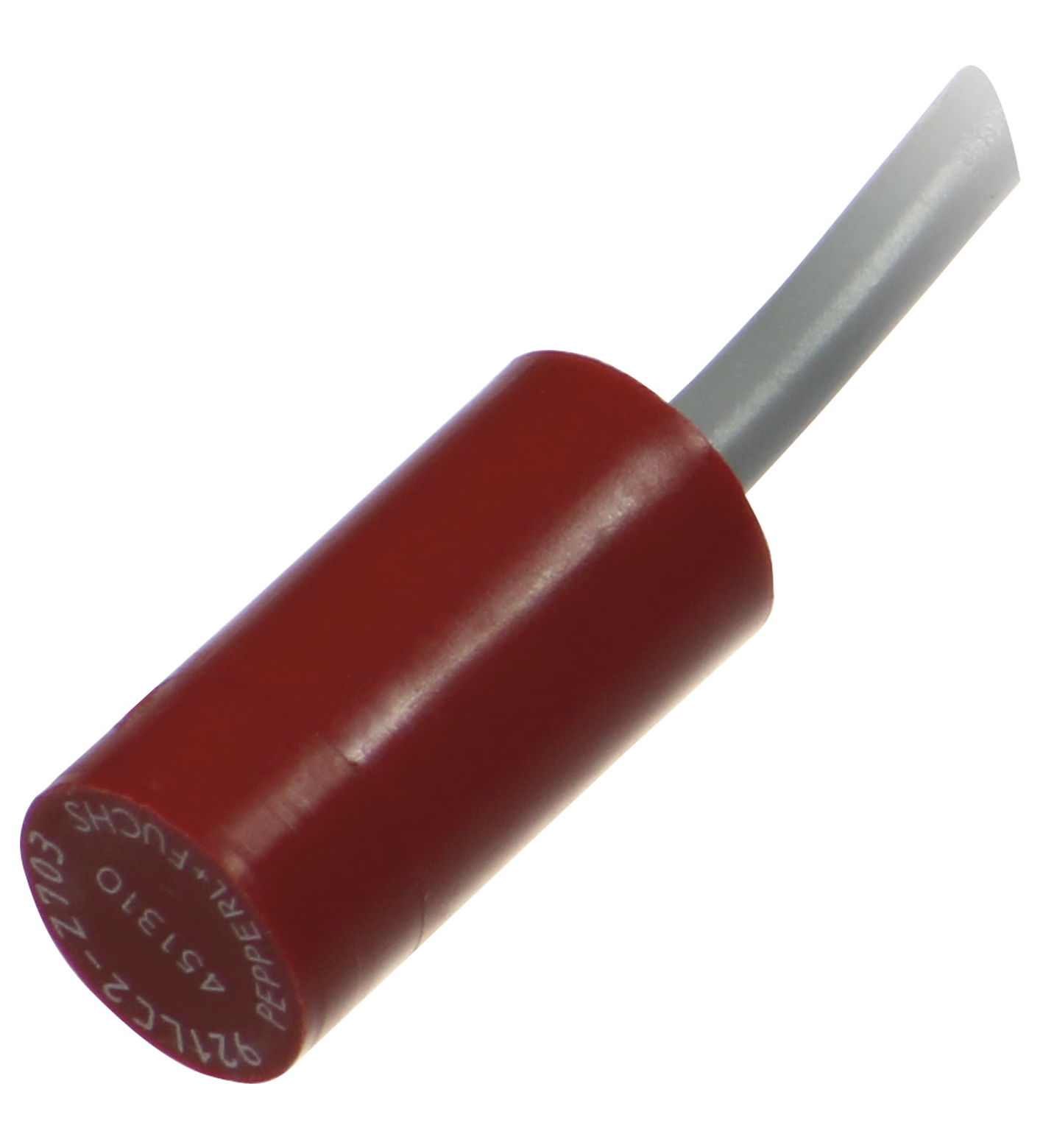

921LC2-Z703

Inductive sensor. Switching function: Normally closed (NC), Output type: NAMUR, Installation: flush, Output type: 2-wire, Construction type: Cylindrical, flat, Series: Cylindrical type, Type of voltag...

Inductive sensor. Switching function: Normally closed (NC), Output type: NAMUR, Installation: flush, Output type: 2-wire, Construction type: Cylindrical, flat, Series: Cylindrical type, Type of voltage: DC, Connection type: cable, Housing material: PA, Degree of protection: IP67, Material: PVC. Switching function: Normally closed (NC). Output type: NAMUR. Rated operating distance: 2 mm. Installation: flush. Assured operating distance: 0 ... 1.62 mm. Output type: 2-wire. Nominal voltage: 8.2 V. Switching frequency: 0 ... 1000 Hz. Hysteresis: typ. %. Current consumption: . Measuring plate not detectedmin. 3 mAMeasuring plate detected≤ 1 mA: . Measuring plate not detected: min. 3 mA. Measuring plate detected: ≤ 1 mA. Standard conformity: . NAMUREN 60947-5-6:2000StandardsEN IEC 60947-5-2: . NAMUR: EN 60947-5-6:2000. Standards: EN IEC 60947-5-2. CCC approval: CCC approval / marking not required for products rated ≤36 V. Ambient temperature: -10 ... 65 °C (14 ... 149 °F). Connection type: cable. Housing material: PA. Degree of protection: IP67. Cable: . Wire end ferrulesyesCable diameter3 mm ± 0.2 mmBending radius> 10 x cable diameterMaterialPVCColorgreyNumber of cores2Core cross section0.14 mm2LengthL0.8 m: . Wire end ferrules: yes. Cable diameter: 3 mm ± 0.2 mm. Bending radius: > 10 x cable diameter. Material: PVC. Color: grey. Number of cores: 2. Core cross section: 0.14 mm2. Length: 0.8 m. Dimensions: . Length20 mmDiameter10 mm: . Length: 20 mm. Diameter: 10 mm

Brand	Pepperl Fuchs
Lifecycle status	active
