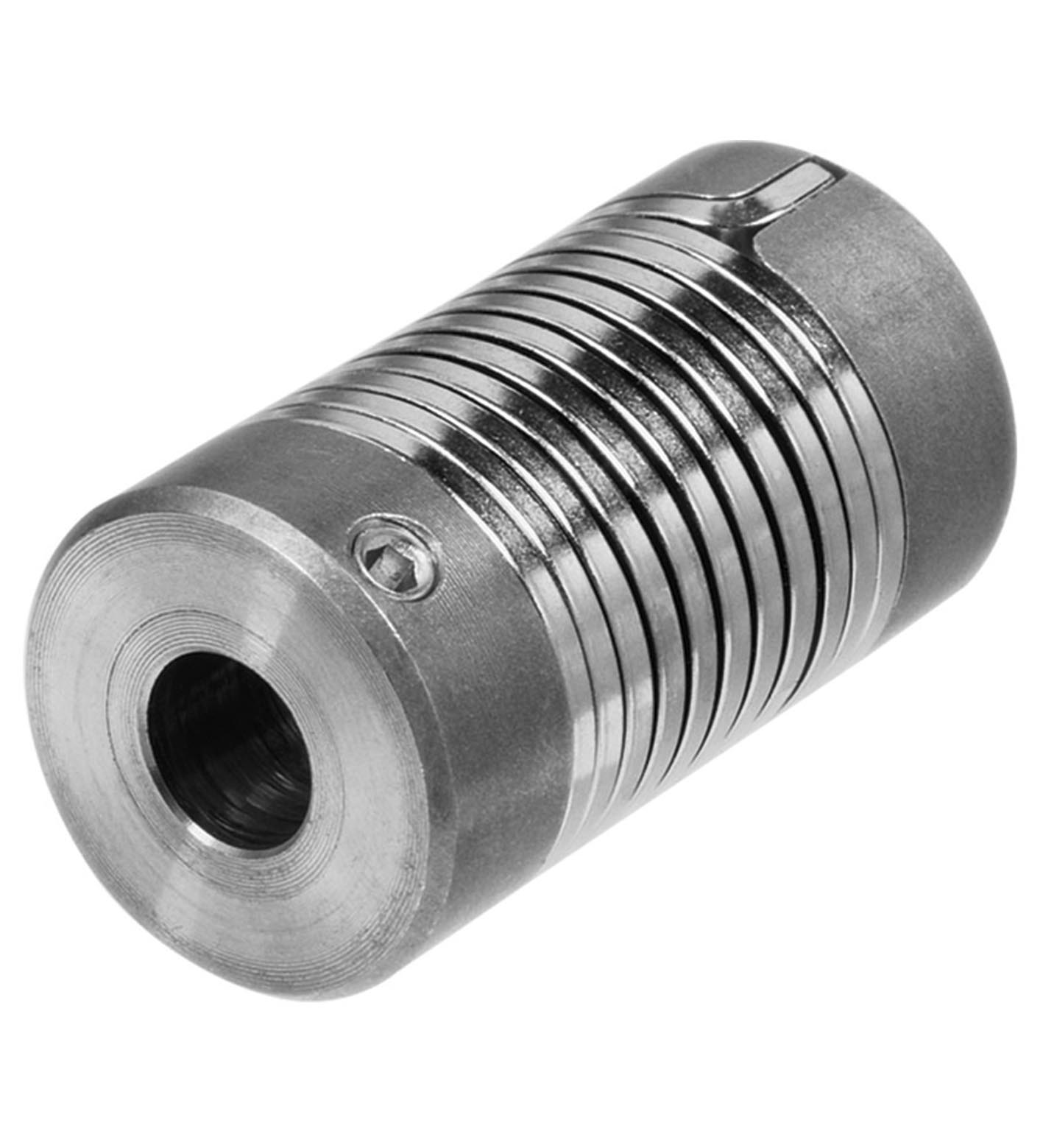

9401 10*12,7

Coupling. Spring steel coupling, Universally suitable for backlash-free rotation transmission, Highly vibration-isolating, Well misalignment compensation, Low torsion spring stiffness, Small reset for...

Coupling. Spring steel coupling, Universally suitable for backlash-free rotation transmission, Highly vibration-isolating, Well misalignment compensation, Low torsion spring stiffness, Small reset forces. Operating temperature: -30 ... 120 °C (-22 ... 248 °F). Shaft diameter: d1 = 10 mm , d2 = 12.7 mm. Material: . Springspring steel, nickel platedEnd pieceDiecast zinc: . Spring: spring steel, nickel plated. End piece: Diecast zinc. Mass: 100 g. Rotational speed: max. 3000 min. Max. torque: 1.5 Nm. Tightening torque, fastening screws: 1.2 Nm. Radial offset: max. ± 1.5 mm. Axial offset: max. ± 1 mm. Angle error: max. ± 5 °. Torsion angle: at torque 0.75 Nm drive shaft view. CW rotation direction40 °CCW rotation direction60 °: . CW rotation direction: 40 °. CCW rotation direction: 60 °. Moment of inertia: 95 kg m2 x 10-7. Mounting: clamp screws M5 x 6, DIN 916. Tightening torque of clamping screws: max. 3 Nm

Brand	Pepperl Fuchs
Lifecycle status	active
