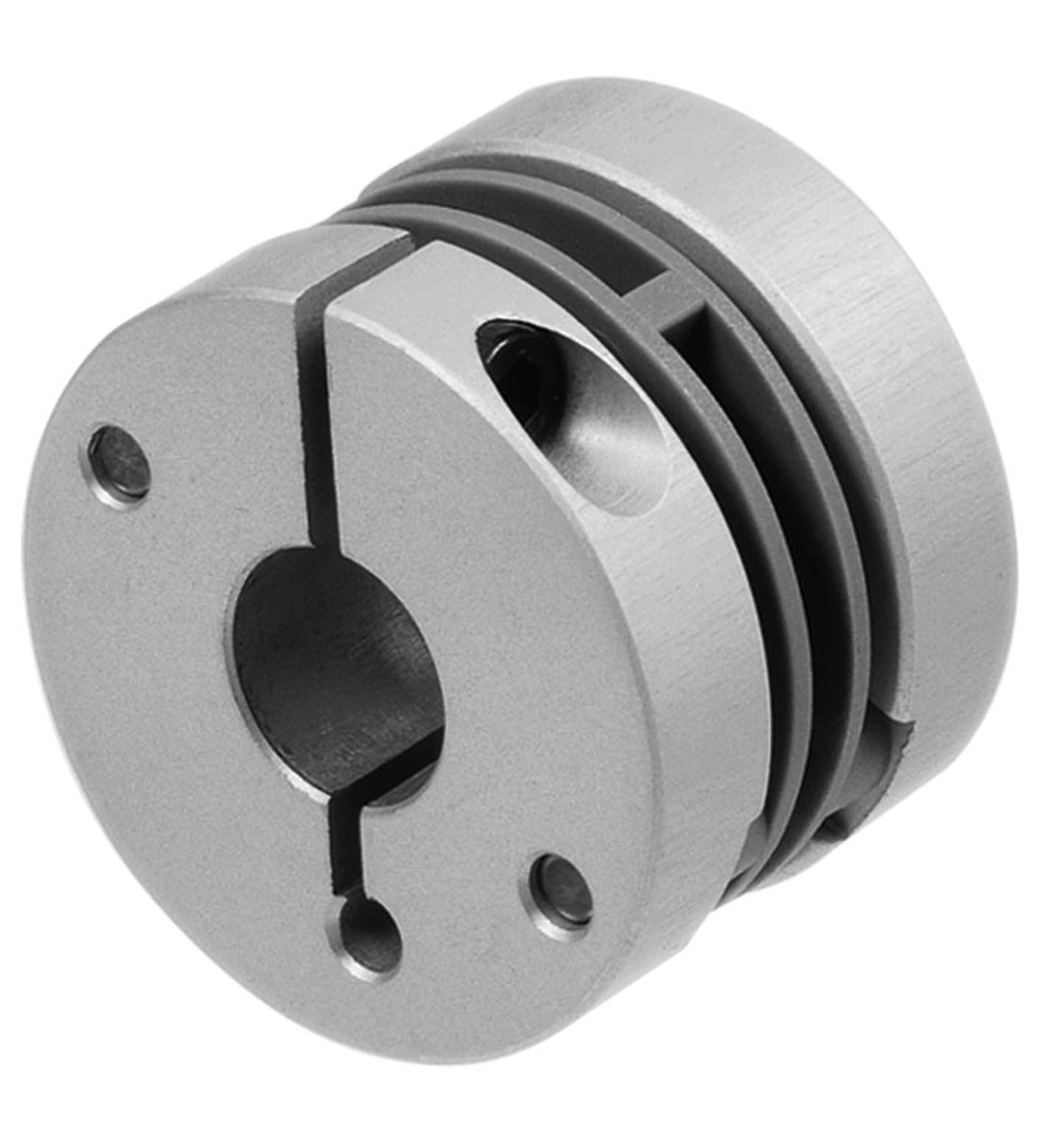

9404 6*6

Coupling. Spring disk coupling, Very high torsion spring stiffness, Suitable up to 12.000 rpm, Well misalignment compensation, Vibration- isolating, Electrically insulating. Shaft diameter: d1 = 6 mm...

Coupling. Spring disk coupling, Very high torsion spring stiffness, Suitable up to 12.000 rpm, Well misalignment compensation, Vibration- isolating, Electrically insulating. Shaft diameter: d1 = 6 mm , d2 = 6 mm. Material: . FlangeAluminumSpring washersplastic: . Flange: Aluminum. Spring washers: plastic. Mass: approx. 28 g. Rotational speed: max. 12000 min -1. Max. torque: 0.6 Nm. Radial offset: max. ± 0.3 mm. Axial offset: max. ± 0.4 mm. Angle error: max. ± 2.5 °. Torsional rigidity: 50 Nm / rad. Mounting: clamping flange

Brand	Pepperl Fuchs
Lifecycle status	active
