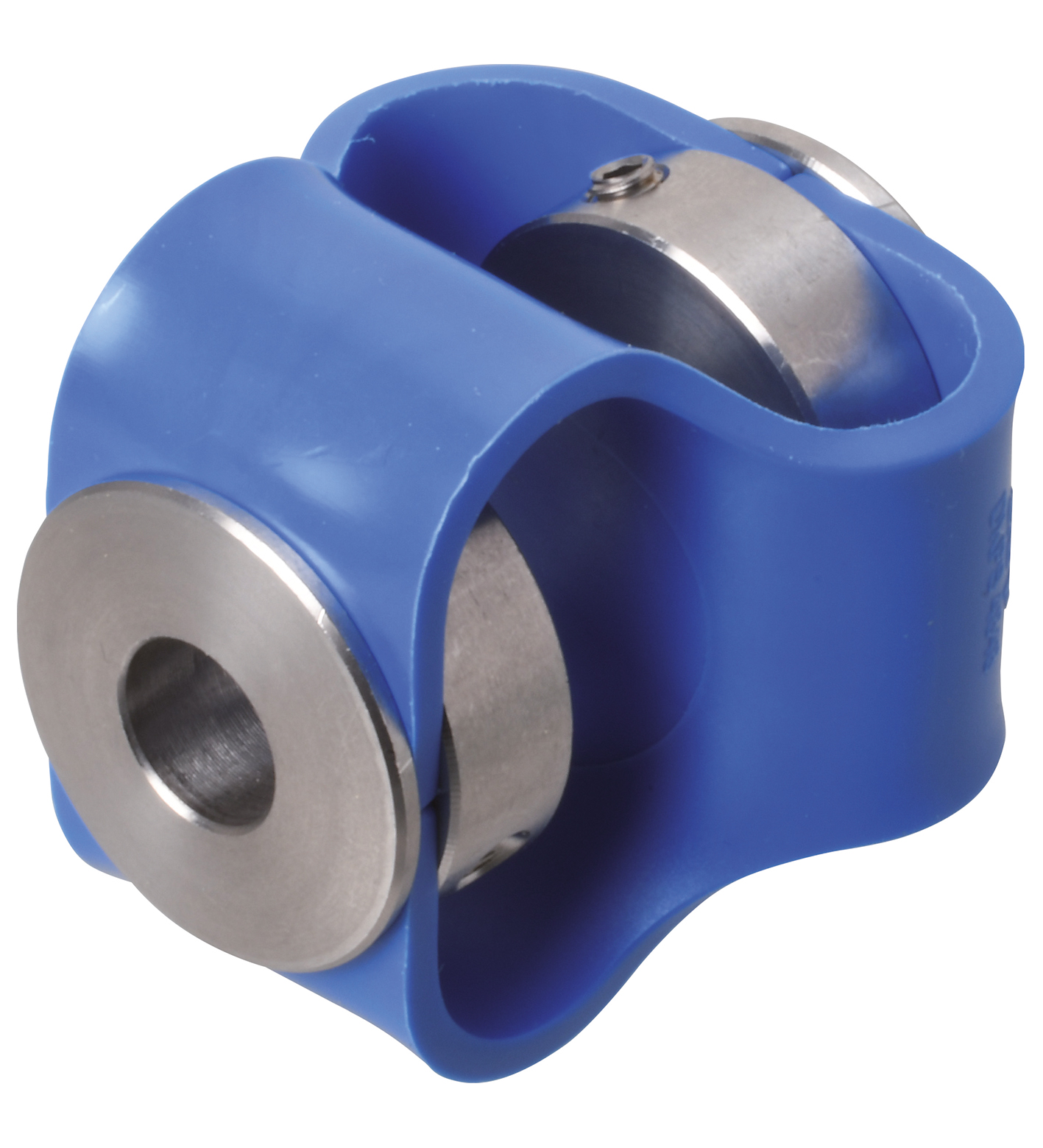

9408 10*10

Coupling. Double loop coupling 10 x 10, Average torsional rigidity, Small reset forces, Shock- and vibration-absorbing, Thermally and electrically insulating, Very good compensation of radial, lateral...

Coupling. Double loop coupling 10 x 10, Average torsional rigidity, Small reset forces, Shock- and vibration-absorbing, Thermally and electrically insulating, Very good compensation of radial, lateral and angular misalignments. Operating temperature: -30 ... 80 °C (-22 ... 176 °F). Shaft diameter: 10 mm. Material: . FastenerPolyurethaneEnd pieceZinc plated steel: . Fastener: Polyurethane. End piece: Zinc plated steel. Mass: 85 g. Rotational speed: max. 3000 min. Max. torque: 2 Nm. Radial offset: max. ± 3 mm. Axial offset: max. ± 4 mm. Angle error: max. ± 12 °. Torsion spring stiffness: 28 Nm / rad. Radial spring stiffness: 7 N / mm. Moment of inertia: 106 kg m2 x 10-7. Mounting: clamp screws M4 x 6, DIN 916. Tightening torque of clamping screws: max. 1 Nm

Brand	Pepperl Fuchs
Lifecycle status	active
