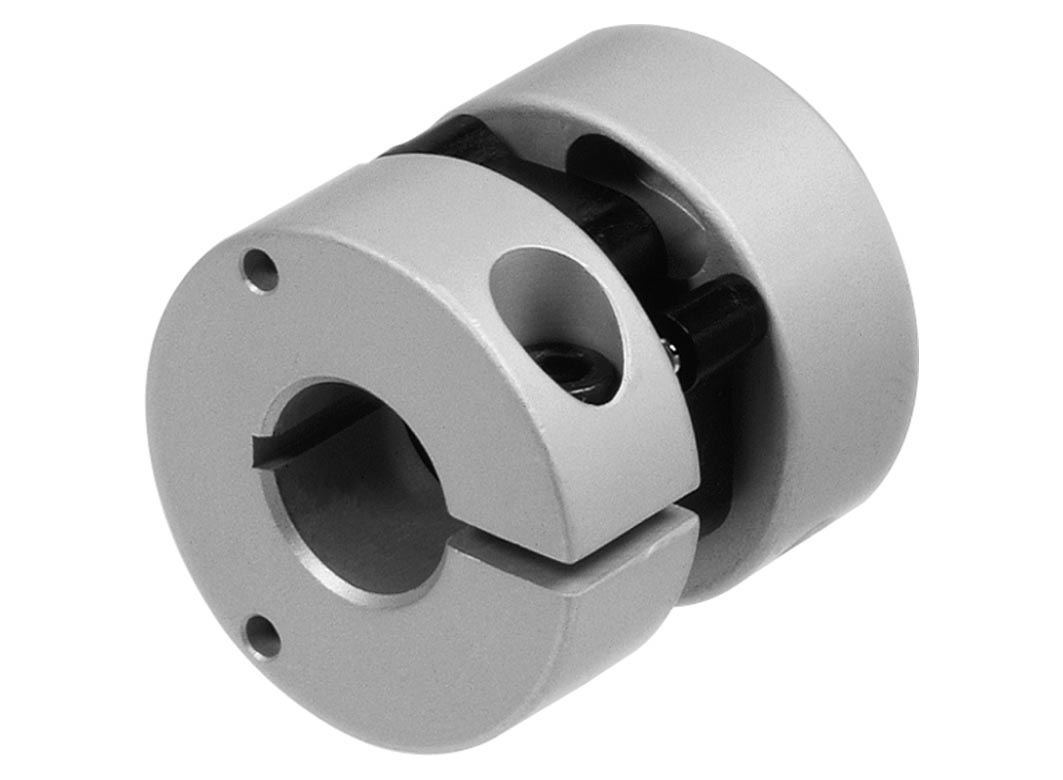

9410 10*10

Coupling. Precision coupling, Precision coupling. Shaft diameter: d1 = 10 mm , d2 = 10 mm. Material: Delrin 107, AlMgSi1, hard coated. Mass: 25 g. Rotational speed: max. 15000 min -1. Max. torque: 1 N...

Coupling. Precision coupling, Precision coupling. Shaft diameter: d1 = 10 mm , d2 = 10 mm. Material: Delrin 107, AlMgSi1, hard coated. Mass: 25 g. Rotational speed: max. 15000 min -1. Max. torque: 1 Nm. Tightening torque, fastening screws: 1.3 Nm. Radial offset: max. ± 0.5 mm. Axial offset: max. ± 0.3 mm. Angle error: max. ± 1.5 °. Torsional rigidity: 50 Nm / rad. Moment of inertia: 20 kg m2 x 10-7. Mounting: clamping flange

Brand	Pepperl Fuchs
Lifecycle status	active
